Trunk Closure Sub-Control Unit

TRUNK CLOSURE SUB-CONTROL UNIT

Reference Value

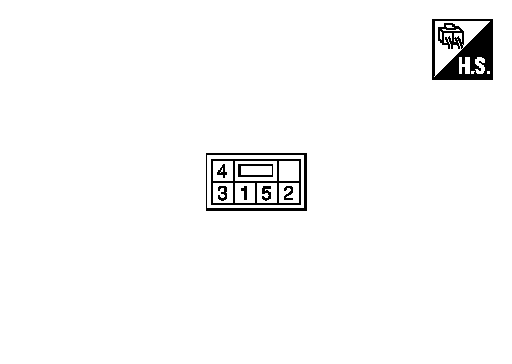

TERMINAL LAYOUT

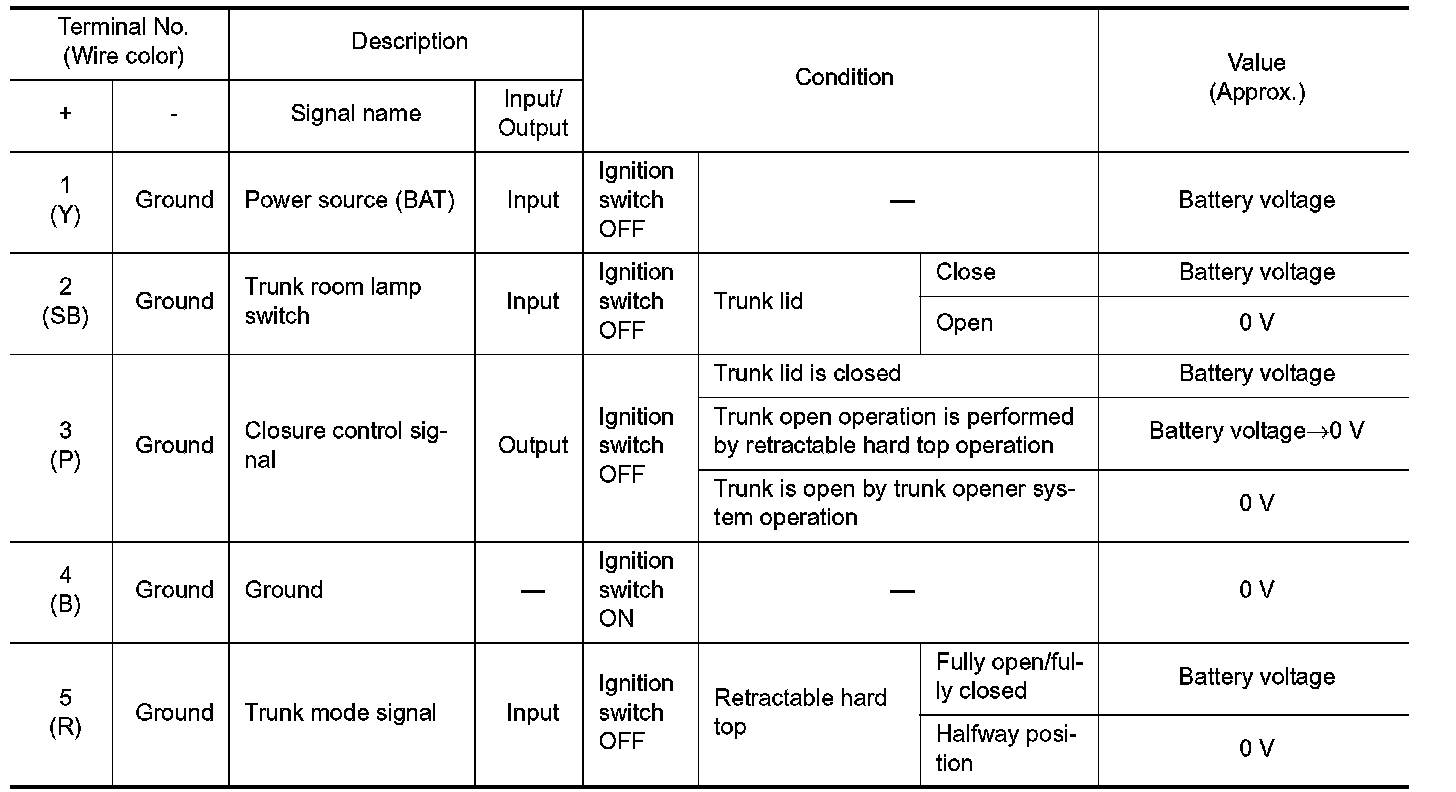

PHYSICAL VALUES
