Retractable Hard Top Control Unit





RETRACTABLE HARD TOP CONTROL UNIT


Fail-safe


FAIL-SAFE CONTROL BY DTC
Retractable hard top control unit performs fail-safe control when any DTC are detected.

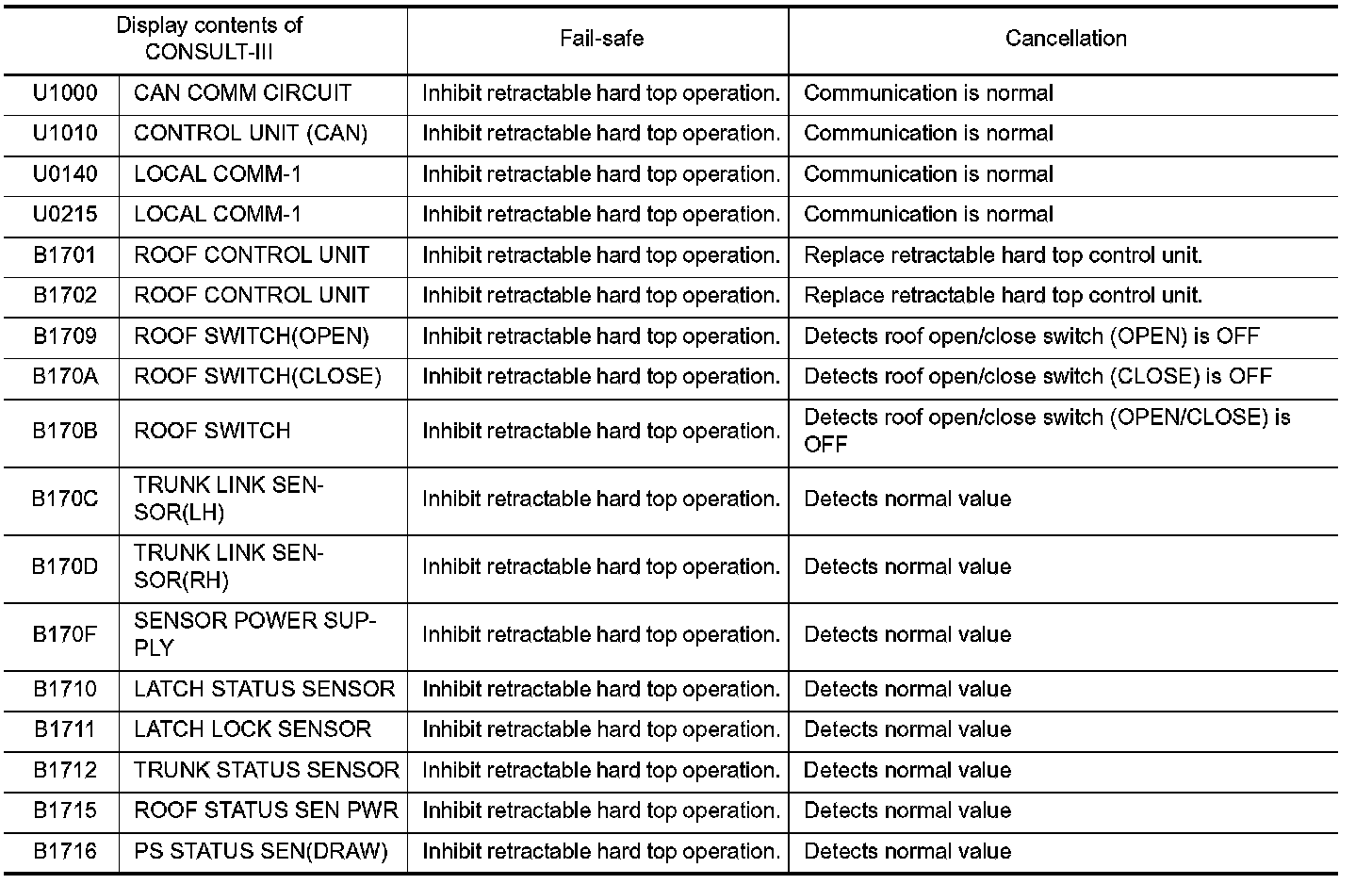

Fail-Safe Chart (Part 1):

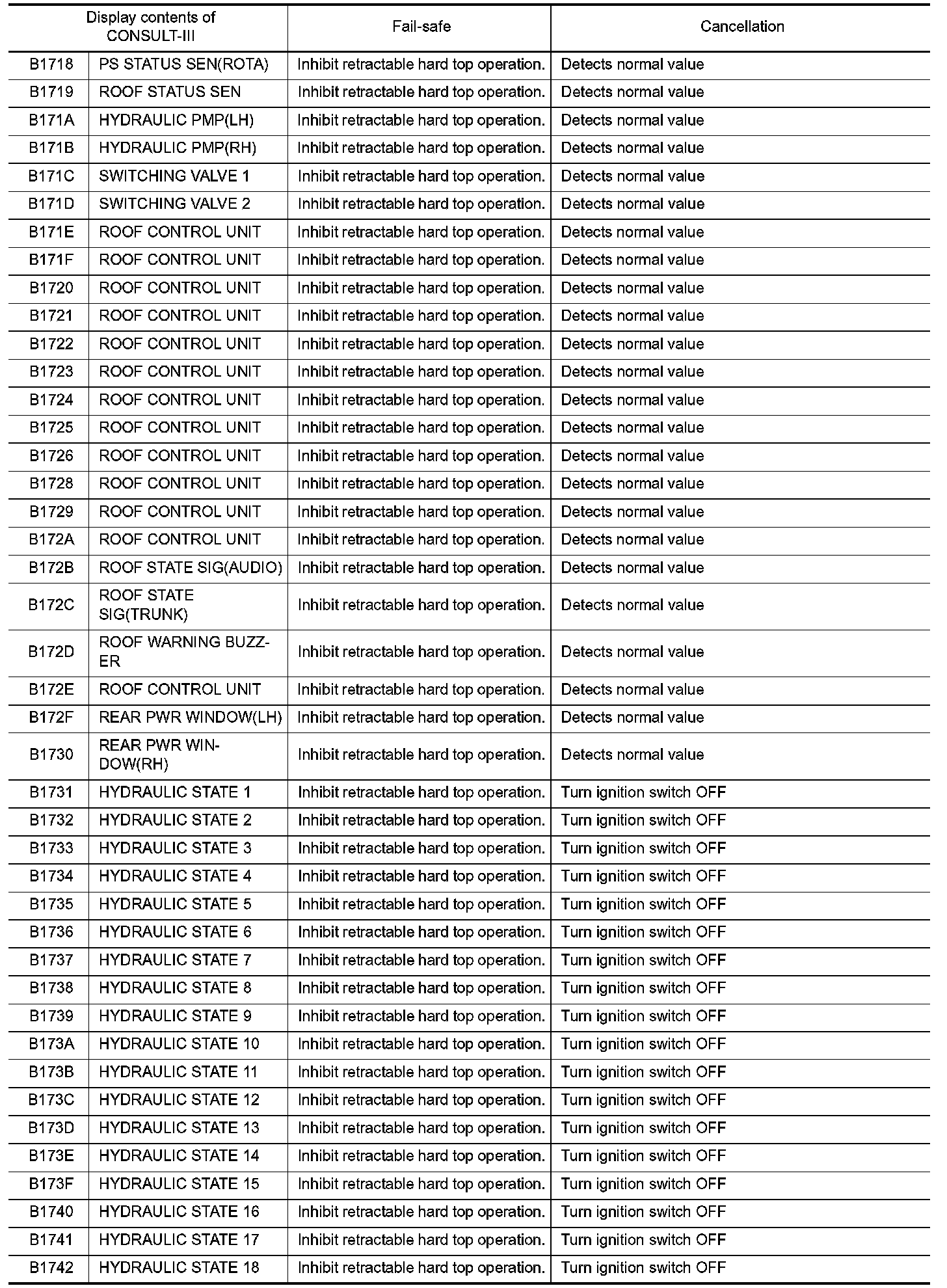

Fail-Safe Chart (Part 2):






Fail-Safe Chart (Part 3):
