Flipper Door Limit Switch

FLIPPER DOOR LIMIT SWITCH


Diagnosis Procedure

1.CHECK FUNCTION
1. Turn ignition switch ON.

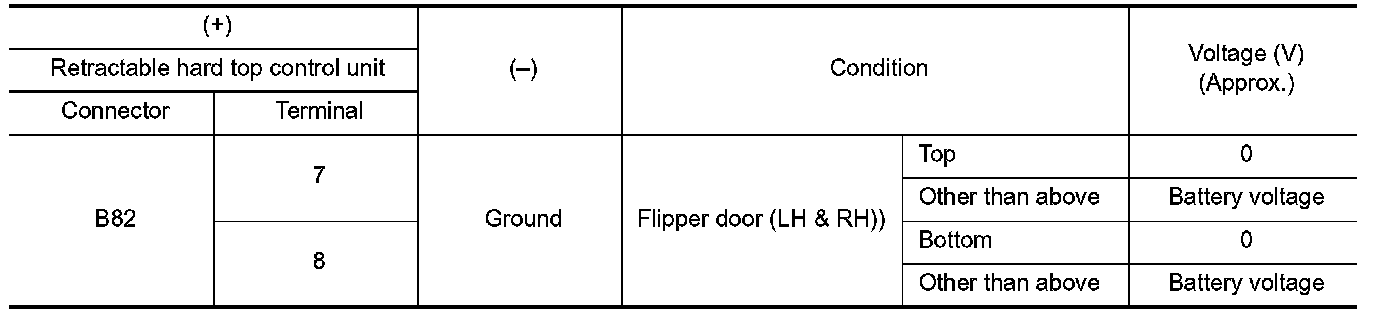

2. Check the voltage between retractable hard top control unit terminals and ground under the following conditions.





Is the inspection result normal?
YES - INSPECTION END
NO - GO TO 2.
2.CHECK FLIPPER DOOR LIMIT SWITCH POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF.
2. Disconnect flipper door (LH) harness connector.
3. Turn ignition switch ON.

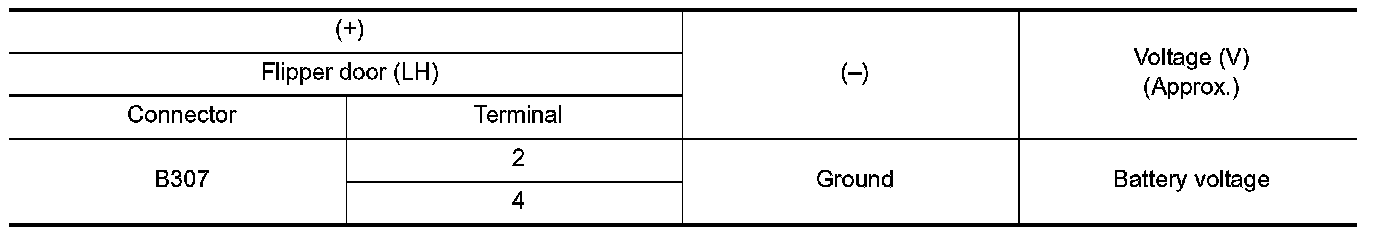

4. Check the voltage between flipper door (LH) harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - Repair or replace harness.
3.CHECK FLIPPER DOOR LIMIT SWITCH POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Reconnect flipper door (LH) harness connector.
3. Disconnect flipper door (RH) harness connector.
4. Turn ignition switch ON.

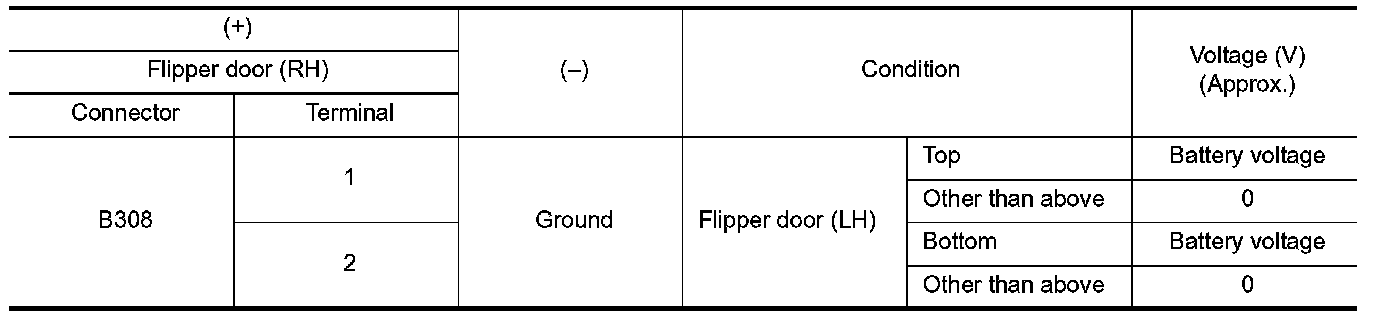

5. Check the voltage between flipper door (RH) harness connector and ground under the following conditions.





Is the inspection result normal?
YES - GO TO 5.
NO - GO TO 4.
4.CHECK FLIPPER DOOR LIMIT SWITCH POWER SUPPLY CIRCUIT-III
1. Turn ignition switch OFF.
2. Disconnect flipper door (LH) harness connector.

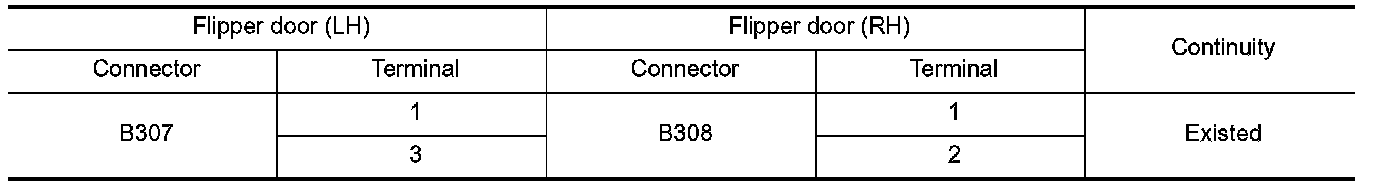

3. Check the continuity between flipper door (LH) harness connector and flipper door (RH) harness connector.





4. Check harness for short to ground and short to power.
Is the inspection result normal?
YES - Replace flipper door (LH). Convertible Top.
NO - Repair or replace harness.
5.CHECK FLIPPER DOOR LIMIT SWITCH GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect flipper door (RH) harness connector.
3. Disconnect retractable hard top control unit harness connector.

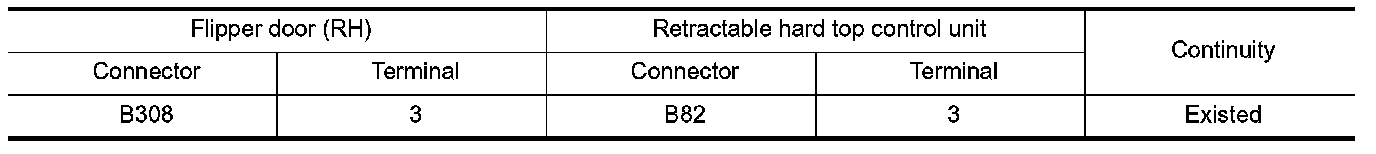

4. Check the continuity between flipper door (RH) harness connector and retractable hard top control unit harness connector.





5. Check harness for short to short to power.
Is the inspection result normal?
YES - GO TO 6.
NO - Repair or replace harness.
6.REPLACE FLIPPER DOOR (RH)
Replace flipper door (RH). Convertible Top.
Is the inspection result normal?
YES - INSPECTION END
NO - GO TO 7.
7.REPLACE RETRACTABLE HARD TOP CONTROL UNIT
1. Replace retractable hard top control unit. Convertible Top.
2. Work Procedure.
Is the inspection result normal?
YES - INSPECTION END
NO - GO TO 8.
8.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END
