Removal and Installation

RETRACTABLE HARD ROOF ASSEMBLY


Removal and Installation


REMOVAL

CAUTION:
- Protect the rear fender with a fender protector.
- Take all precaution to avoid any interference between the retractable hard top and the body.
- Never bend or twist hydraulic hoses sharply, or strongly pull them.
- After installation, hydraulic hoses must not move towards self-locking bands.
- Never let the ends of self-locking bands touch hydraulic hoses.

NOTE:
Operate roof manually if it does not operate electrically. .
1. Roof is fully open.
2. Remove rear seat cushion and seatback. Removal and Installation.
3. Remove rear side finisher. Removal and Installation.
4. Remove trunk lid trim. Removal and Installation.
5. Remove rear parcel shelf finisher board. Removal and Installation.
6. Roof is fully close.
7. Remove trunk lid assembly. Removal and Installation.
8. Remove trunk room trim. Removal and Installation.
9. Perform unlock operation of roof lock assembly in WORK SUPPORT of CONSULT-III. Scan Tool Testing and Procedures
10. Remove hydraulic unit, hose clamp and trunk drive cylinder. Removal and Installation.

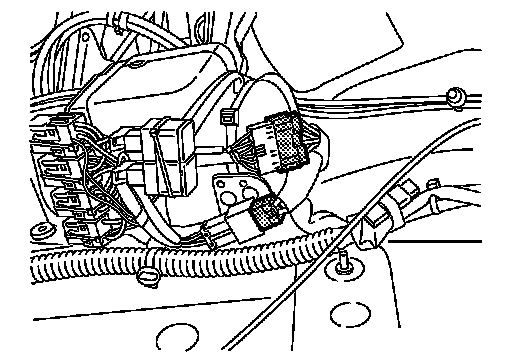

11. From passenger roof side, disconnect harness connector. (LH side only)

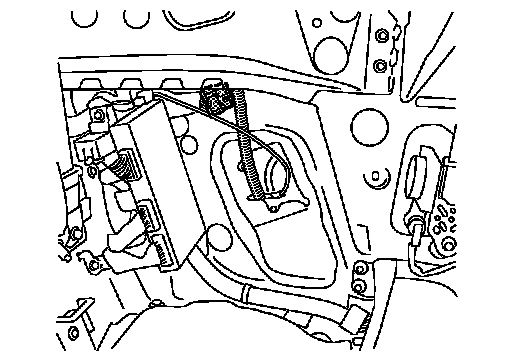

12. Disconnect hydraulic unit harness connector.
13. Remove roof link assembly mounting nuts. Removal and Installation
14. Lift roof assembly and hydraulic unit assembly simultaneously, and then remove them from the vehicle in the rear direction.

CAUTION:
This operation requires five people.

INSTALLATION
Install in the reverse order of removal.

CAUTION:
- Never bend or twist hydraulic hoses sharply, or strongly pull them.
- After installation, hydraulic hoses must not move towards self-locking bands.
- Never let the ends of self-locking bands touch hydraulic hoses.

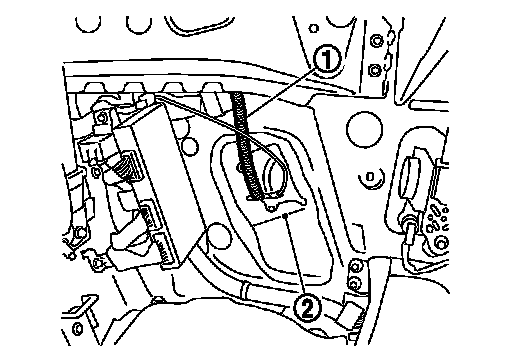

- Insert lower end of drain tube (1) to the hole of sealing screen
(2) through the vehicle body.

NOTE:
- Perform initialization according to the work after installing retractable hard roof assembly. Description.
- Adjust door glass and quarter window glass. Procedures.
- Perform water leakage test. Water Leakage Test.
