Front Roof Panel

FRONT ROOF PANEL


Adjustment

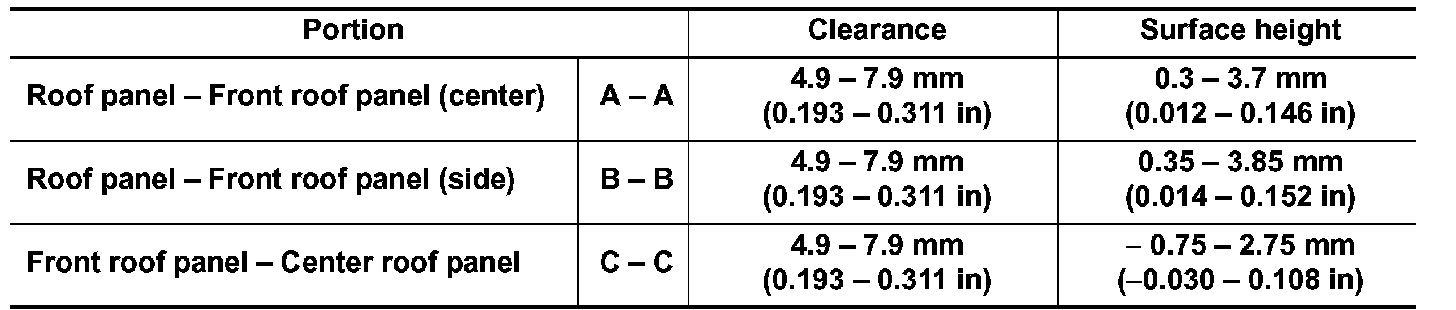

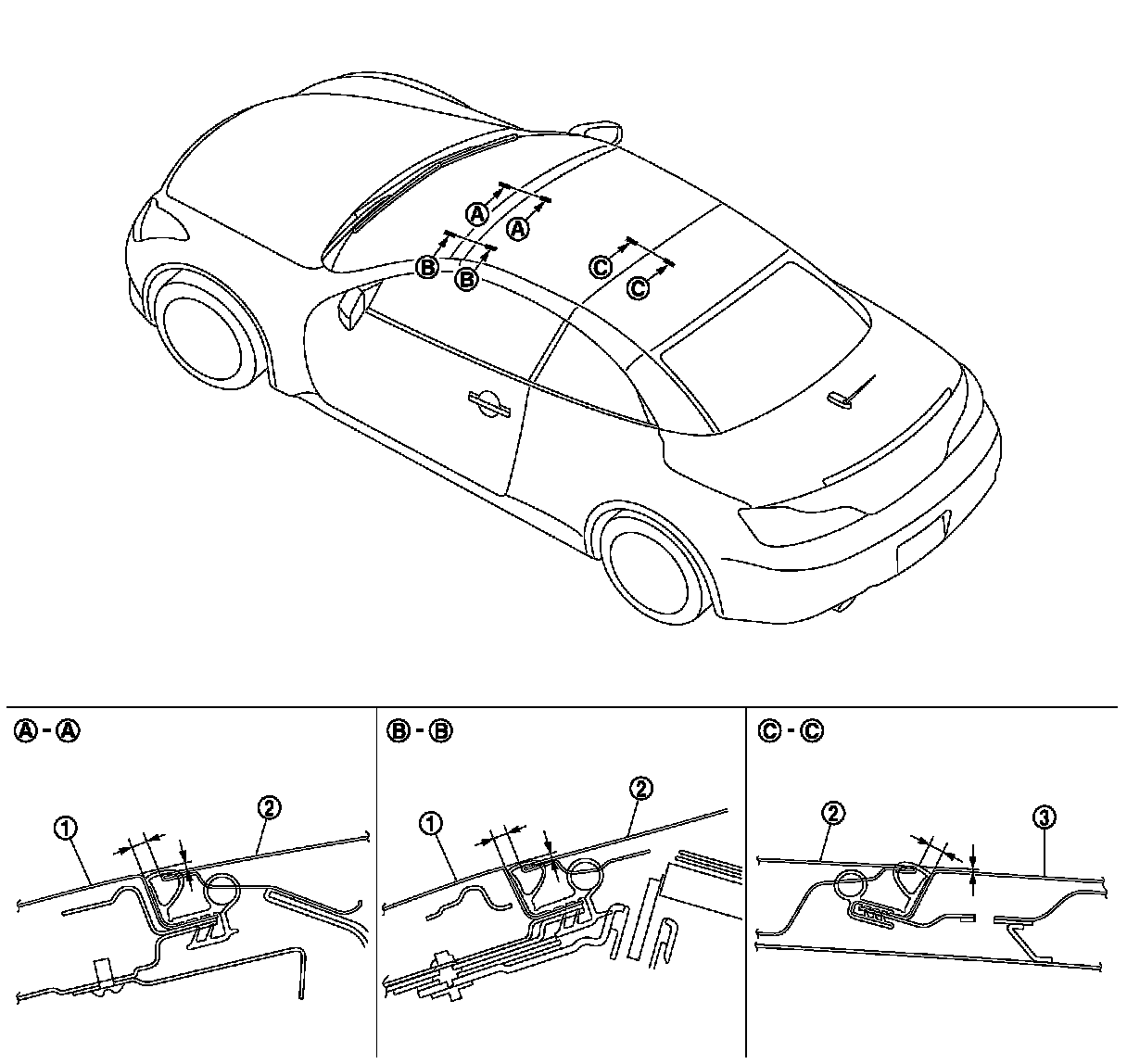

Check the clearance and the surface height between front roof panel and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures shown below.

CAUTION:
Fully close roof. Check that front and rear lock is locked.






1. Remove headlining. Removal and Installation.

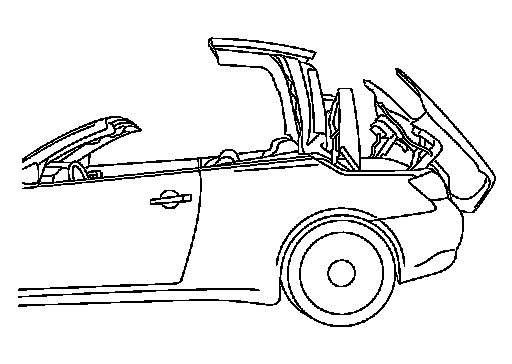

2. Stop roof as shown in the figure (during open operation).

CAUTION:
Be careful of the roof and rear parcel shelf unit positions when operating, because roof may drop little by little and may interfere with rear parcel shelf unit when roof is in the middle position for a long period of time.
3. Loosen front roof panel mounting TORX bolt.
4. Adjust front roof panel.
- If surface height difference is out of the specified value, and then adjust using shims.
- If clearance is out of the specified value, and slide front roof panel to front or rear direction.
5. Tighten each TORX bolt to the specified torque. Exploded View.

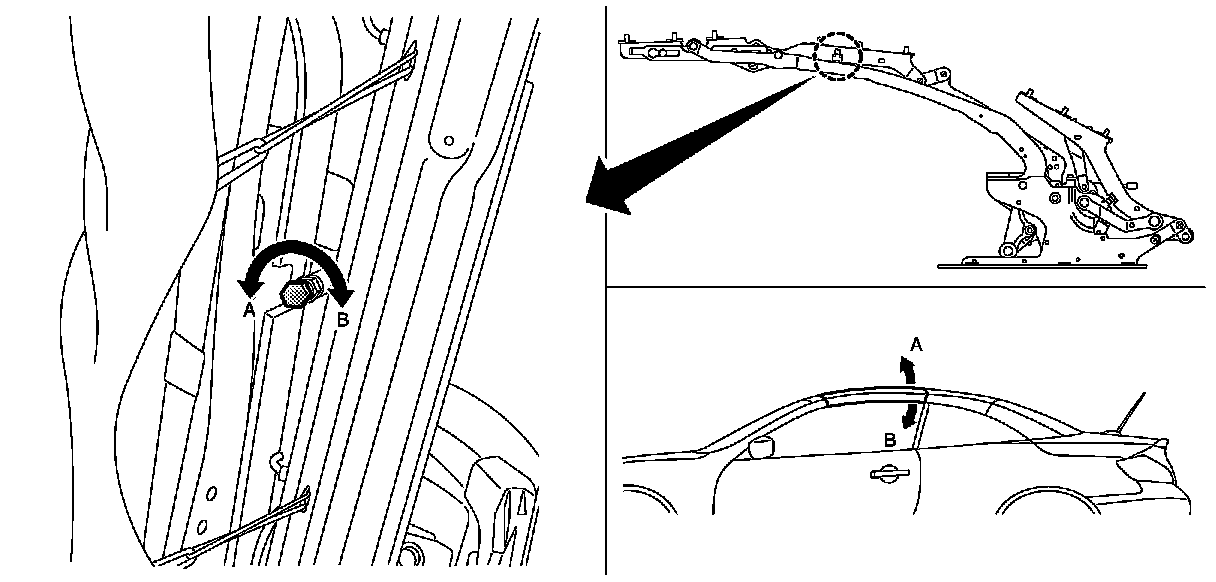

6. If shim adjustment is not completed normally, rotate the adjusting bolt of roof link assembly and adjust front roof panel inclination.






CAUTION:

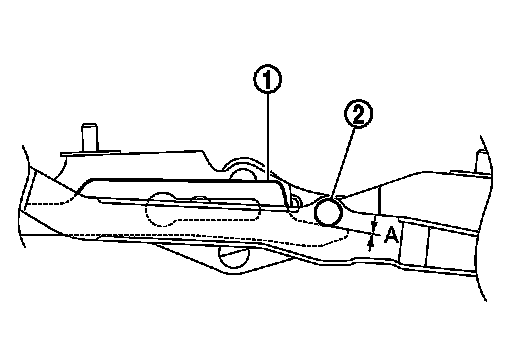

Adjust the adjusting bolt so that no clearance (A) and looseness are left between slider (1) and pin (2) when roof is fully closed.
7. If C � C is out of the specified value, adjust center roof panel. Center Roof Panel.
8. Open and close roof. Check that lock and unlock operation is normal several times.
9. Perform initialization according to the work after adjusting front roof panel. Description.
10. Adjust door glass and quarter window glass. Procedures.
11. Perform water leakage test. Water Leakage Test.
12. Install headlining. Removal and Installation.
