Center Roof Panel

CENTER ROOF PANEL


Adjustment

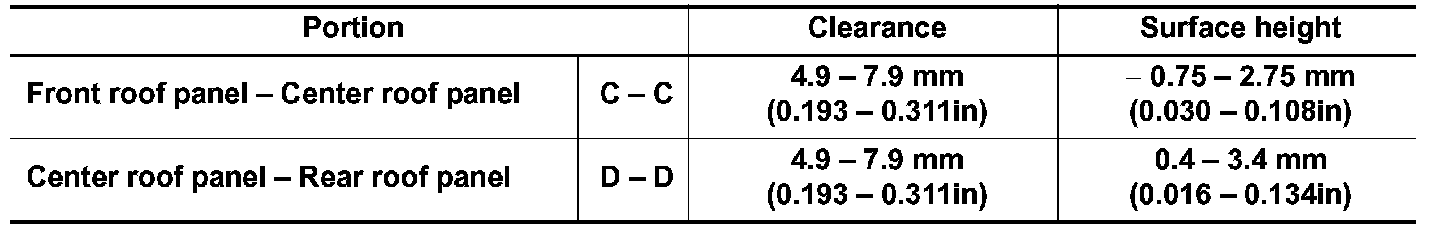

Check the clearance and the surface height between center roof panel and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures shown below.

CAUTION:
Fully close roof. Check that front and rear lock is locked.






1. Remove headlining. Removal and Installation.

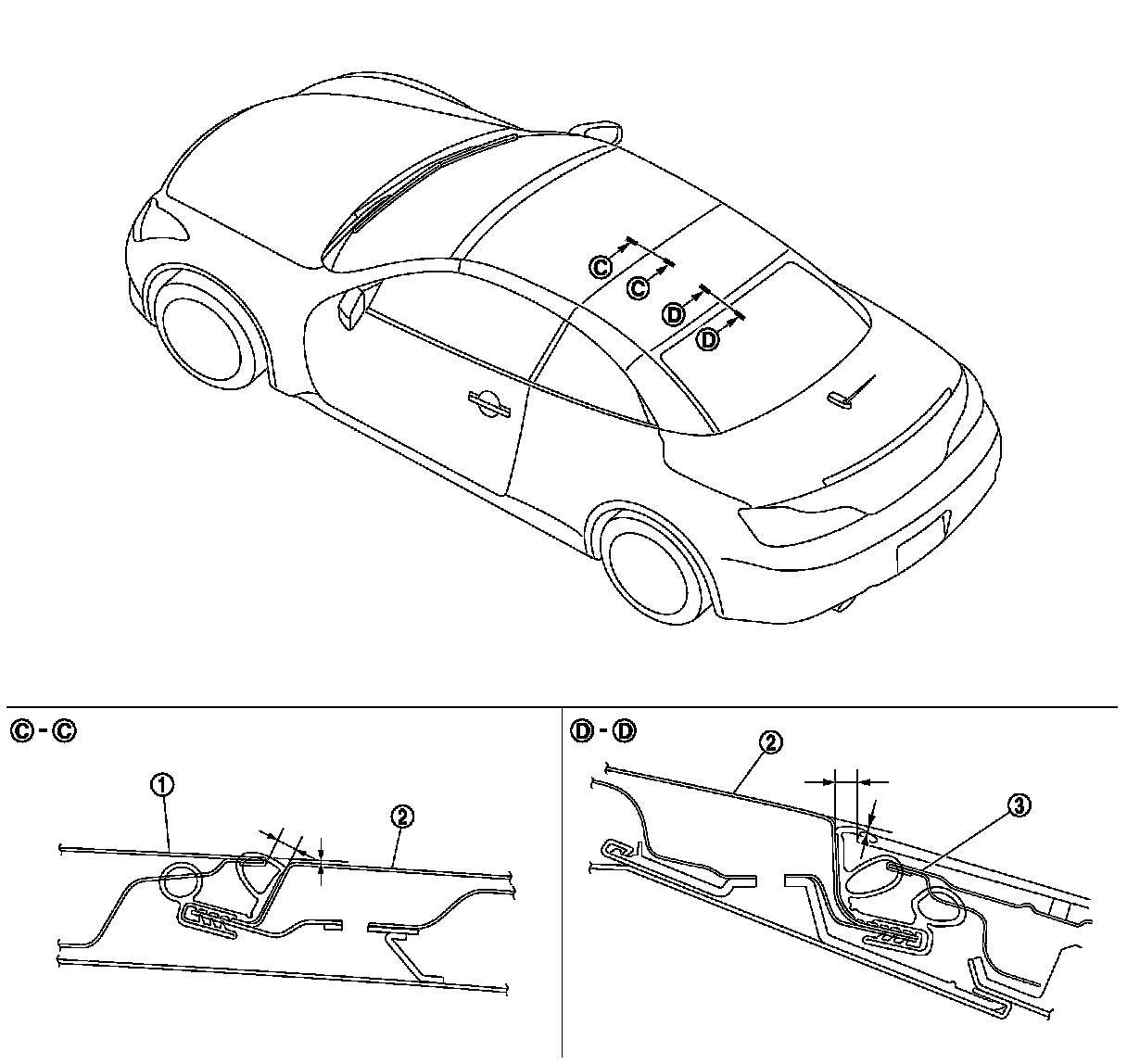

2. Stop roof as shown in the figure (during open operation).
3. Loosen center roof panel mounting TORX bolt.
4. Adjust center roof panel.
- If surface height difference is out of the specified value, and then adjust using shims.
- If clearance is out of the specified value, and slide center roof panel to front or rear direction.
5. Tighten each TORX bolt to the specified torque. Exploded View.
6. If D � D is out of the specified value, adjust rear roof panel. Rear Roof Panel.
7. Open and close roof. Check that lock and unlock operation is normal several times.
8. Perform initialization according to the work after adjusting center roof panel. Description.
9. Adjust door glass and quarter window glass. Procedures.
10. Perform water leakage test. Water Leakage Test.
11. Install headlining. Removal and Installation.
