When SRS Is Activated In A Collision

COLLISION DIAGNOSIS

FOR FRONTAL COLLISION

FOR FRONTAL COLLISION : When SRS is activated in a collision

CAUTION:
Due to varying models and option levels, not all parts listed in the chart below apply to all vehicles.

WORK PROCEDURE
1. Before performing any of the following steps, ensure that all vehicle body and structural repairs have been completed.
2. Replace the diagnosis sensor unit.
3. Remove the front air bag modules, crash zone sensor, bracket and seat belt pre-tensioner assemblies.
4. Check the SRS components using the table below:
Replace any SRS components showing visible signs of damage. (dents, cracks and deformation, etc.)
5. Install new front air bag modules, crash zone sensor assembly, bracket and seat belt pre-tensioner assemblies.
6. Perform self-diagnosis using CONSULT-III or air bag warning lamp. Refer to SRC-21, "CONSULT-III Function" or SRC-15, "Diagnosis with Air Bag Warning Lamp" for details. Ensure entire SRS operates properly. Scan Tool Testing and Procedures Diagnosis Description
7. After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to SRC-15, "Diagnosis Description". Diagnosis Description

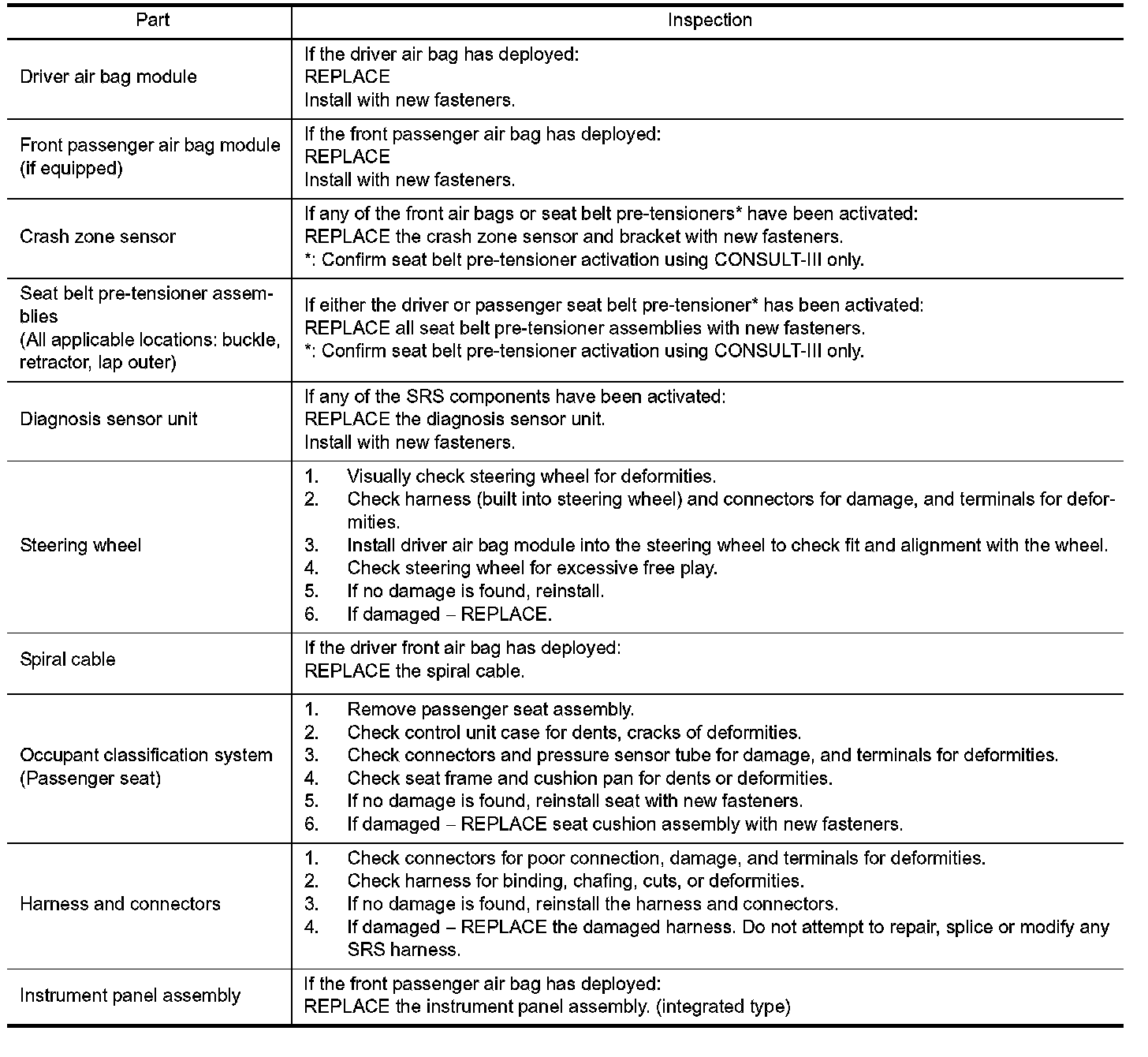

SRS INSPECTION (FOR FRONTAL COLLISION)
