Component Function Check

MIRROR SENSOR


DRIVER SIDE : Component Function Check

1.CHECK FUNCTION
1. Turn ignition switch ON.
2. Select "MIR/SEN LH U-D", "MIR/SEN LH R-L" in the "Data monitor" using CONSULT-III.

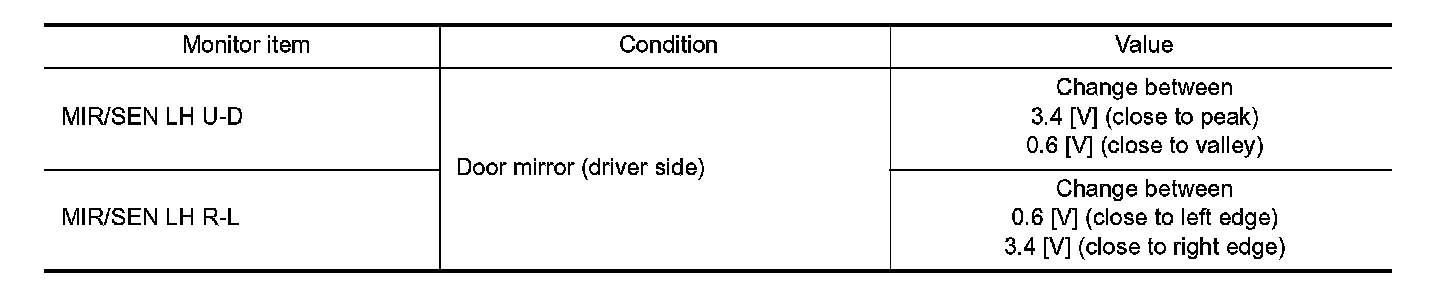

3. Check mirror sensor (driver side) signal under the following condition.





Is the indication normal?
YES - INSPECTION END
NO - Perform diagnosis procedure. Diagnosis Procedure.
