Fail Safe
Fail Safe
DRIVER SEAT CONTROL UNIT (WITH AUTOMATIC DRIVE POSITIONER)
Fail Safe
The fail-safe mode may be activated if the following symptoms are observed.

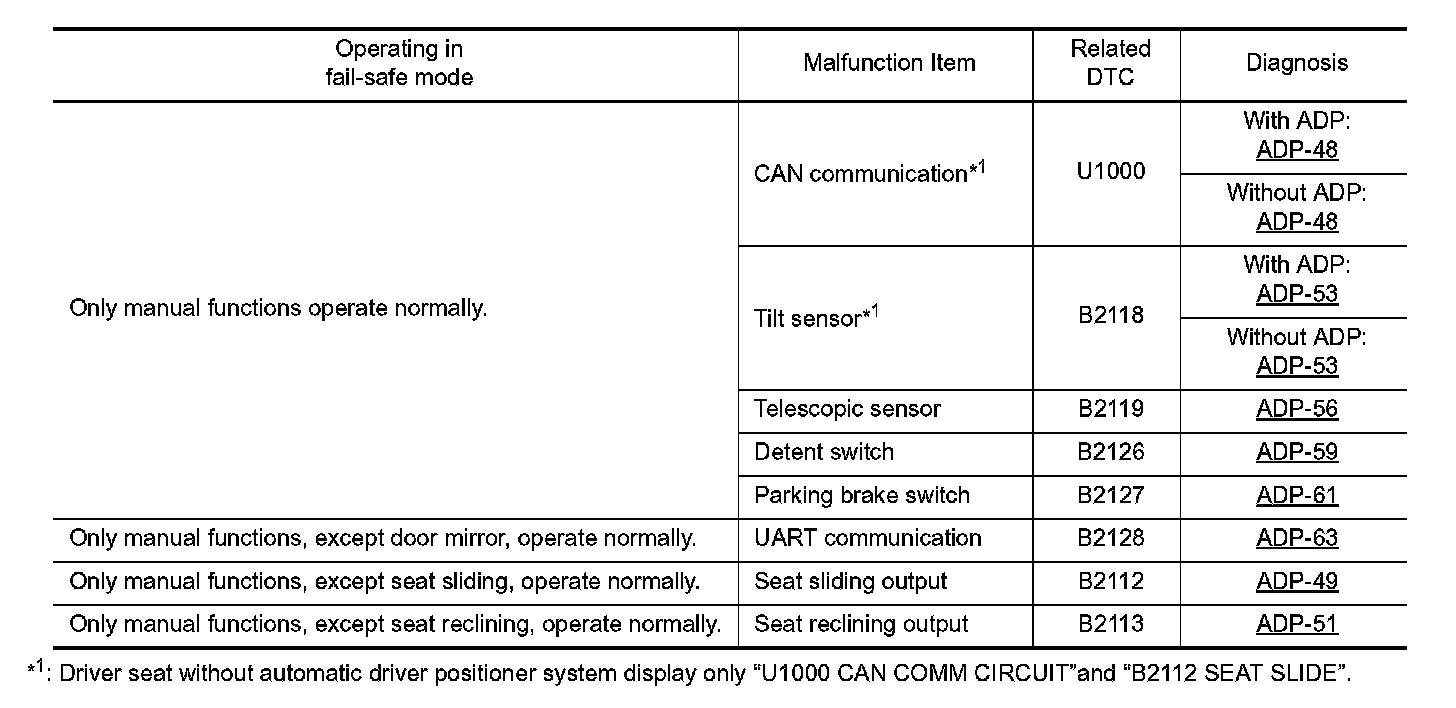

Fail-Safe Chart:
