Component Inspection





TILT SWITCH


Component Inspection

1.CHECK TILT SWITCH
1. Turn ignition switch OFF.
2. Disconnect tilt & telescopic switch connector.

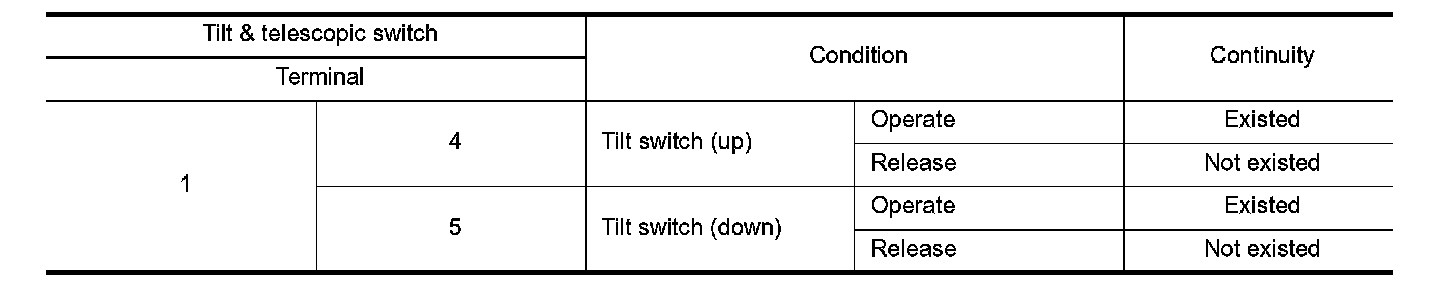

3. Check continuity between tilt & telescopic switch terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace tilt & telescopic switch. Removal and Installation.
