Diagnosis Procedure
TILT SENSOR
Description
- The tilt sensor is installed to the steering column assembly.
- The resistance of tilt sensor changes according to the up/down position of steering column.
- The terminal voltage of automatic drive positioner control unit changes according to a change of tilt sensor resistance. Automatic drive positioner control unit calculates the tilt position from the voltage.
TILT SENSOR
Diagnosis Procedure
1.CHECK TILT SENSOR SIGNAL
1. Turn ignition switch ON.

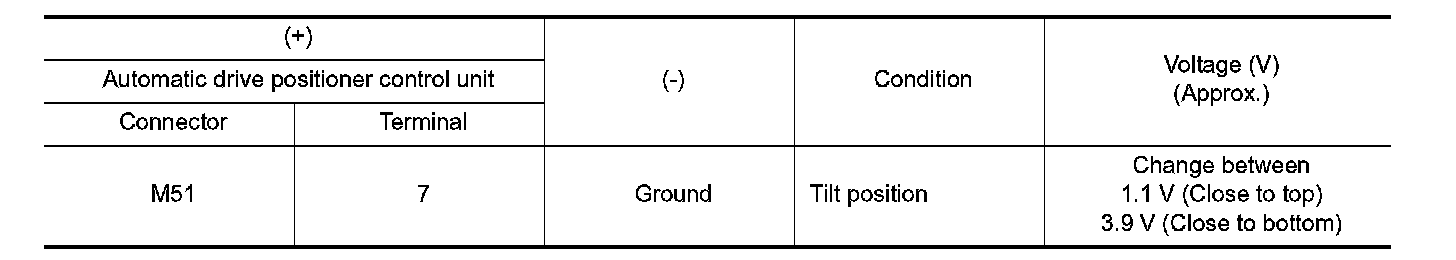

2. Check voltage automatic drive positioner control unit harness connector and ground.
Is the inspection result normal?
YES - Replace automatic drive positioner control unit. Automatic Drive Positioner Control Unit.
NO - GO TO 2.
2.CHECK TILT SENSOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and tilt & telescopic sensor connector.

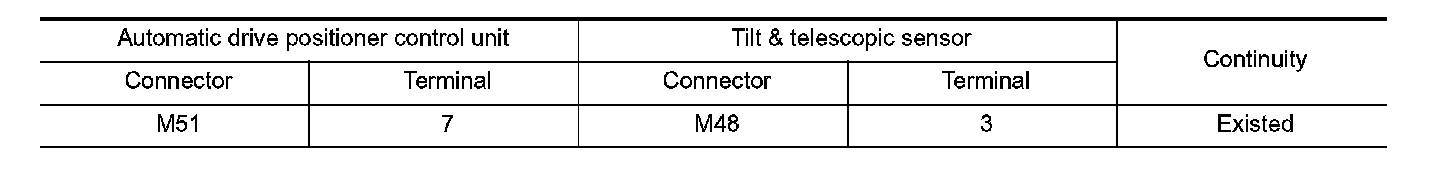

3. Check continuity between automatic drive positioner control unit harness connector and tilt & telescopic sensor harness connector.

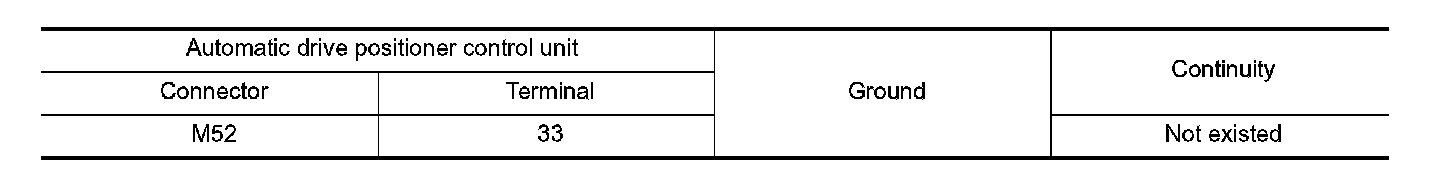

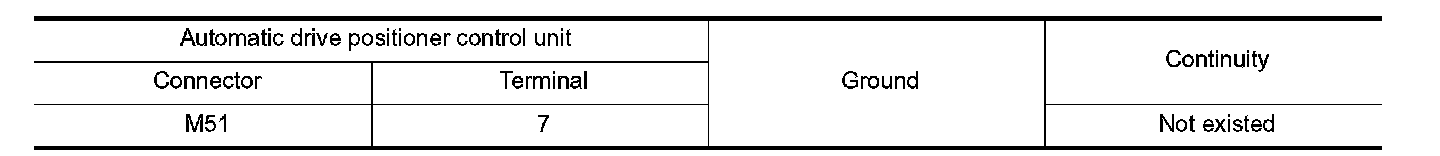

4. Check continuity between automatic drive positioner control unit harness connector and ground.
Is the inspection result normal?
YES - GO TO 3.
NO - Repair or replace harness.
3.CHECK TILT SENSOR POWER SUPPLY
1. Connect automatic drive positioner control unit connector.
2. Turn ignition switch ON.

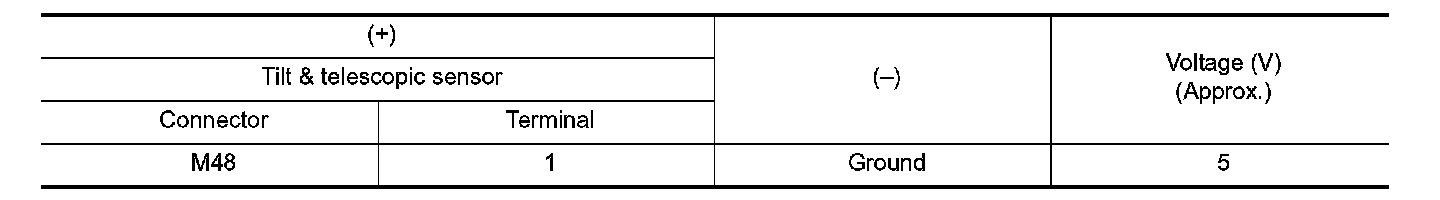

3. Check voltage between tilt & telescopic sensor harness connector and ground.
Is the inspection result normal?
YES - GO TO 5.
NO - GO TO 4.
4.CHECK TILT SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit connector, door mirror (driver side) connector and door mirror (passenger side) connector.

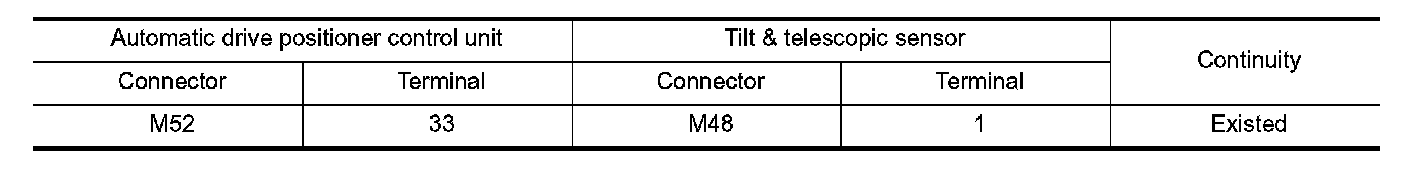

3. Check continuity between automatic drive positioner control unit harness connector and tilt & telescopic sensor harness connector.
4. Check continuity between automatic drive positioner control unit harness connector and ground.
Is the inspection result normal?
YES - Replace automatic drive positioner control unit. Automatic Drive Positioner Control Unit.
NO - Repair or replace harness.
5.CHECK TILT SENSOR GROUND CIRCUIT 1
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit connector.
3. Check continuity between automatic drive positioner control unit harness connector and tilt & telescopic sensor harness connector.
Is the inspection result normal?
YES - GO TO 6.
NO - Repair or replace harness.
6.CHECK TILT SENSOR GROUND CIRCUIT 2
1. Connect automatic drive positioner control unit connector.
2. Check continuity between automatic drive positioner control unit harness connector and ground.
Is the inspection result normal?
YES - Replace tilt & telescopic sensor (Built in steering column assembly). Exploded View Removal and Installation, "WITHOUT
ELECTRIC MOTOR : Exploded View".
NO - Replace automatic drive positioner control unit. Automatic Drive Positioner Control Unit.
