Component Inspection

FORWARD SWITCH


Component Inspection

1.CHECK FORWARD SWITCH
1. Turn ignition switch OFF.
2. Disconnect forward switch connector.

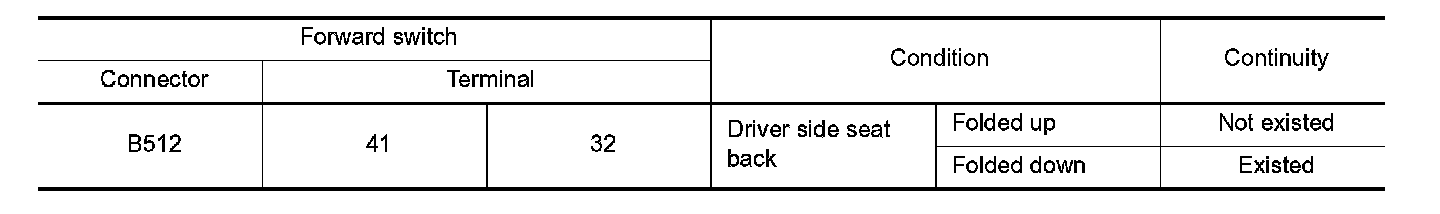

3. Check continuity between forward switch terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace forward switch (Built in seat back frame). Exploded View.
