CONSULT-III Function (BCM - Door Lock)

DIAGNOSIS SYSTEM (BCM)


DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)


BCM CONSULT-III FUNCTION

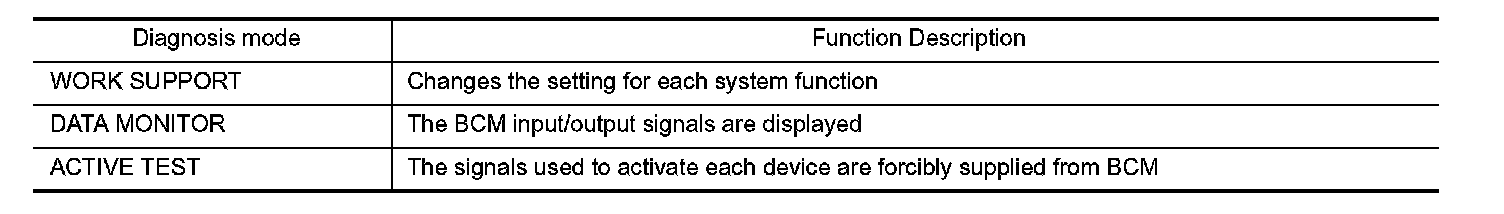

CONSULT-III performs the following functions via CAN communication with BCM.

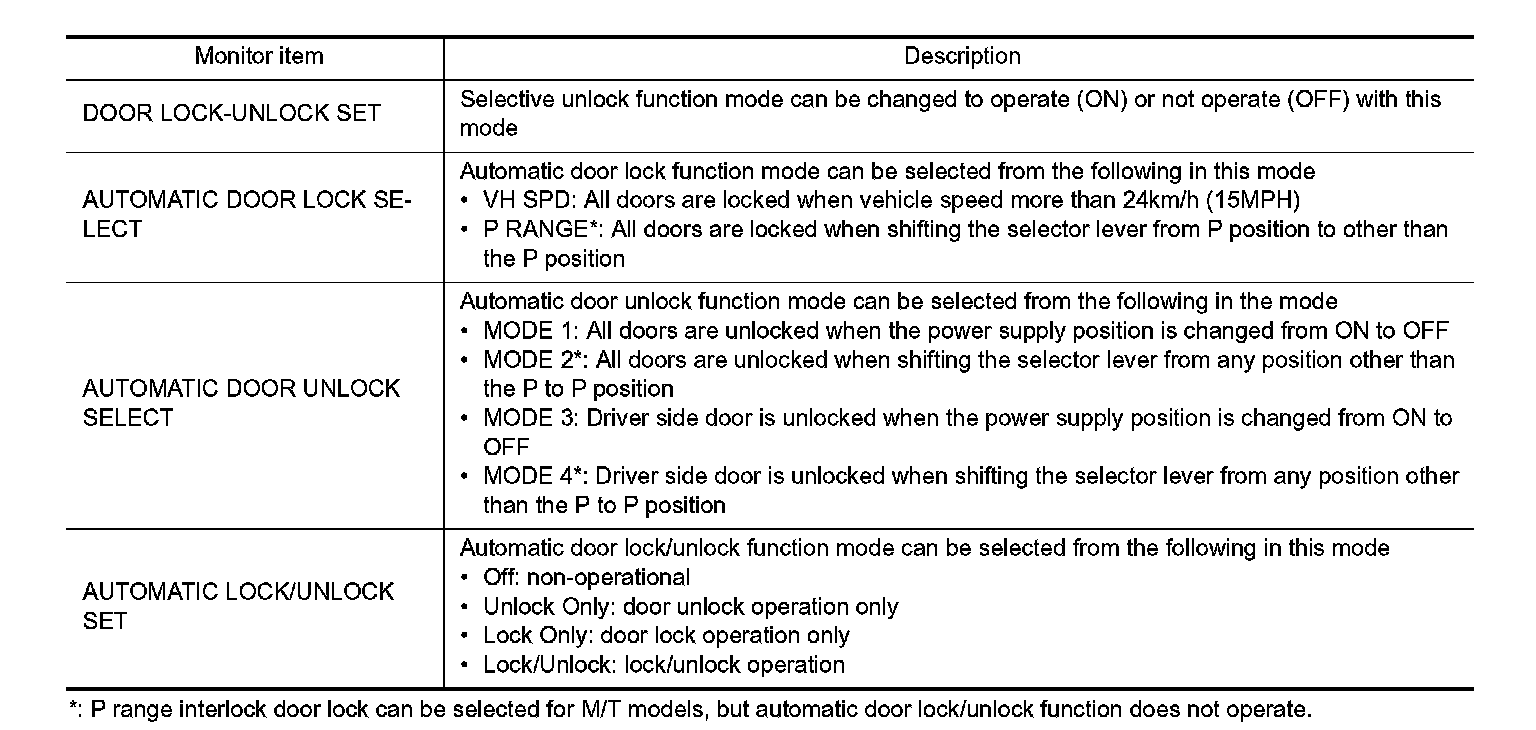

WORK SUPPORT

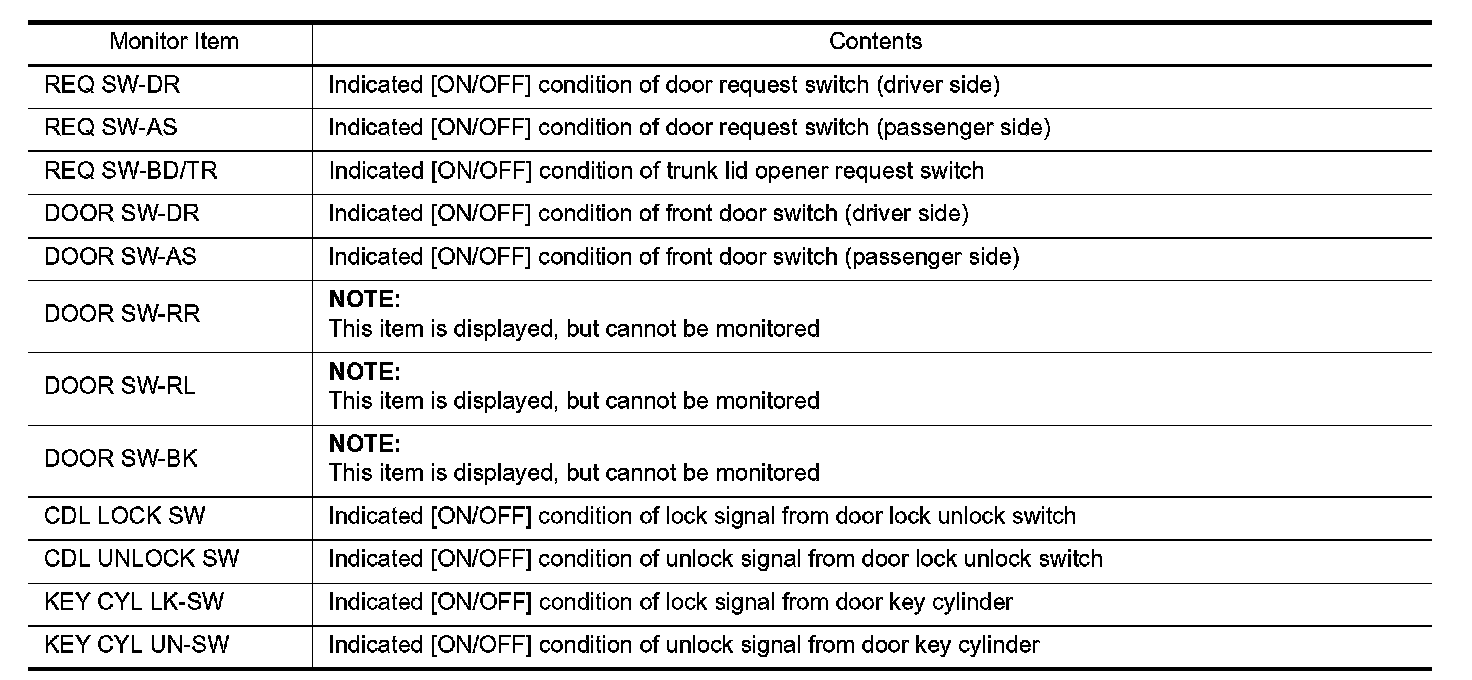

DATA MONITOR






ACTIVE TEST
