Pinout Values and Diagnostic Parameters





BCM (BODY CONTROL MODULE)


Reference Value

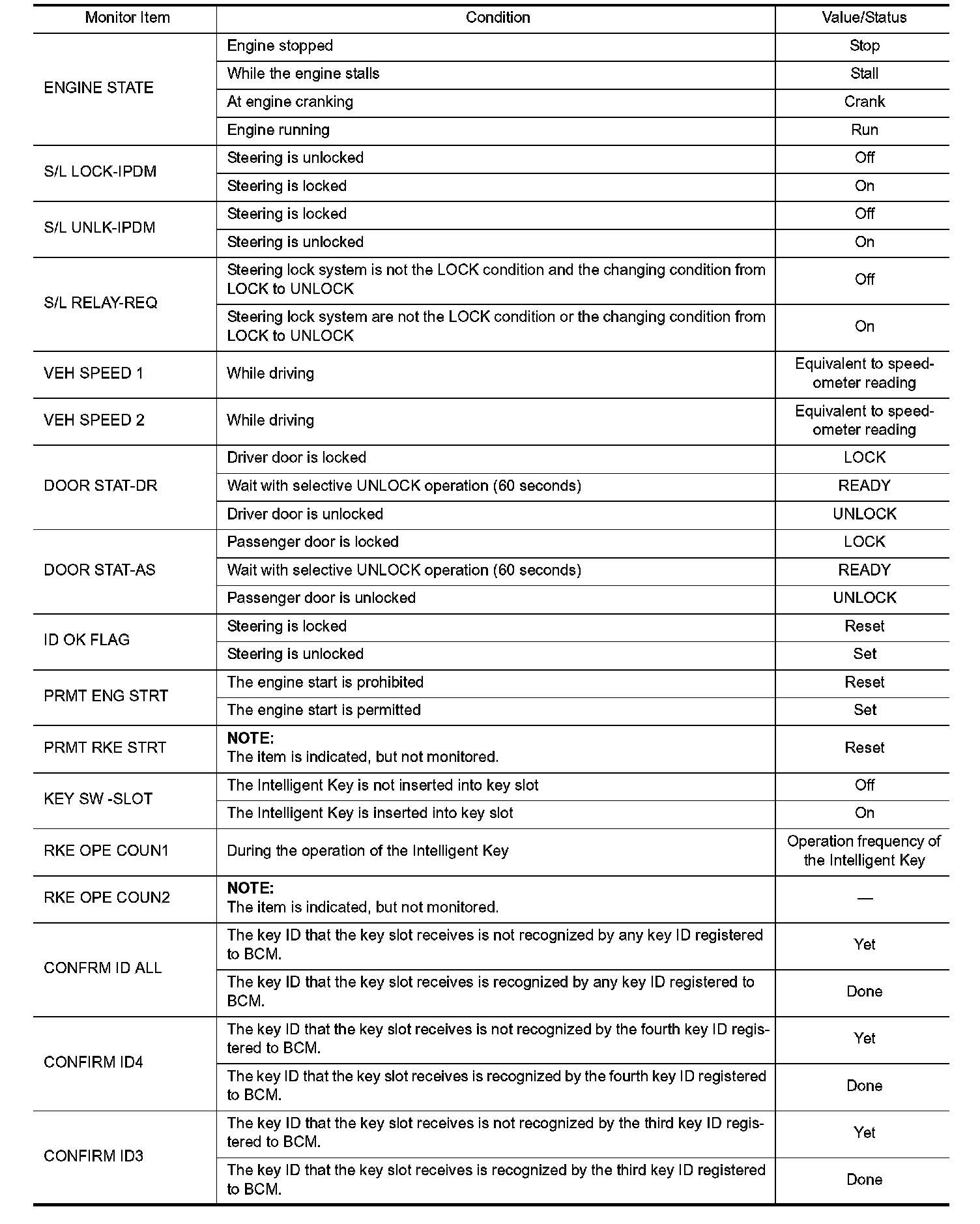

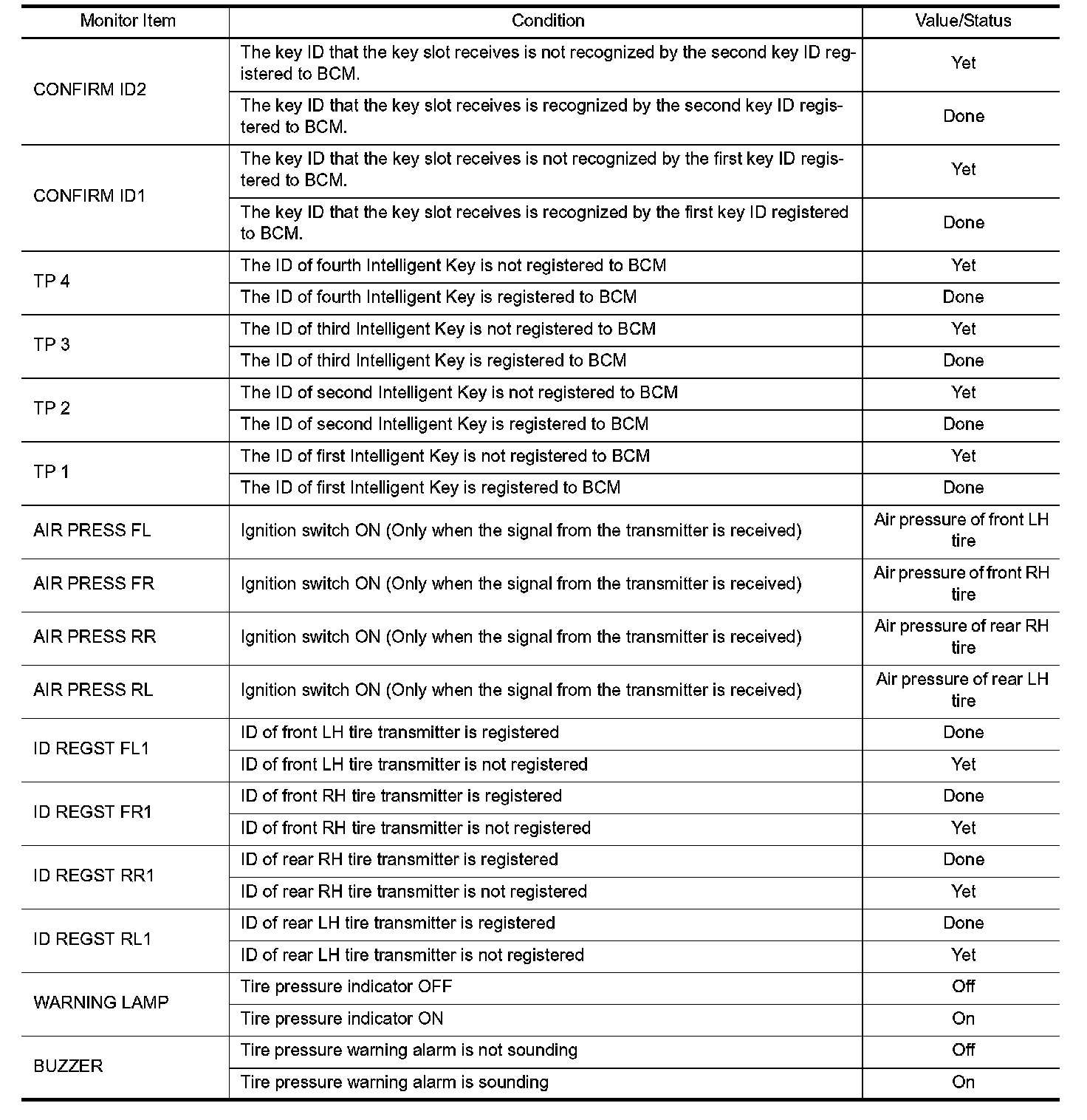

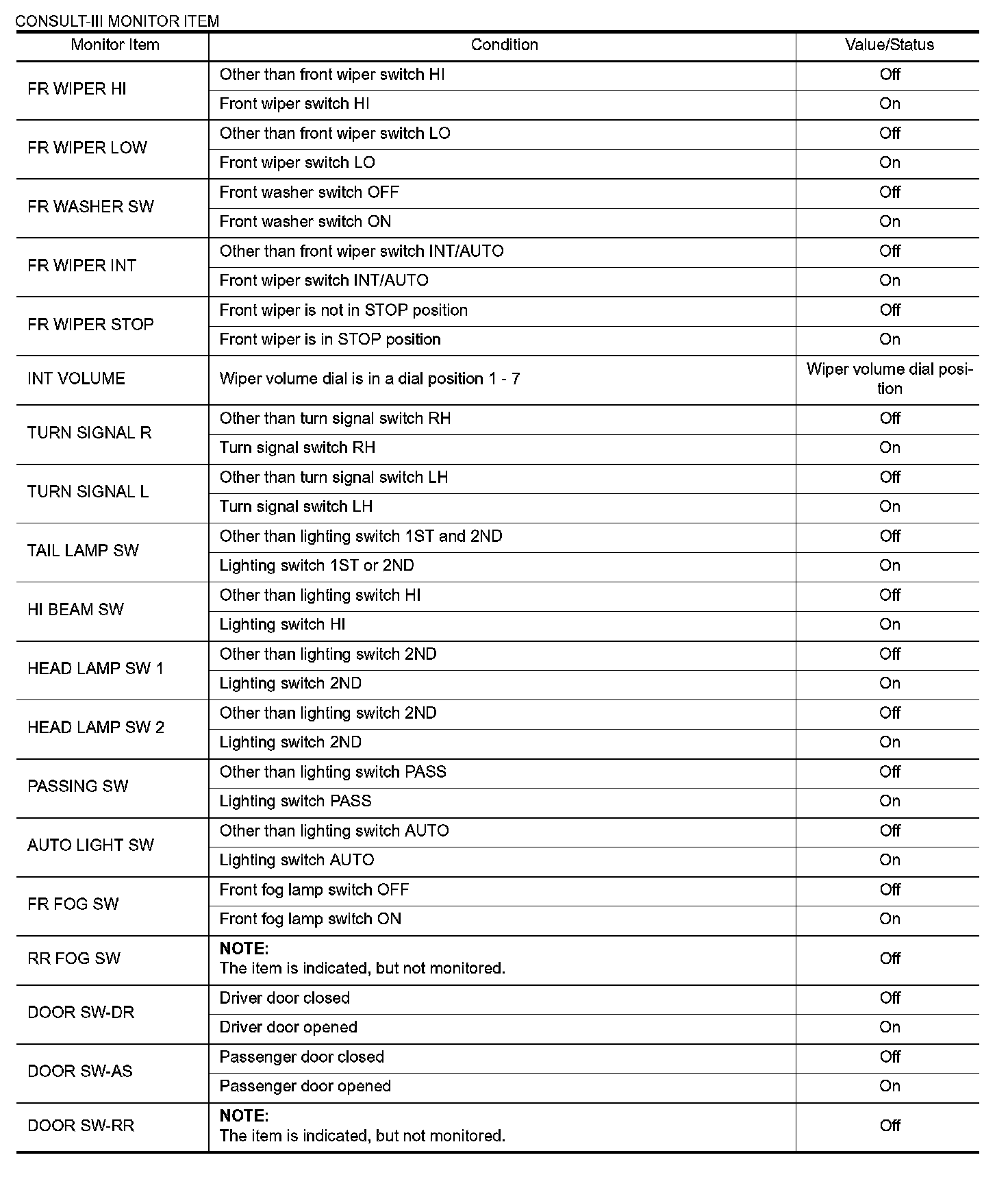

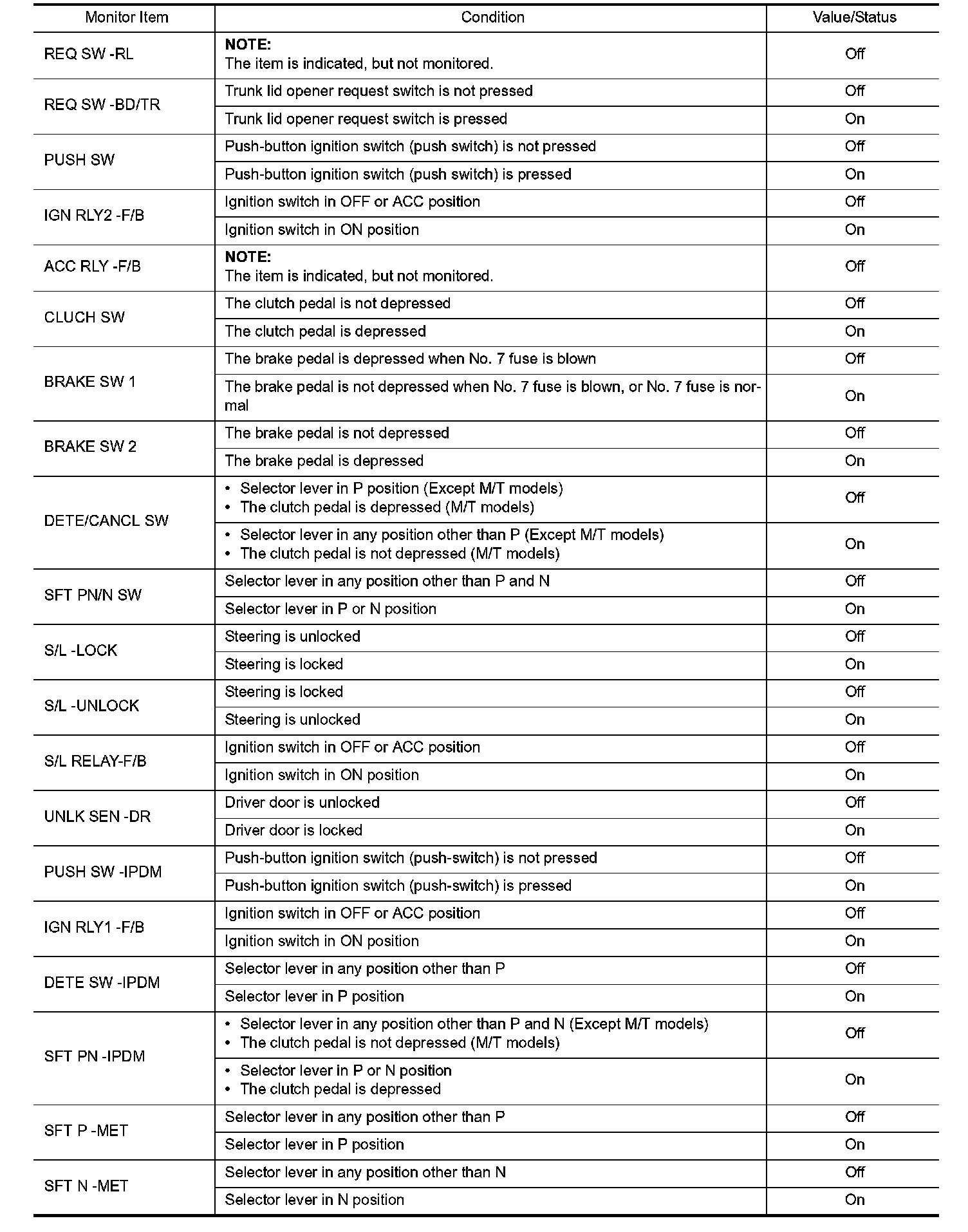

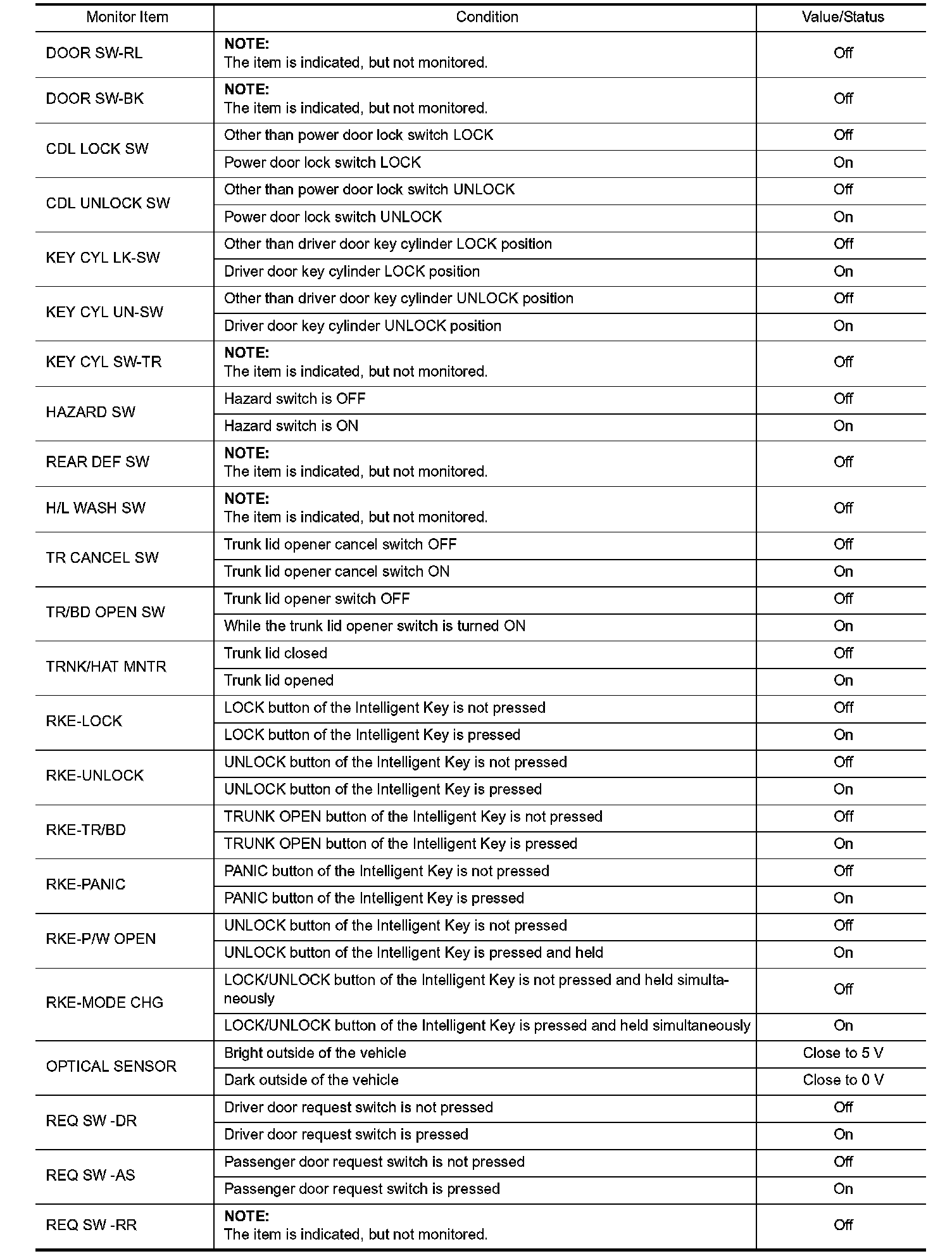

VALUES ON THE DIAGNOSIS TOOL

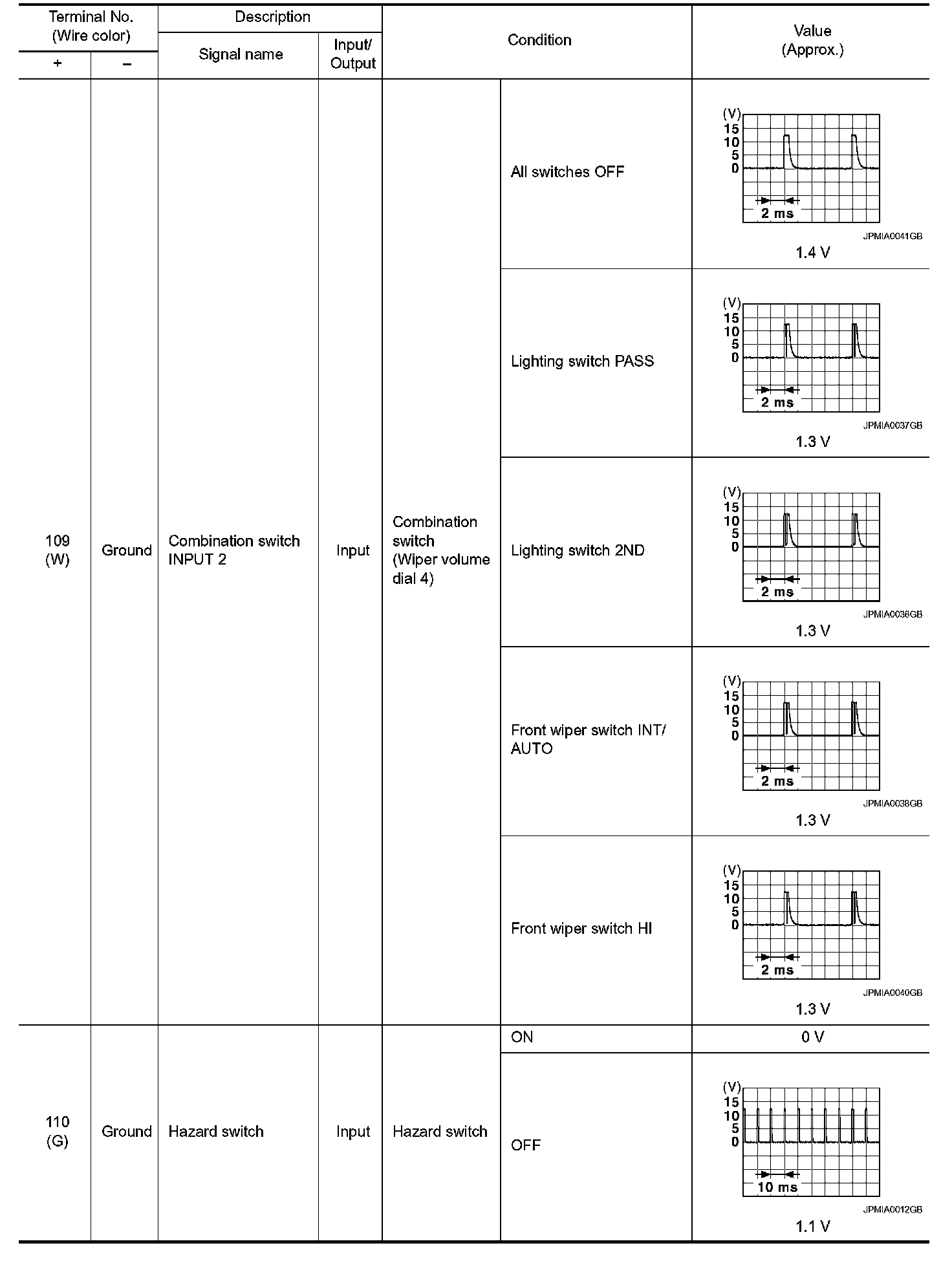

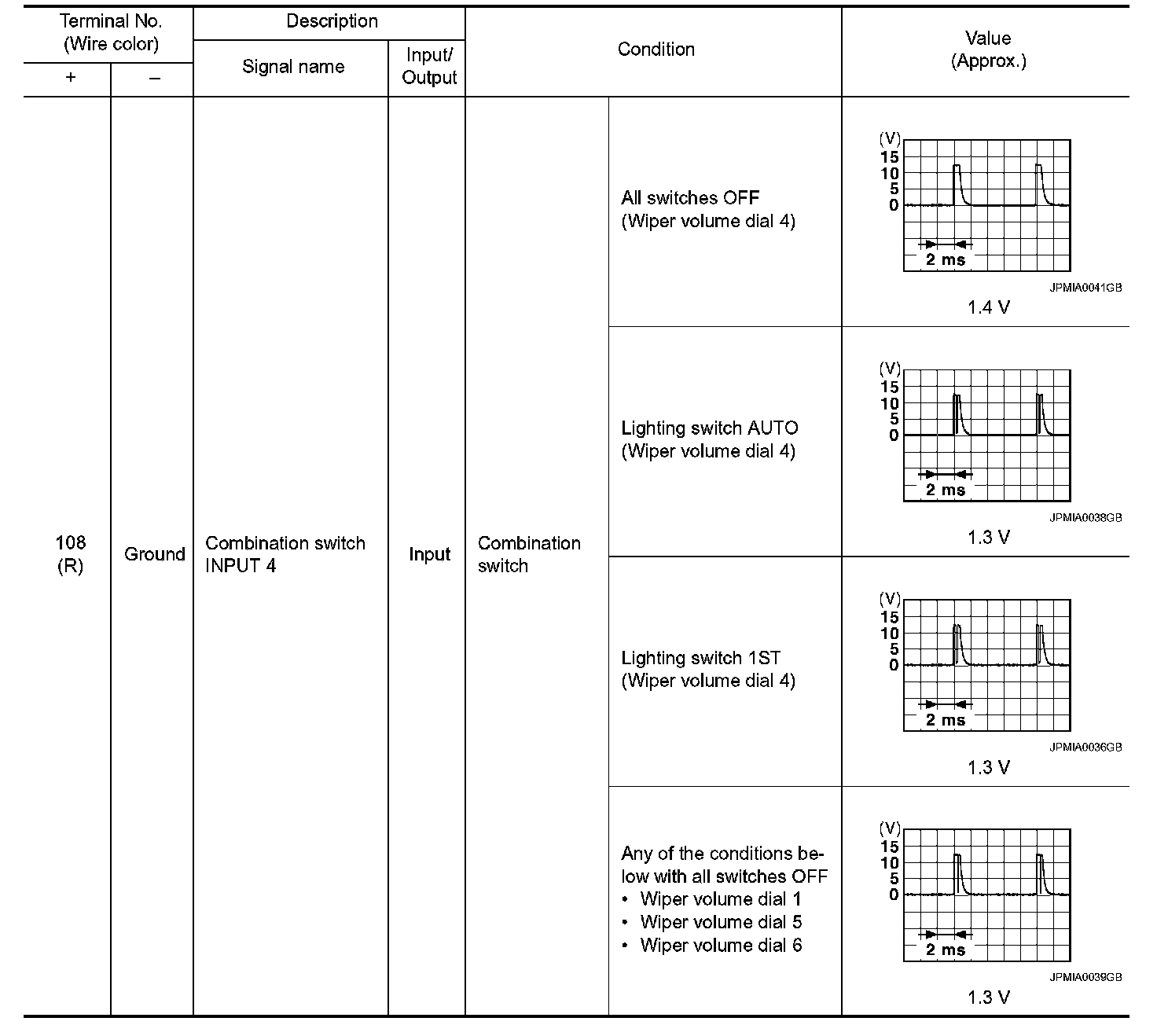

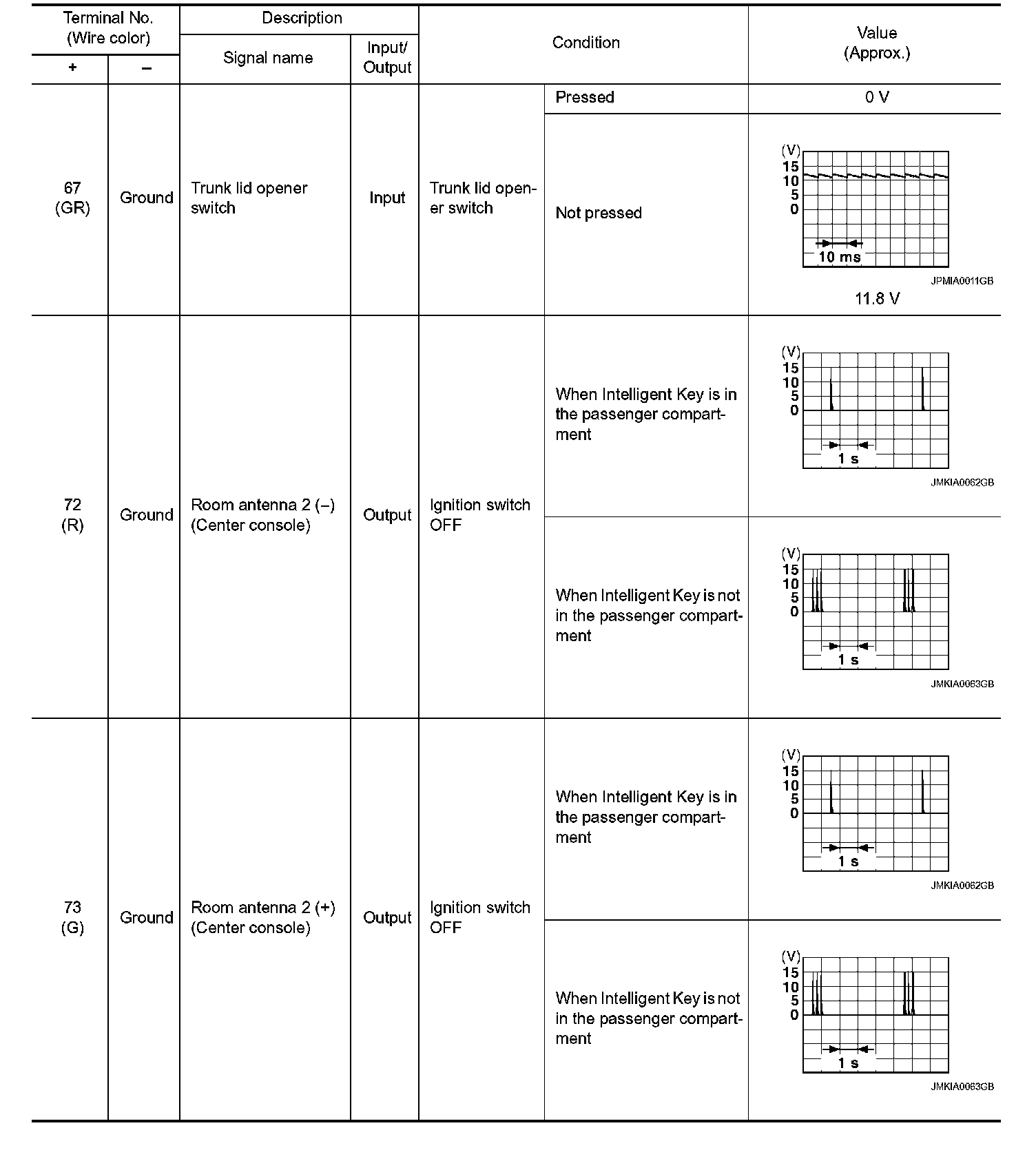

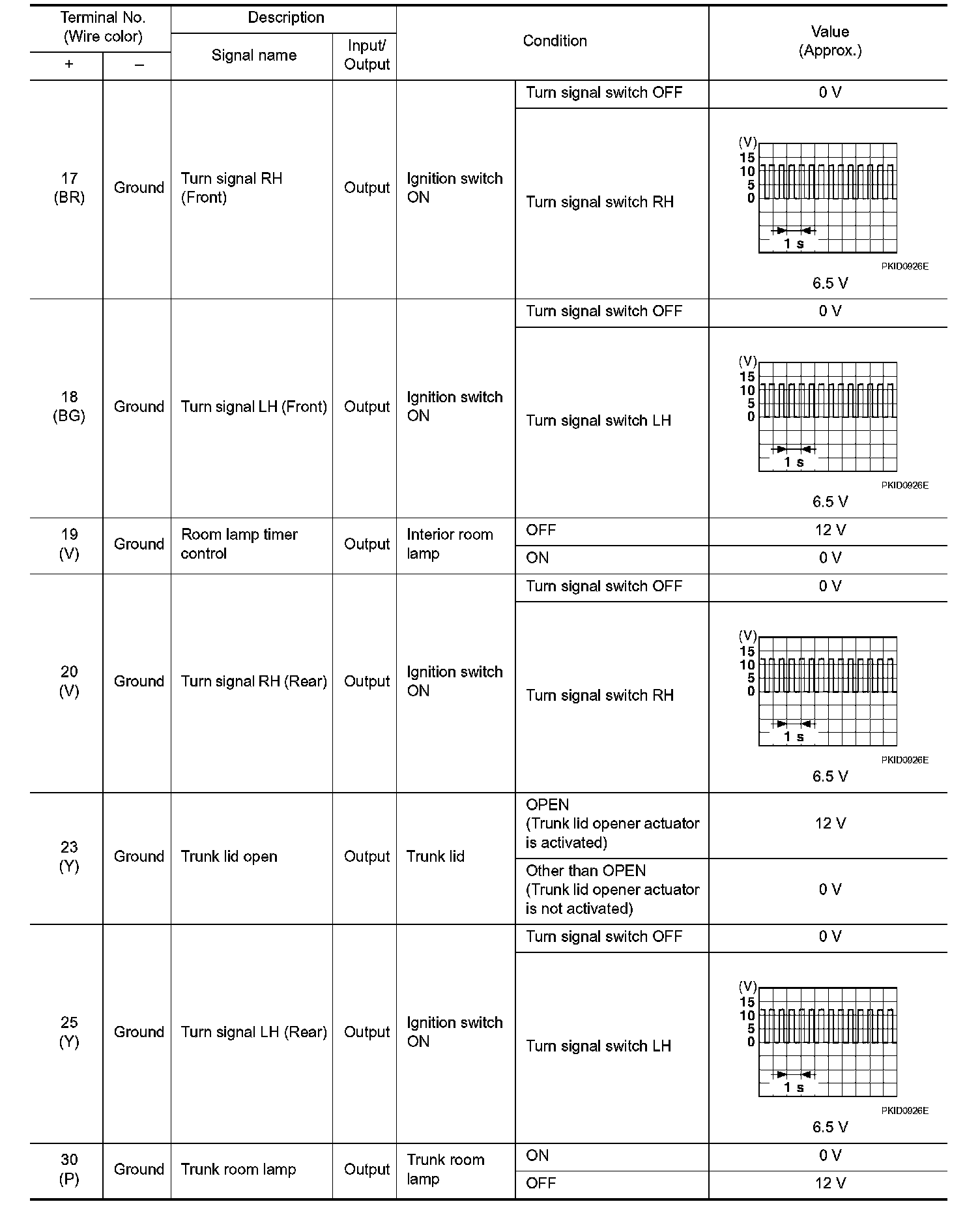

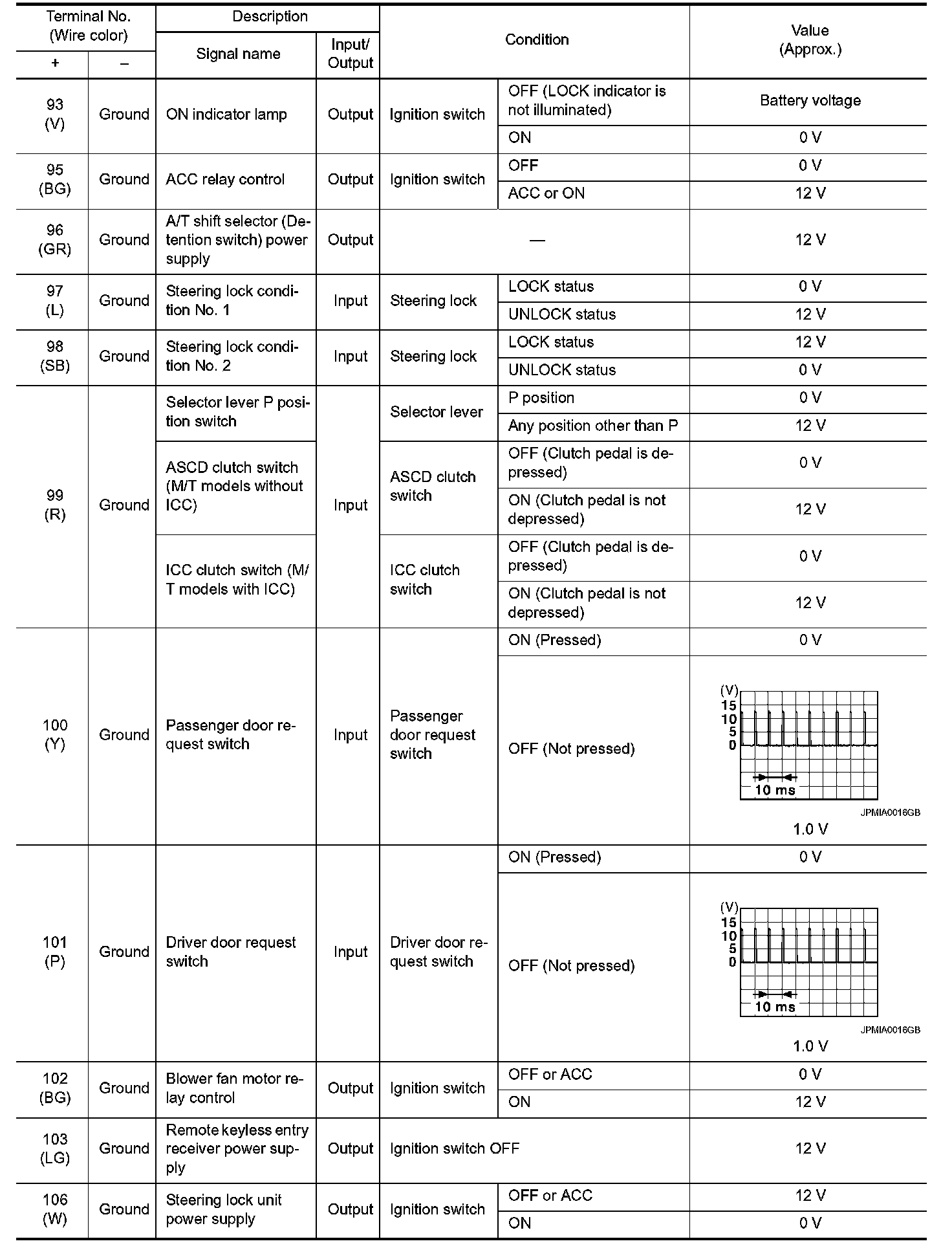

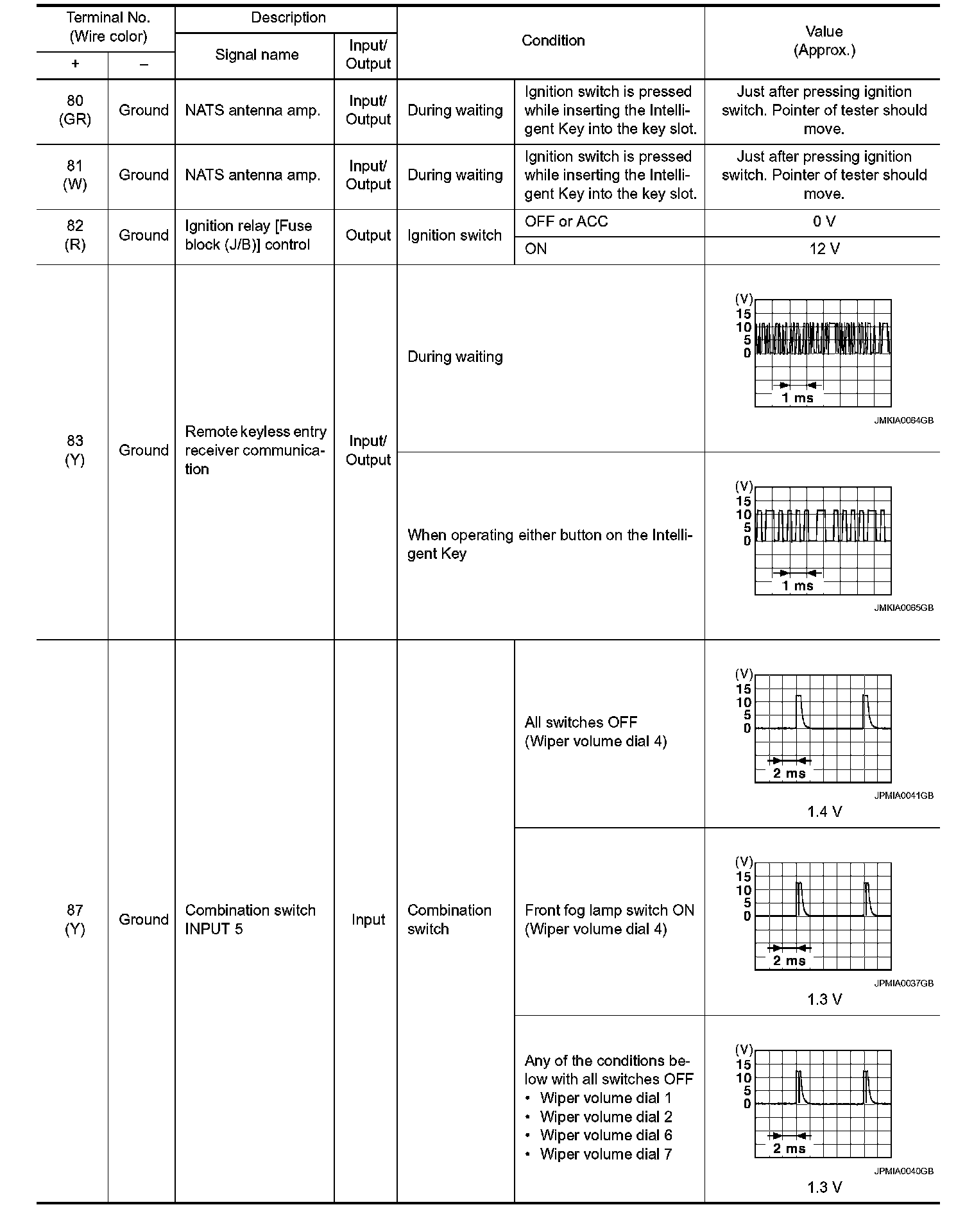

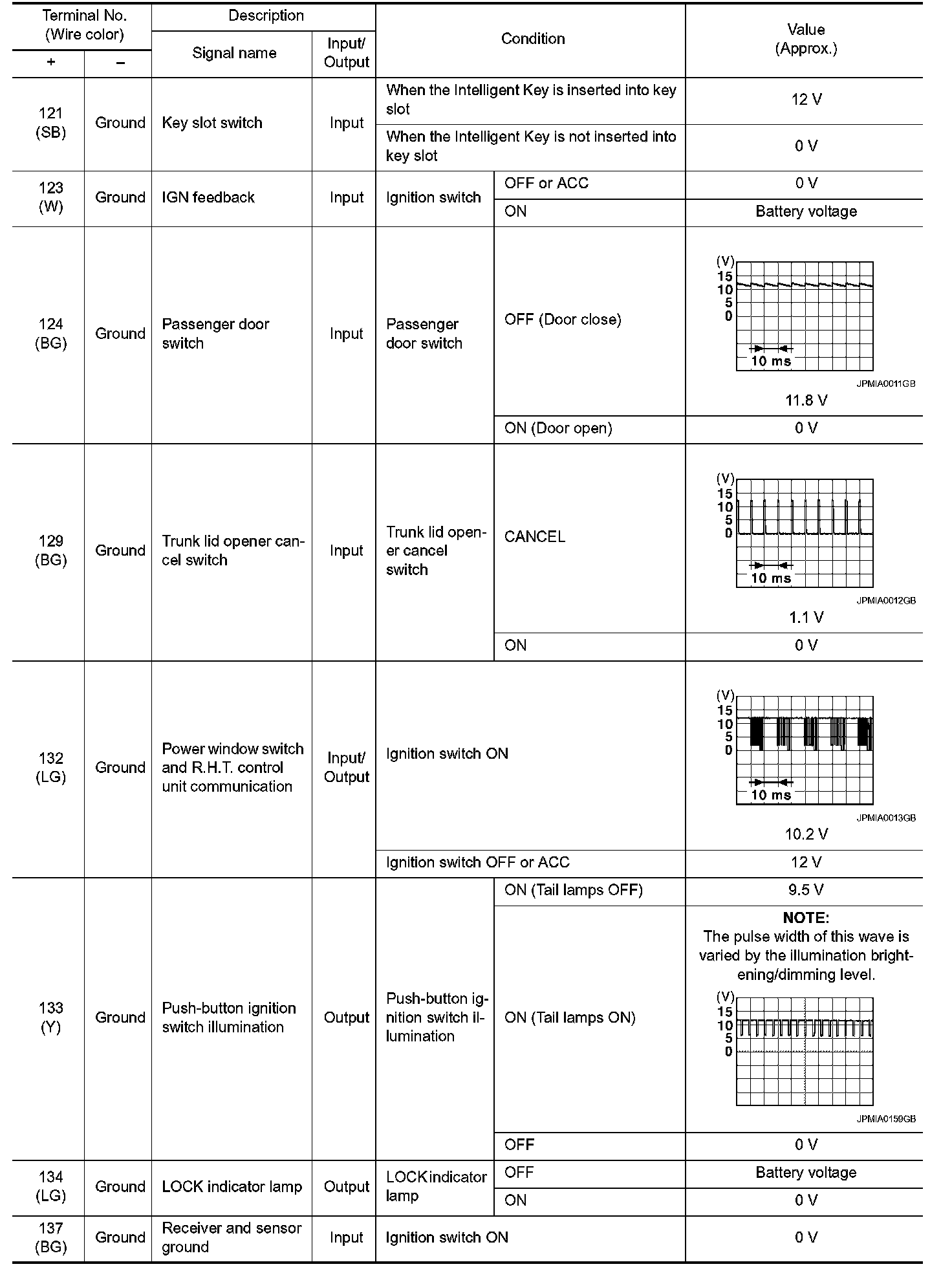

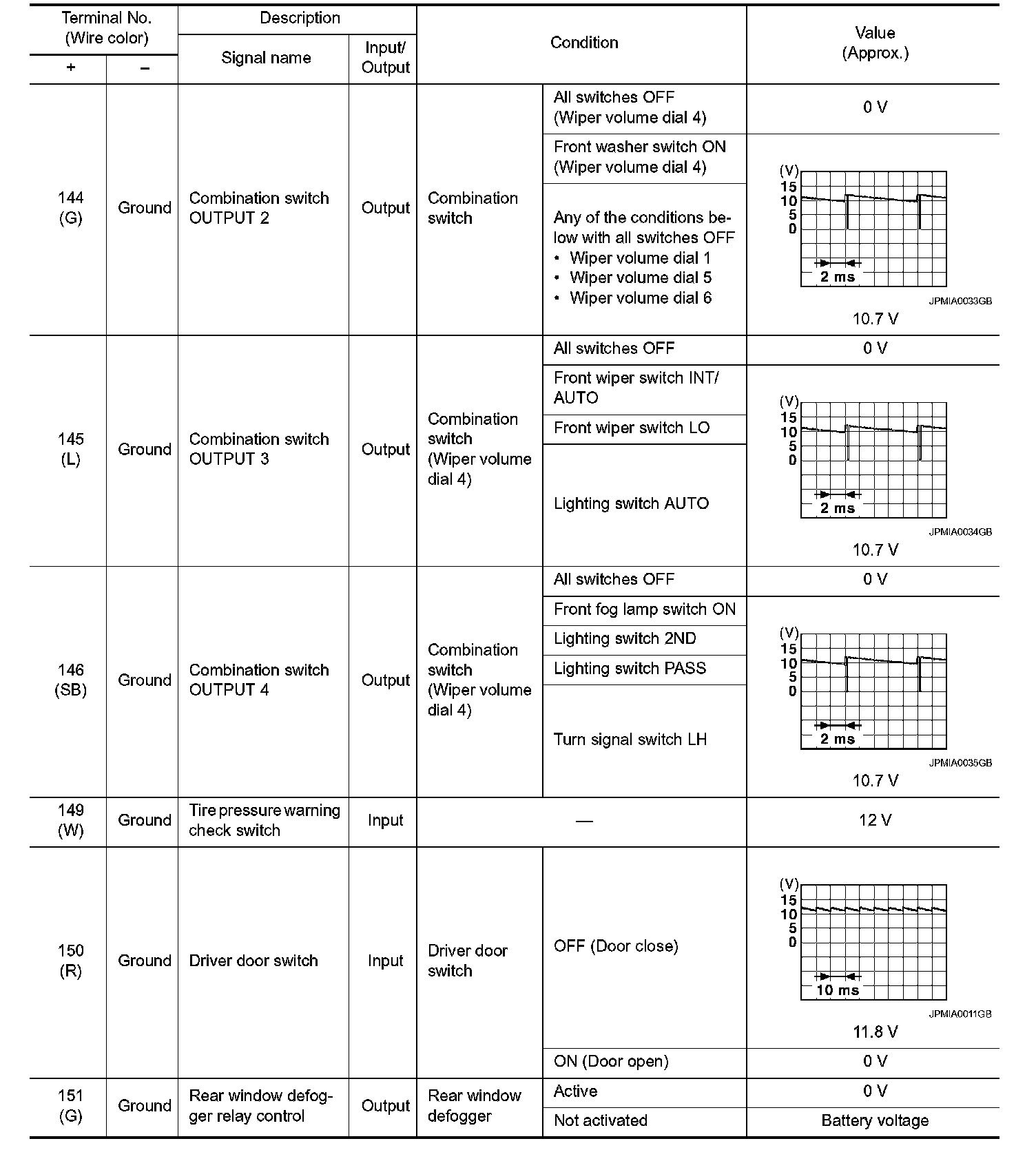

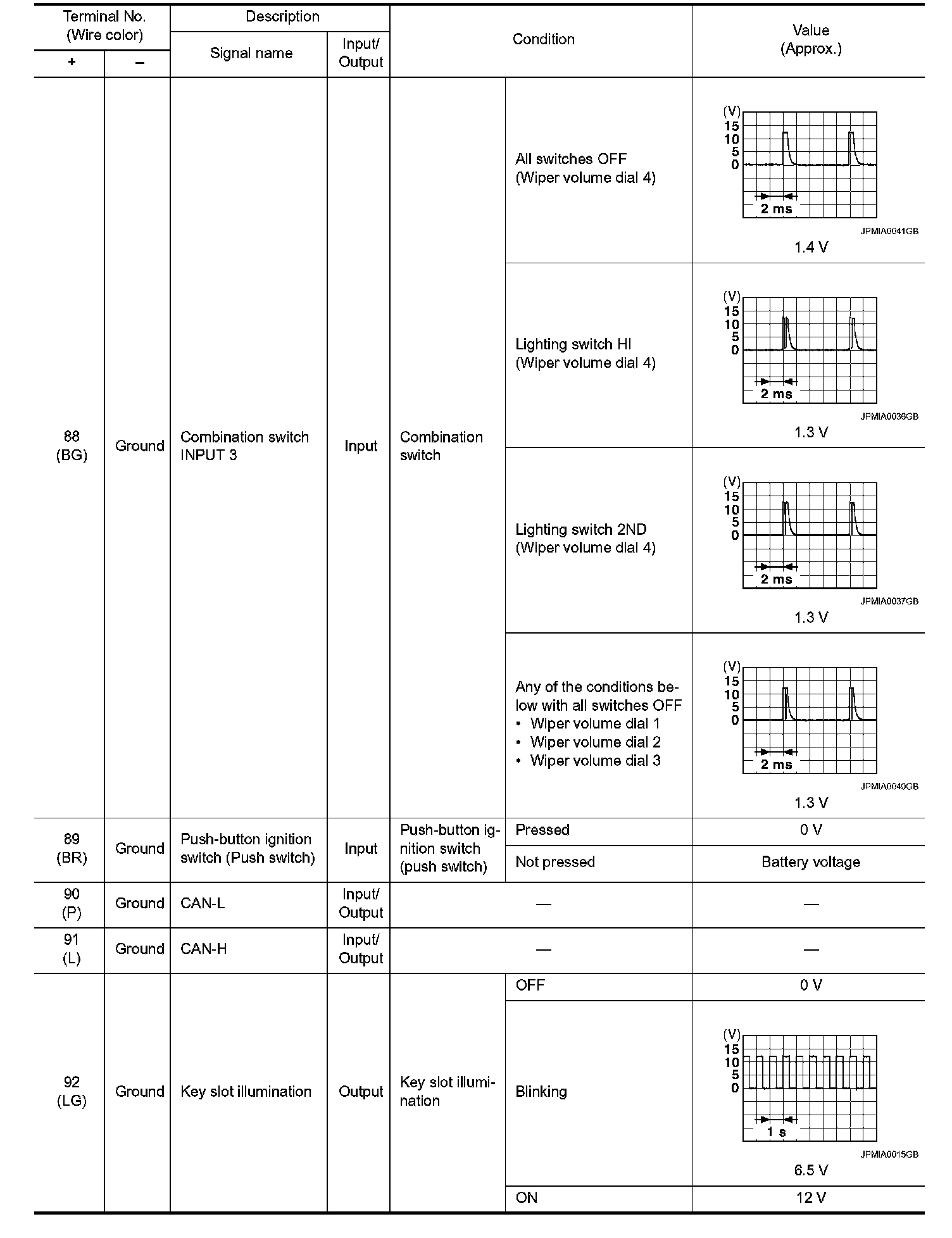

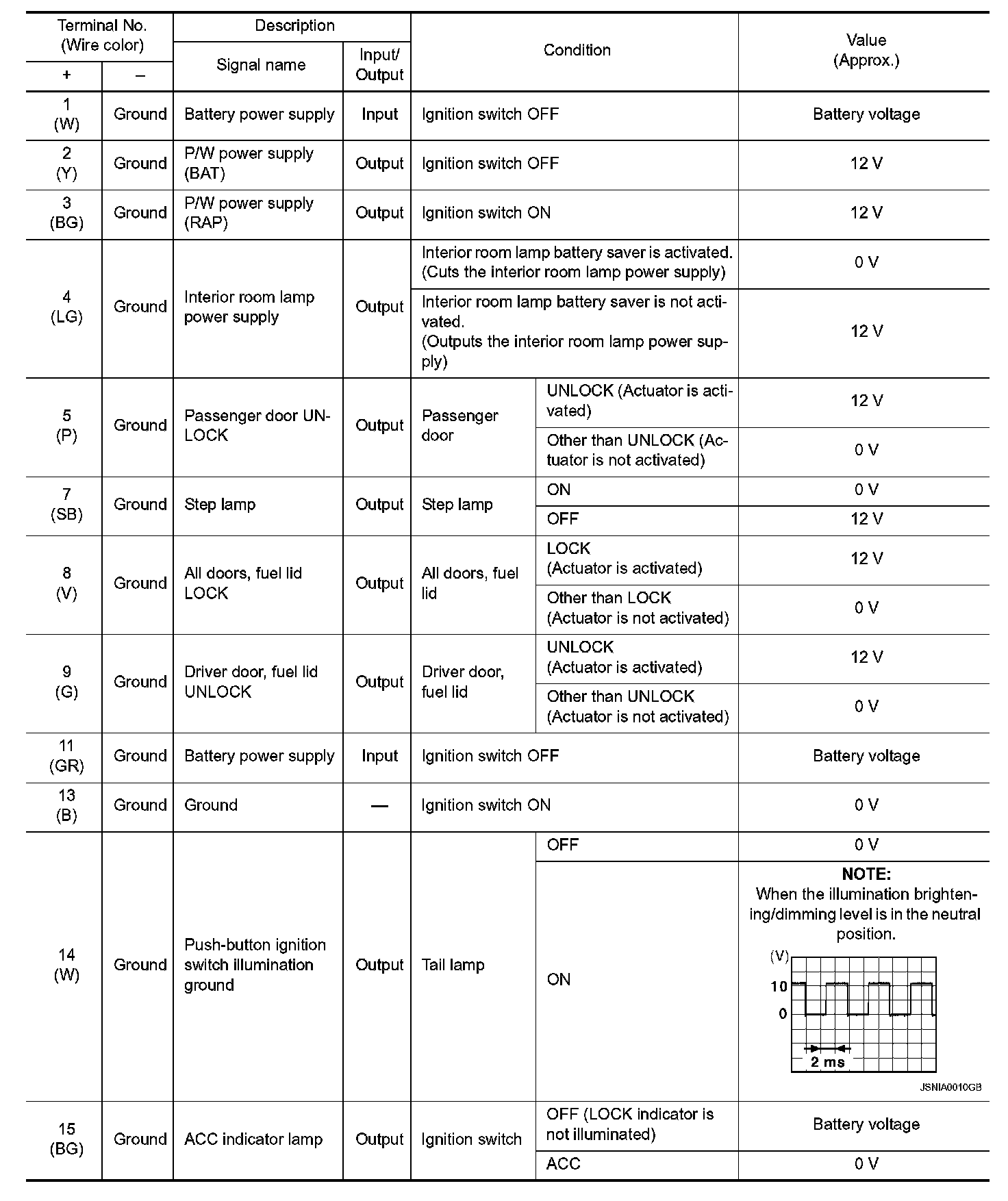

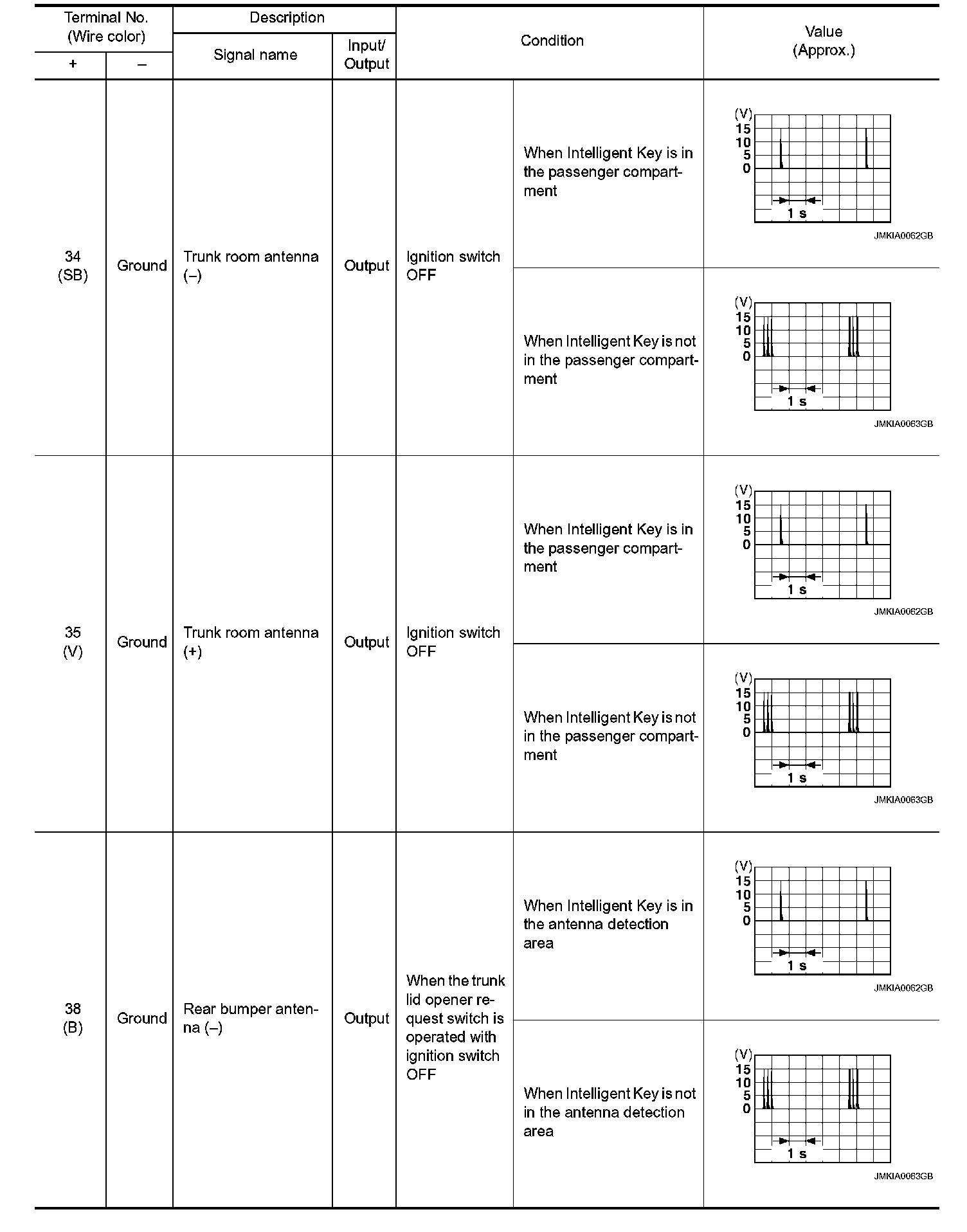

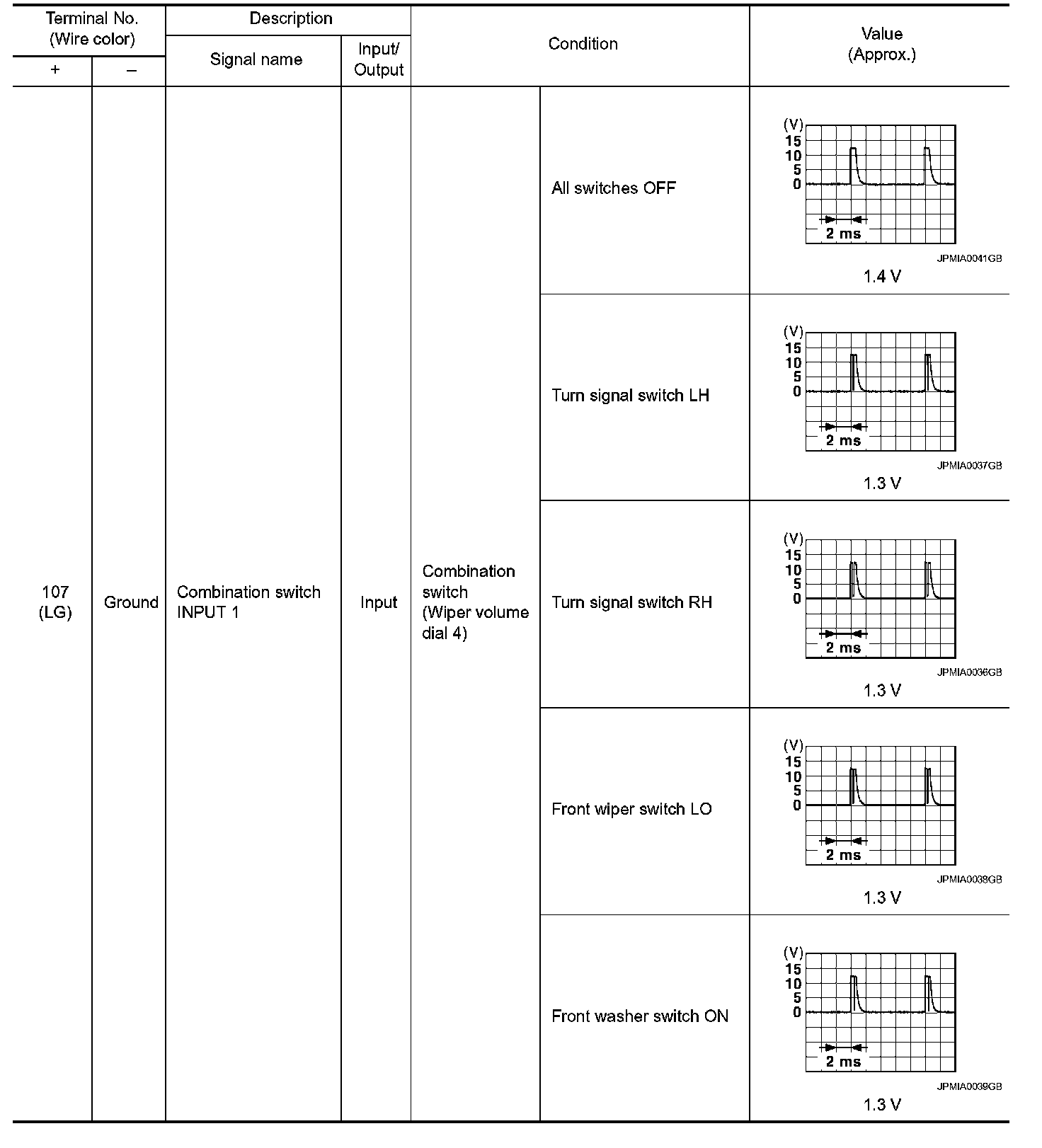

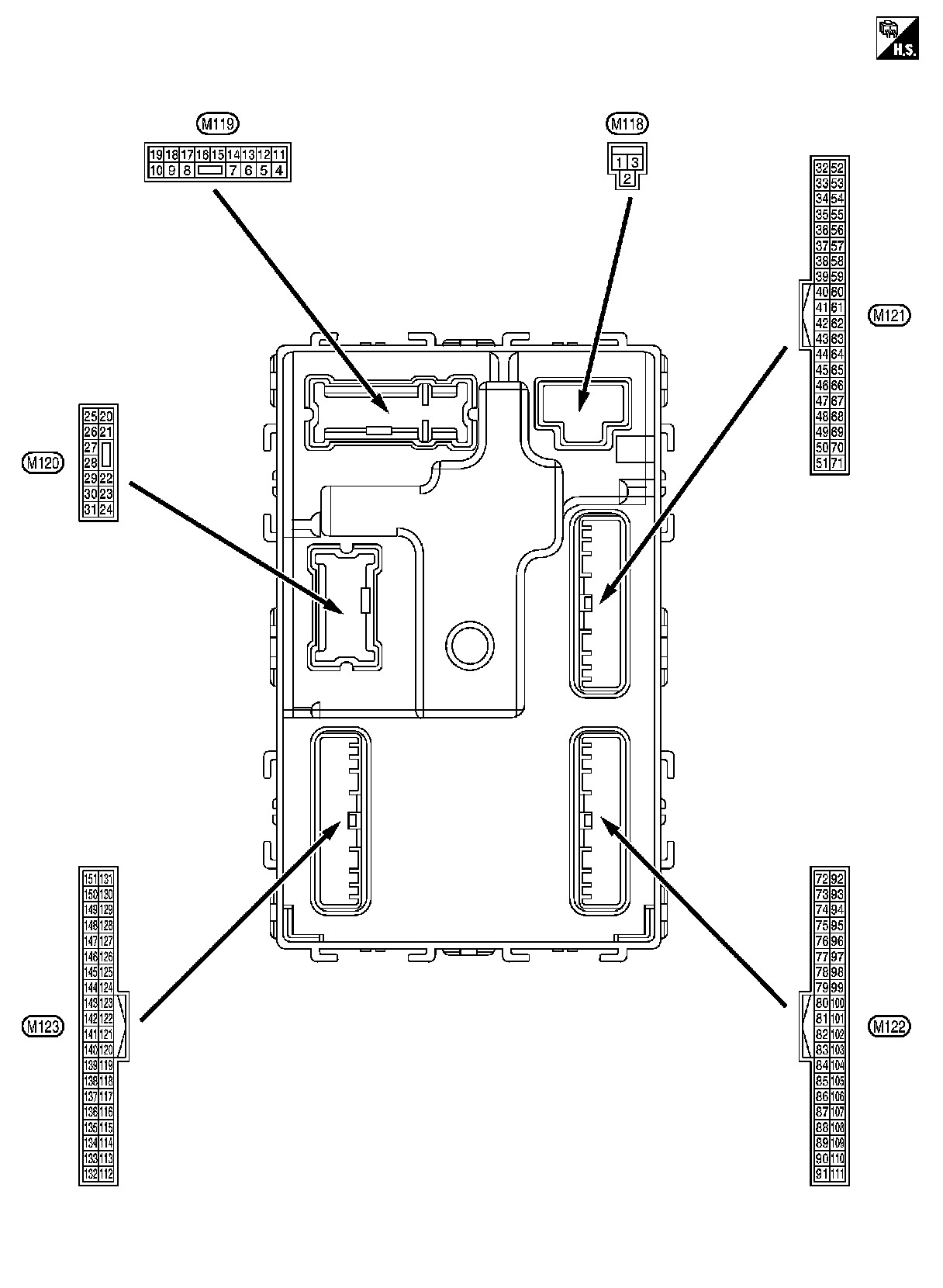

TERMINAL LAYOUT

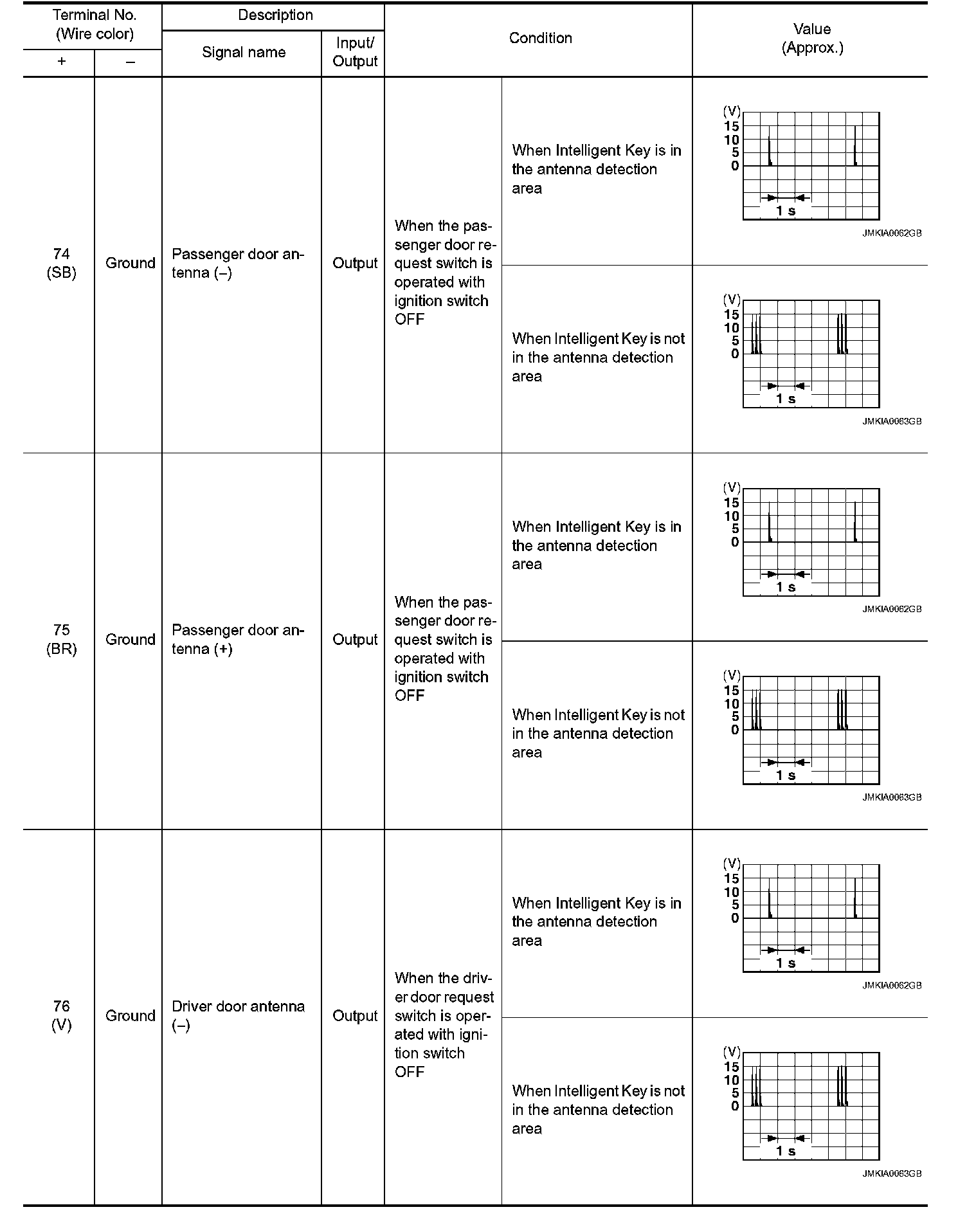

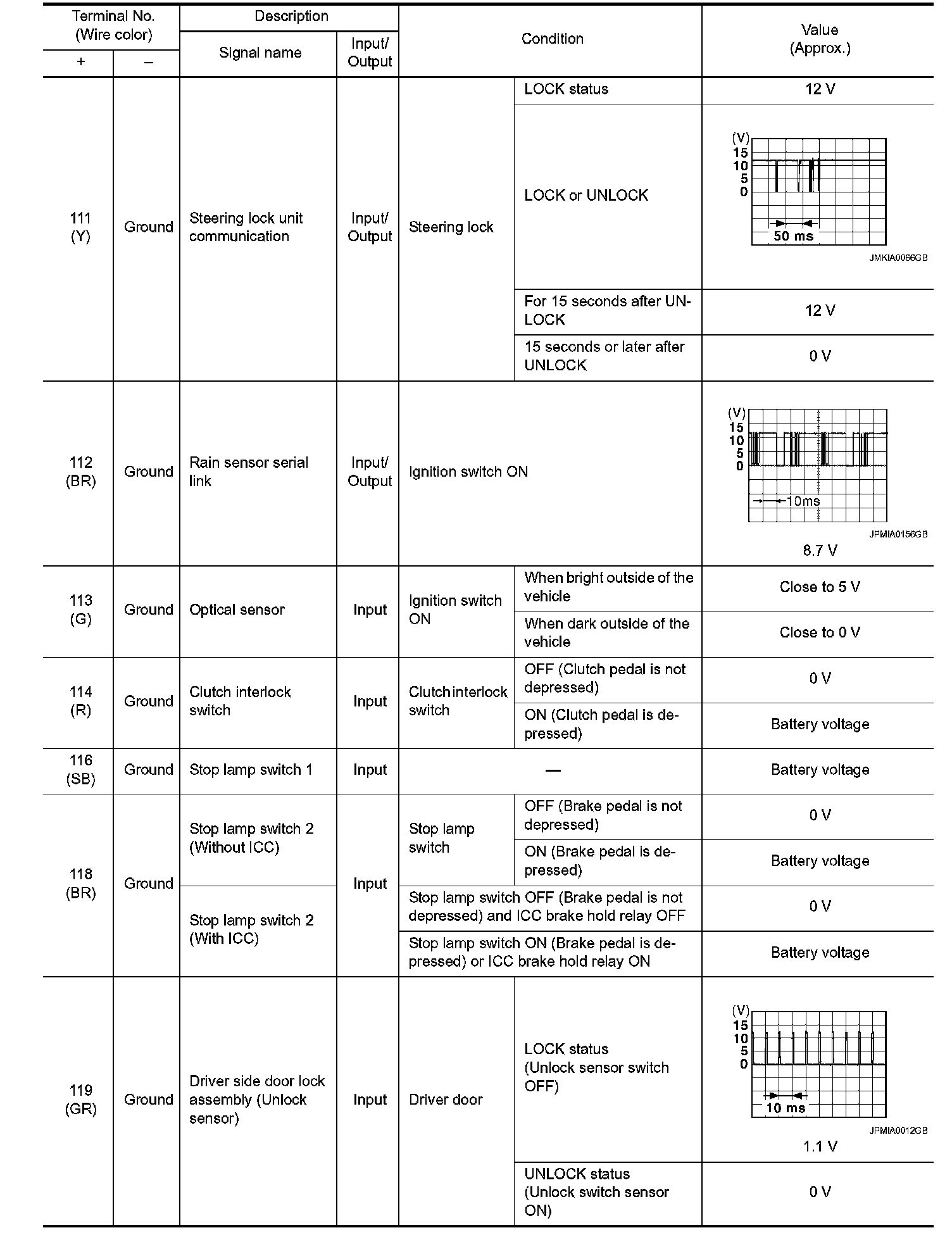

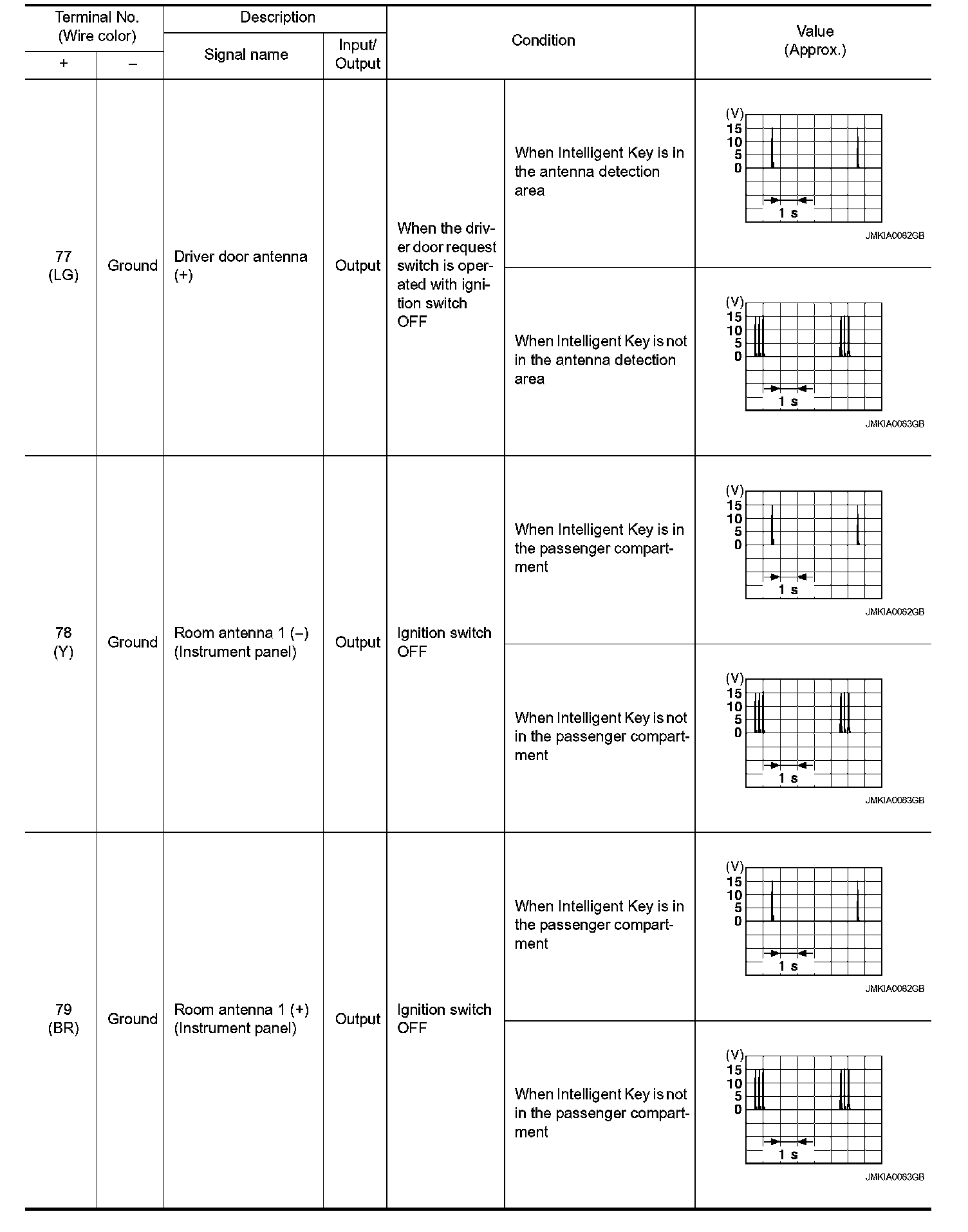

PHYSICAL VALUES
