Component Inspection

DOOR SWITCH


Component Inspection

1.CHECK DOOR SWITCH
1. Turn ignition switch OFF.
2. Disconnect malfunctioning door switch connector.

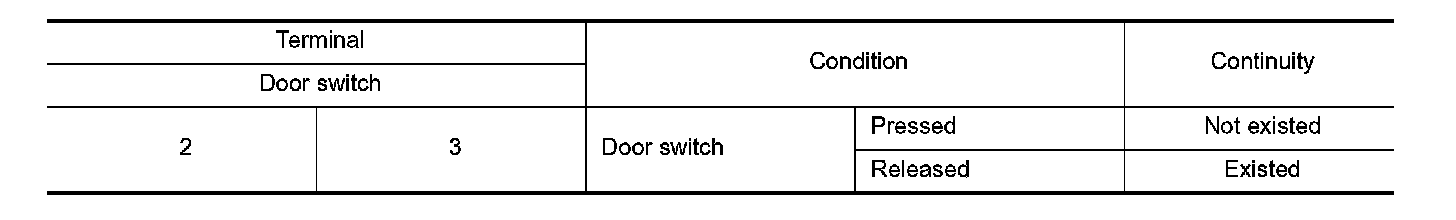

3. Check continuity between door switch terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace malfunction door switch. Service and Repair.
