Component Function Check

DOOR REQUEST SWITCH


Component Function Check

1.CHECK FUNCTION

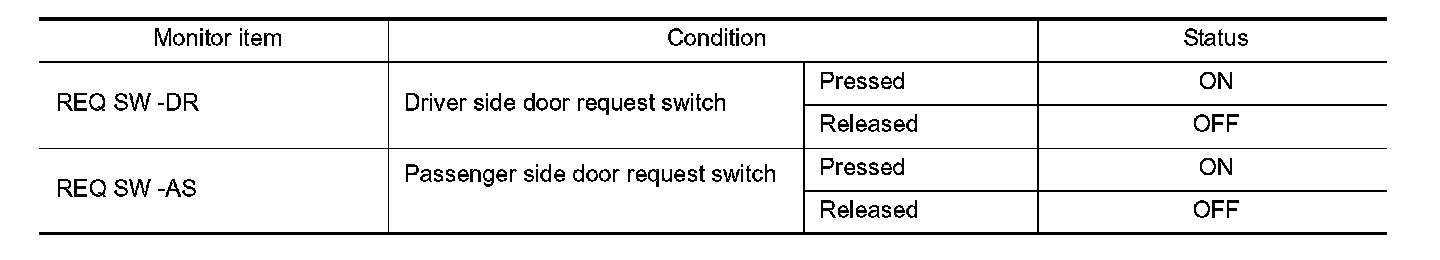

Check ("REQ SW -DR" or "REQ SW -AS") in BCM "Data Monitor" mode using CONSULT-III.





Is the inspection result normal?
YES - Door request switch is OK.
NO - Diagnosis Procedure.
