Diagnosis Procedure

DOOR LOCK ACTUATOR


PASSENGER SIDE : Description

Locks/unlocks the door with the signal from BCM.




DOOR LOCK ACTUATOR


PASSENGER SIDE : Diagnosis Procedure

1.CHECK DOOR LOCK ACTUATOR INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect passenger side door lock assembly connector.

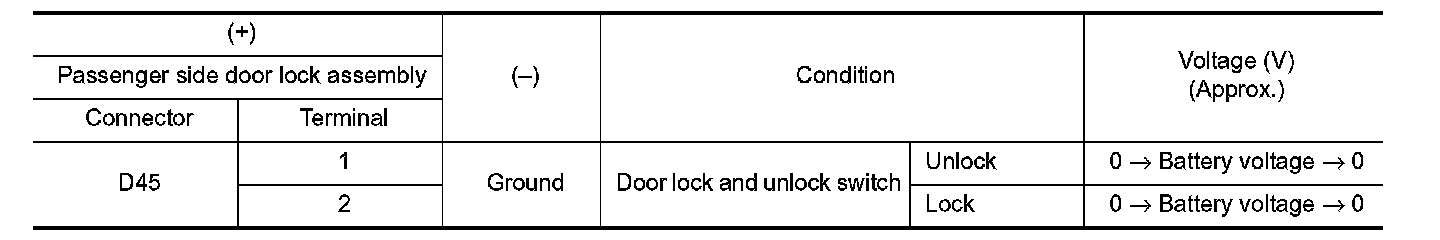

3. Check voltage between passenger side door lock assembly harness connector and ground.





Is the inspection result normal?
YES - Replace passenger side door lock assembly. Removal and Installation.
NO - GO TO 2.
2.CHECK DOOR LOCK ACTUATOR CIRCUIT
1. Disconnect BCM connector, driver side door lock assembly connector and fuel lid lock actuator connector.

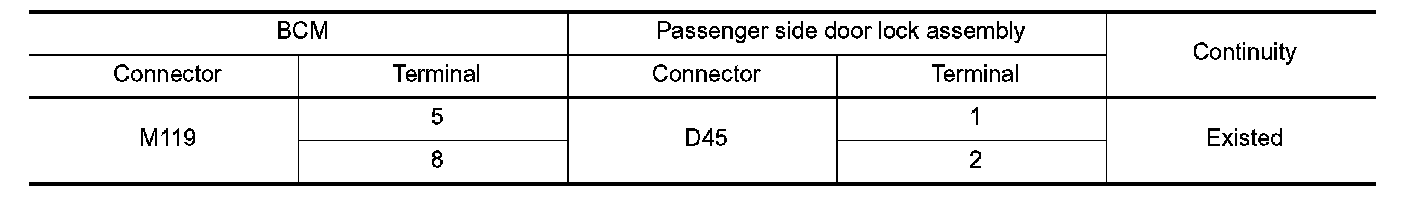

2. Check continuity between BCM harness connector and passenger side door lock assembly harness connector.

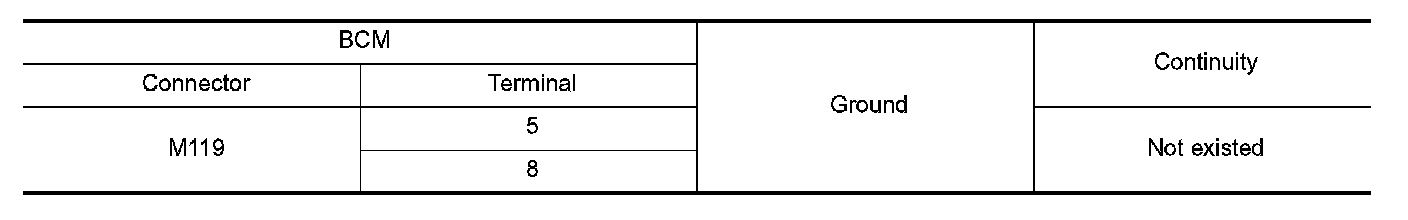

3. Check continuity between BCM harness connector and ground.





Is the inspection result normal?
YES - Replace BCM. Removal and Installation.
NO - Repair or replace harness.
