Component Inspection

DOOR KEY CYLINDER SWITCH


Component Inspection


COMPONENT INSPECTION
1.CHECK DOOR KEY CYLINDER SWITCH
1. Turn ignition switch OFF.
2. Disconnect driver side door lock assembly terminal.

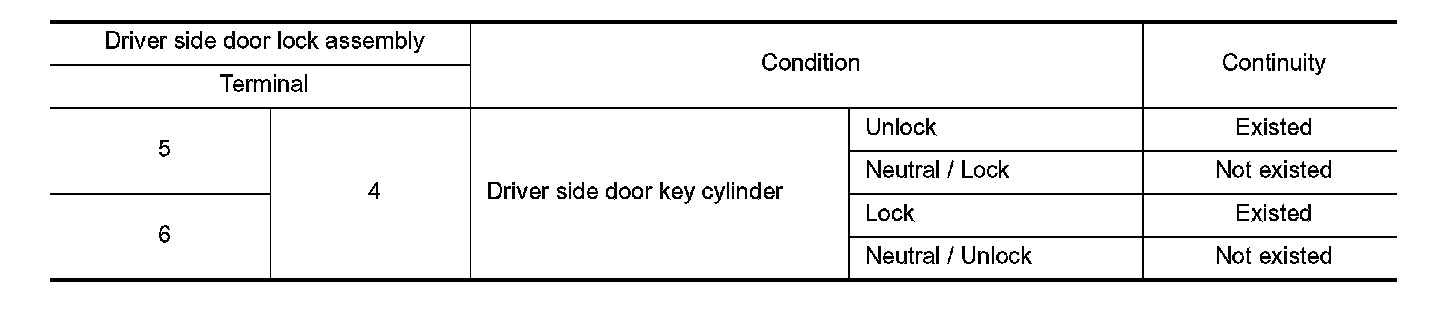

3. Check continuity between driver side door lock assembly terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace door key cylinder switch (driver side door lock assembly). Removal and Installation.
