Component Function Check

TRUNK LID OPENER SWITCH


Component Function Check

1.CHECK TRUNK LID OPENER CANCEL SWITCH
Check trunk lid opener cancel switch position.
Does trunk lid opener cancel switch turn ON (CANCEL)?
YES - Turn off trunk lid opener cancel switch.
NO - GO TO 2.
2.CHECK FUNCTION

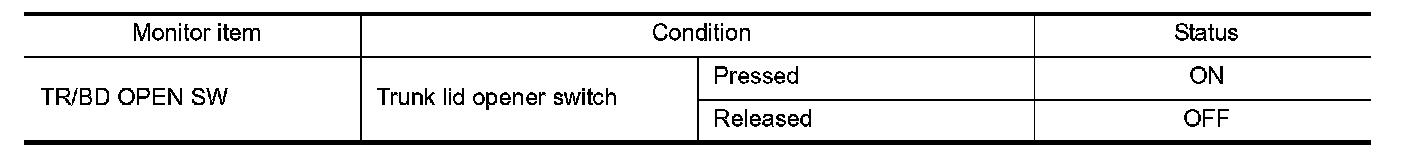

Check ("TR/BD OPEN SW") in BCM "Data Monitor" mode using CONSULT-III.





Is the inspection result normal?
YES - Trunk lid opener switch is OK.
NO - Diagnosis Procedure.
