Component Function Check

TRUNK LID OPENER REQUEST SWITCH


Component Function Check

1.CHECK TRUNK LID OPENER CANCEL SWITCH
Check trunk lid opener cancel switch position.
Does trunk lid opener cancel switch turn ON (CANCEL)?
YES - Turn off trunk lid opener cancel switch.
NO - GO TO 2.
2.CHECK FUNCTION

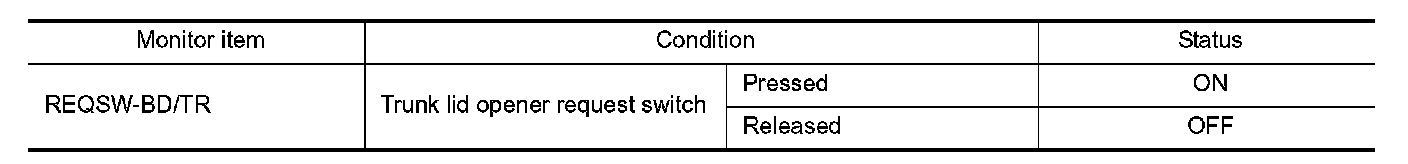

Check ("REQSW-BD/TR") in BCM "Data Monitor" mode using CONSULT-III.





Is the inspection result normal?
YES - Trunk lid opener request switch is OK.
NO - Diagnosis Procedure.
