Diagnosis Procedure

STRIKER SWITCH


Description

It is integrated in trunk closure assembly and detects open/close state of trunk lid.




STRIKER SWITCH


Diagnosis Procedure

1.CHECK STRIKER SWITCH INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect striker switch connector.

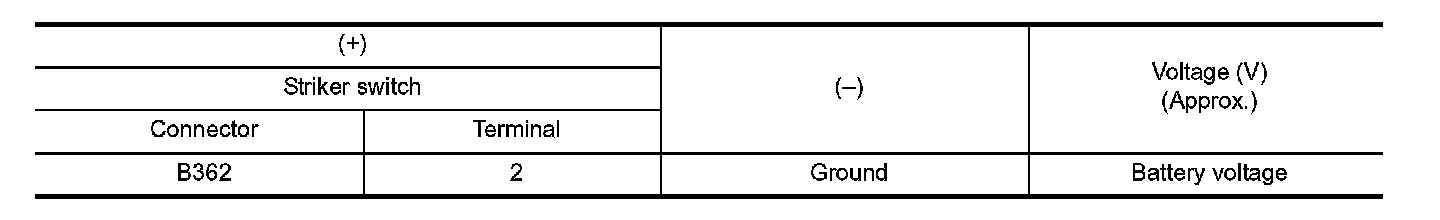

3. Check voltage between striker switch harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - GO TO 2.
2.CHECK STRIKER SWITCH CIRCUIT
1. Disconnect trunk closure control unit connector.

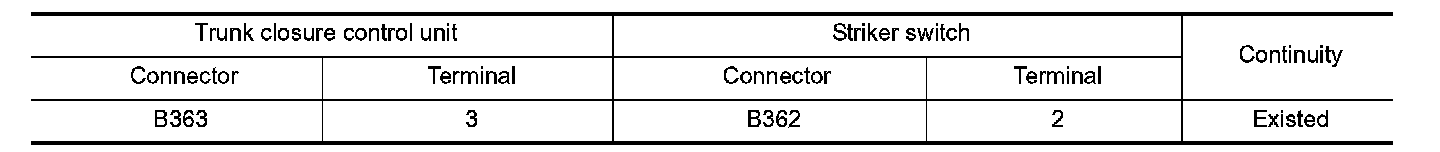

2. Check continuity between trunk closure control unit harness connector and striker switch harness connector.





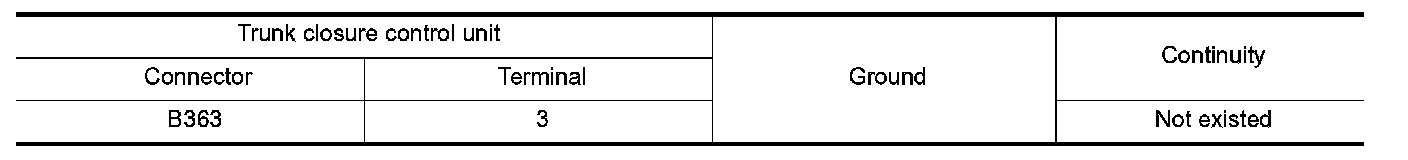

3. Check continuity between trunk closure control unit harness connector and ground.





Is the inspection result normal?
YES - Replace trunk closure control unit. Removal and Installation.
NO - Repair or replace harness.
3.CHECK STRIKER SWITCH GROUND CIRCUIT

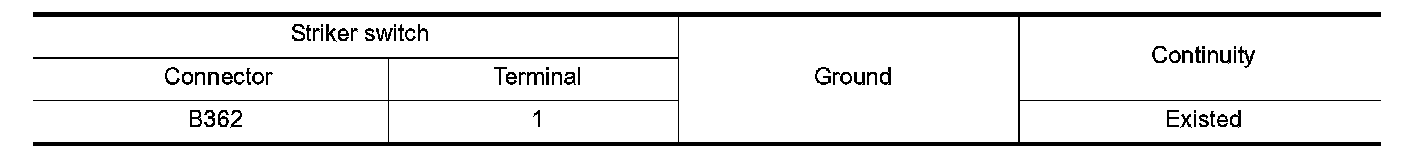

Check continuity between striker switch harness connector and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace harness.
4.CHECK STRIKER SWITCH
Component Inspection.
Is the inspection result normal?
YES - GO TO 5.
NO - Replace striker switch (trunk closure assembly). Removal and Installation.
5.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END
