Component Inspection

STRIKER SWITCH


Component Inspection

1.CHECK STRIKER SWITCH
1. Turn ignition switch OFF.
2. Disconnect striker switch connector.

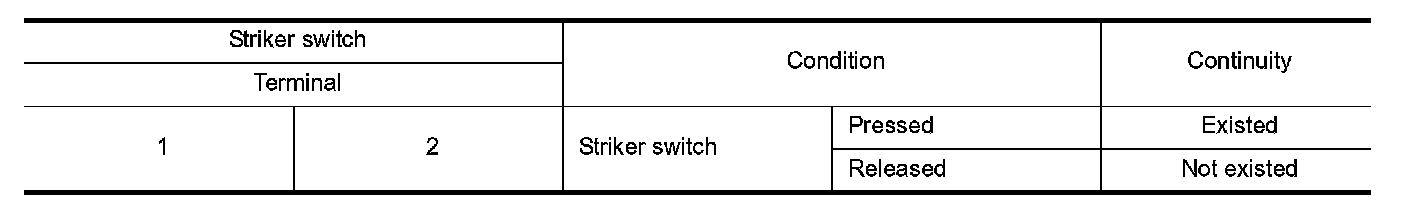

3. Check continuity between striker switch terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace striker switch (trunk closure assembly). Removal and Installation.
