Component Inspection

INTELLIGENT KEY WARNING BUZZER


Component Inspection

1.CHECK INTELLIGENT KEY WARNING BUZZER
1. Turn ignition switch OFF.
2. Disconnect Intelligent Key warning buzzer connector.

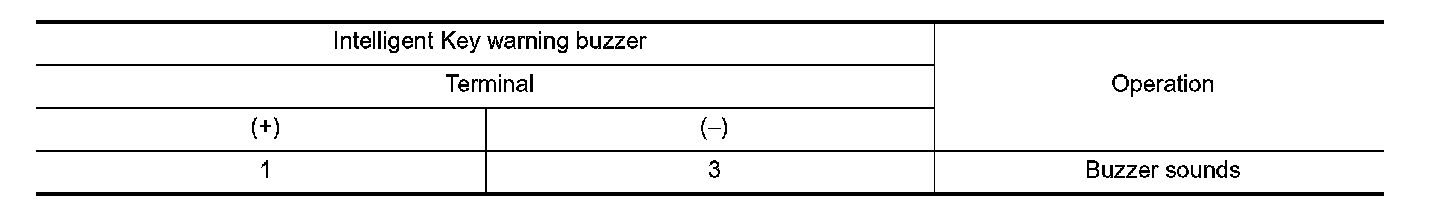

3. Connect battery power supply directly to Intelligent Key warning buzzer terminals and check the operation.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace Intelligent Key warning buzzer. Removal and Installation.
