Removal and Installation





INSIDE KEY ANTENNA


INSTRUMENT CENTER : Removal and Installation


REMOVAL
1. Remove the console finisher. A/T Models.

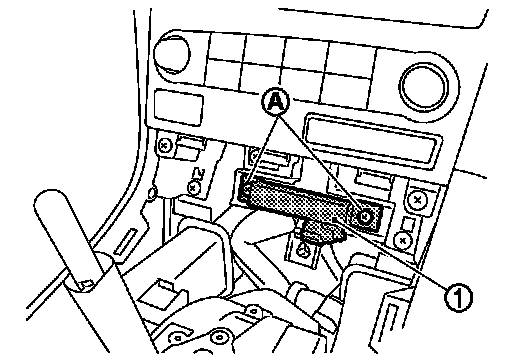

2. Remove the key slot mounting screw (A), and then remove inside key antenna (instrument center) (1).

INSTALLATION
Install in the reverse order of removal.
