A/T Models

CENTER CONSOLE ASSEMBLY


A/T MODELS : Disassembly and Assembly


CAUTION:
When disassembling, always use a remover tool that is made of plastic.

DISASSEMBLY
1. Remove center console assembly. A/T Models.

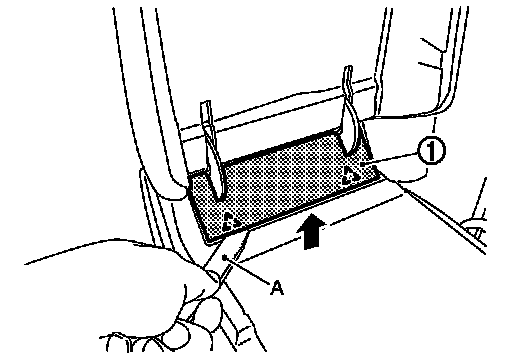

2. Remove console mask.
- Open the console lid.
- Remove console mask (1) fixing pawls with remover tool (A).

Triangle: Pawl

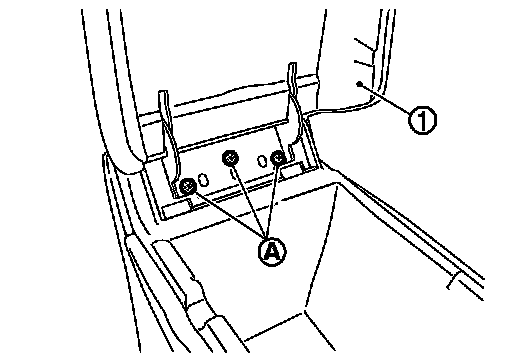

3. Remove console lid assembly (1) fixing screws (A), and then remove console lid assembly.

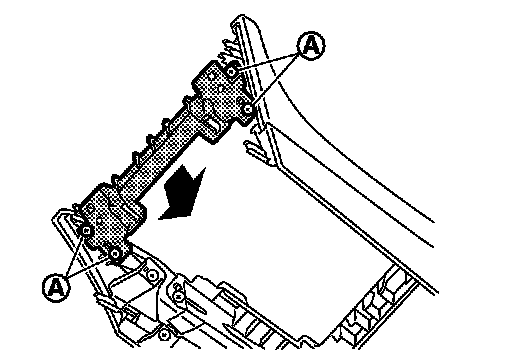

4. Remove console front bracket.
- Remove console front bracket fixing screws (A).
- Pull the console front bracket toward the direction of the arrow.

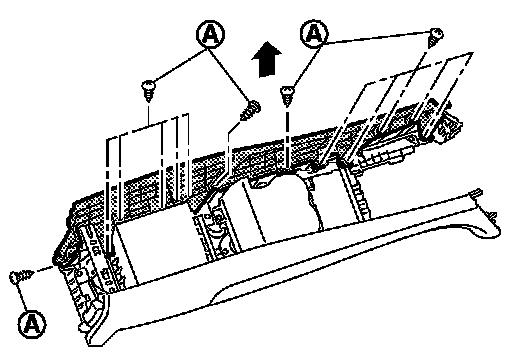

5. Remove console body RH.
- Remove console body RH fixing screws (A).
- Pull the console body RH toward the direction of the arrow.

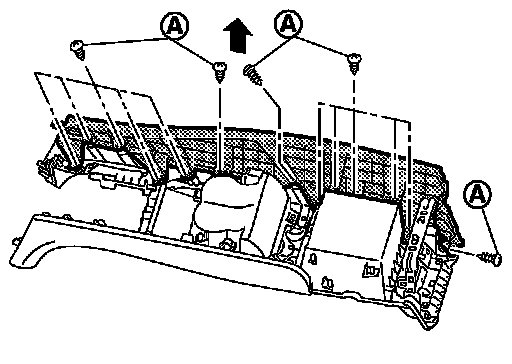

6. Remove console body LH.
- Remove console body LH fixing screws (A).
- Pull the console body LH toward the direction of the arrow.





7. Remove console reinforcement.
- Remove console reinforcement fixing screws (A).
- Pull the console reinforcement toward the direction of the arrow.





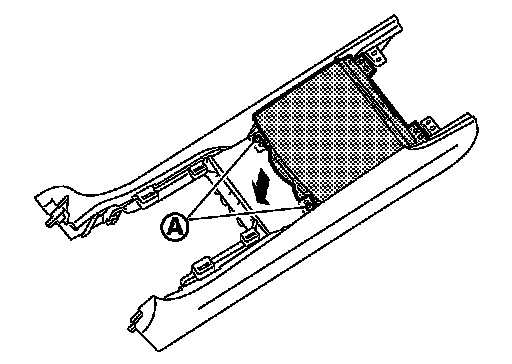

8. Remove console box assembly.
- Remove console box assembly fixing screws (A).
- Pull the console box assembly toward the direction of the arrow.

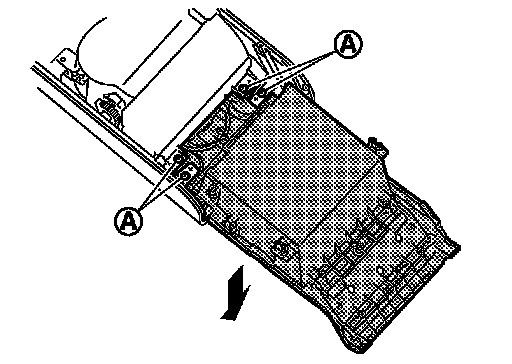

9. Remove cup holder assembly.
- Remove cup holder assembly fixing screws (A).
- Pull the cup holder assembly toward the direction of the arrow.

ASSEMBLY
Assemble in the reverse order of disassembly.
