Symptom Related Diagnostic Procedures

COMBINATION SWITCH SYSTEM SYMPTOMS

Symptom Table

1. Perform "Data Monitor" of CONSULT-III to check for any malfunctioning item.

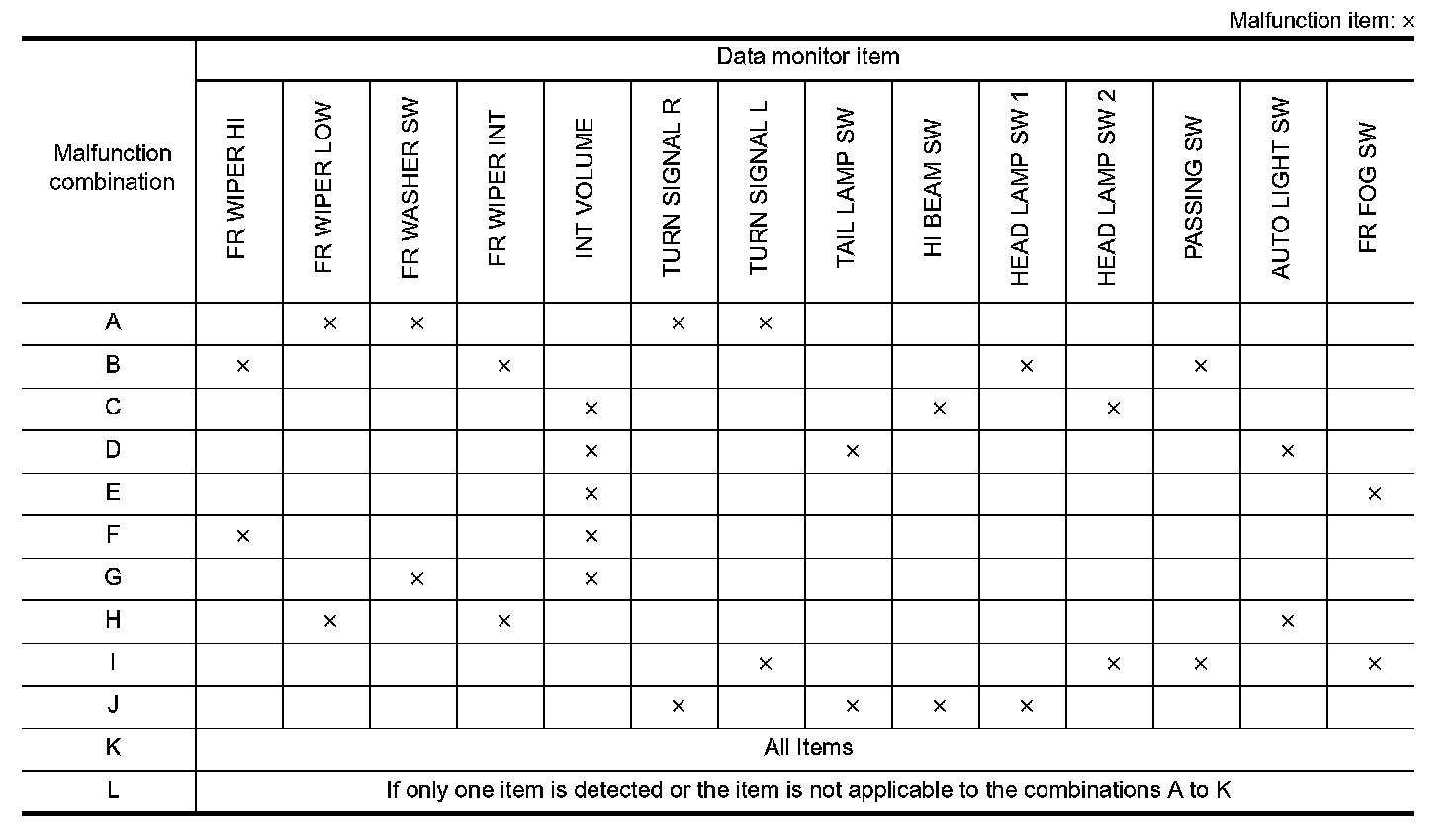

2. Check the malfunction combinations.

Symptom Table:

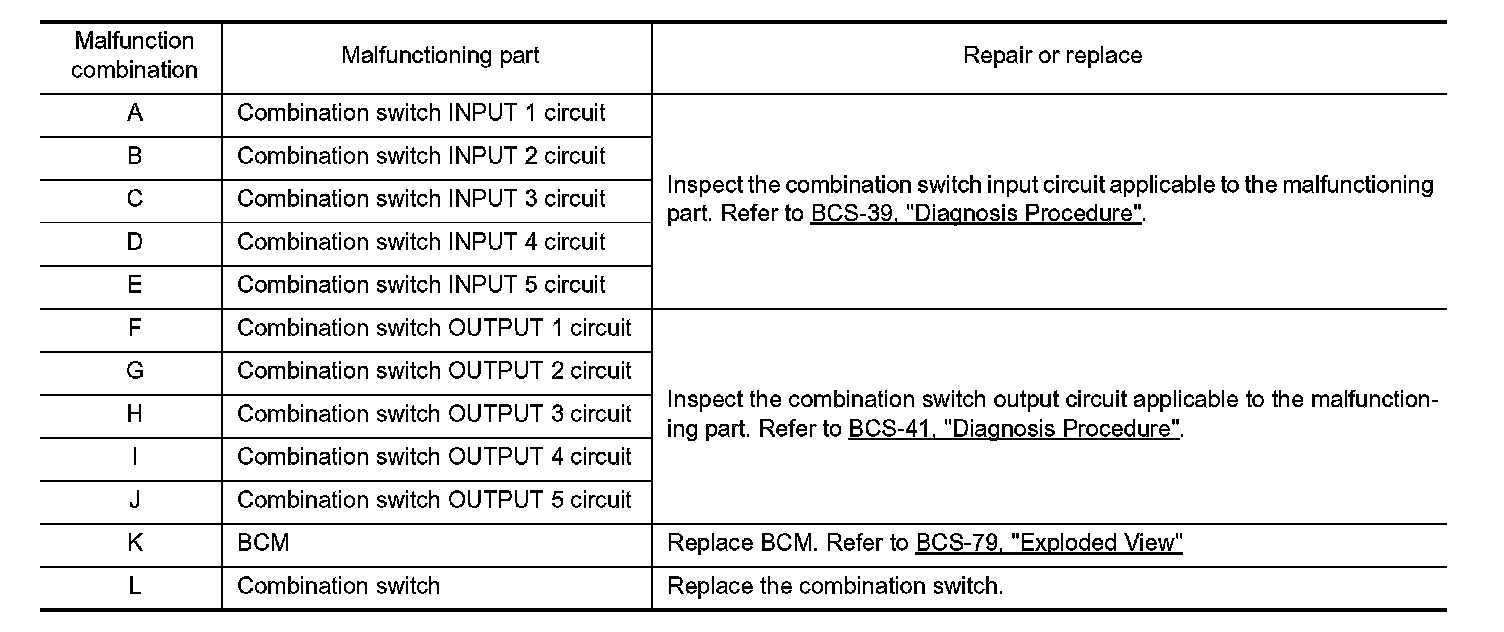

3. Identify the malfunctioning part from the agreed combination and repair or replace the part.
