Home >> Infiniti >> 2010 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Satellite Radio Tuner >> Bose Audio

Bose Audio

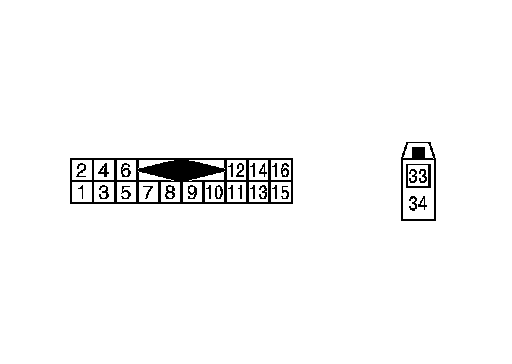

SATELLITE RADIO TUNER

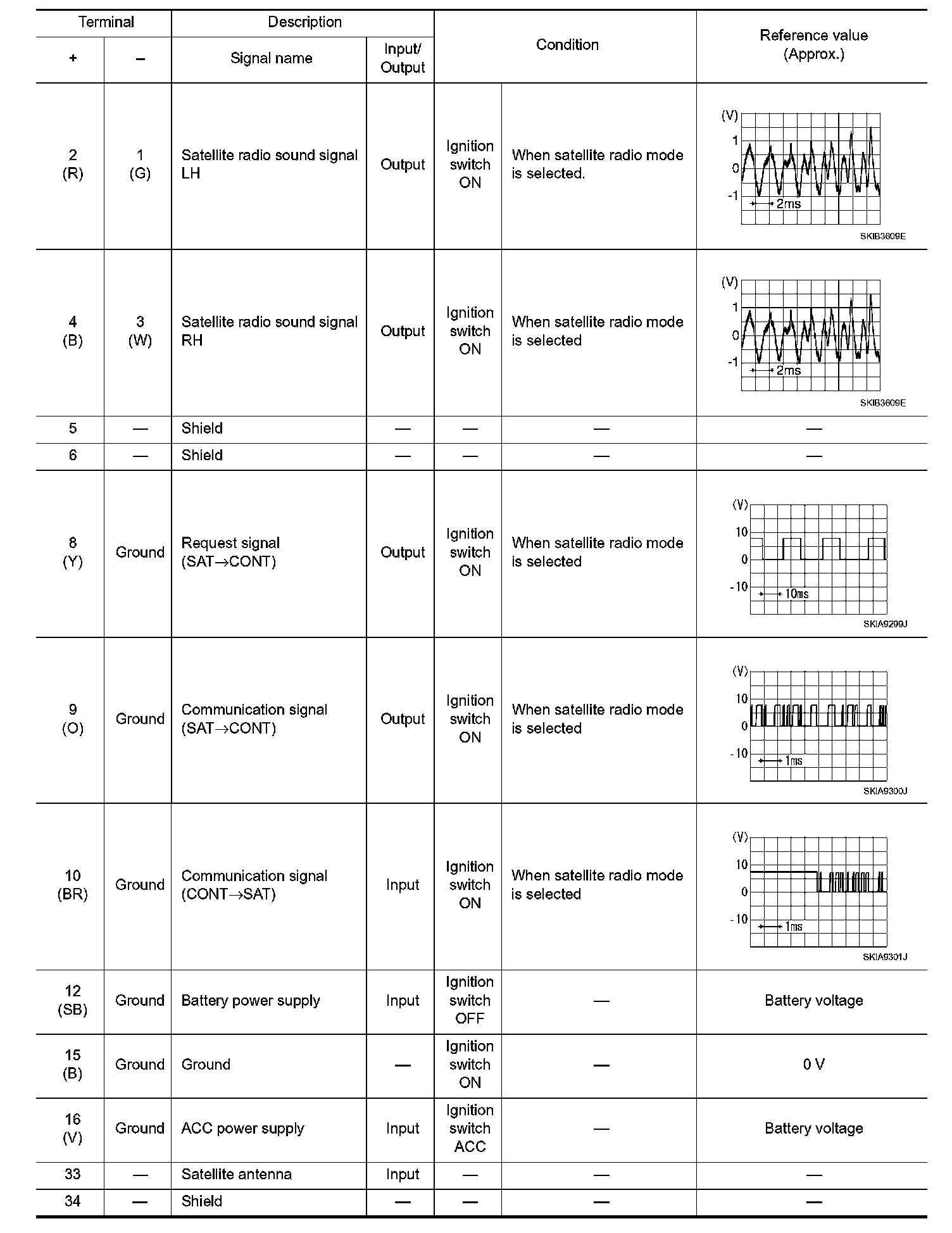

Reference Value


PHYSICAL VALUES
