With Navigation





STEERING SWITCH SIGNAL A CIRCUIT


Component Inspection

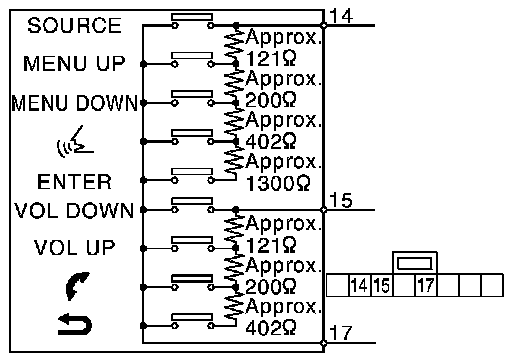

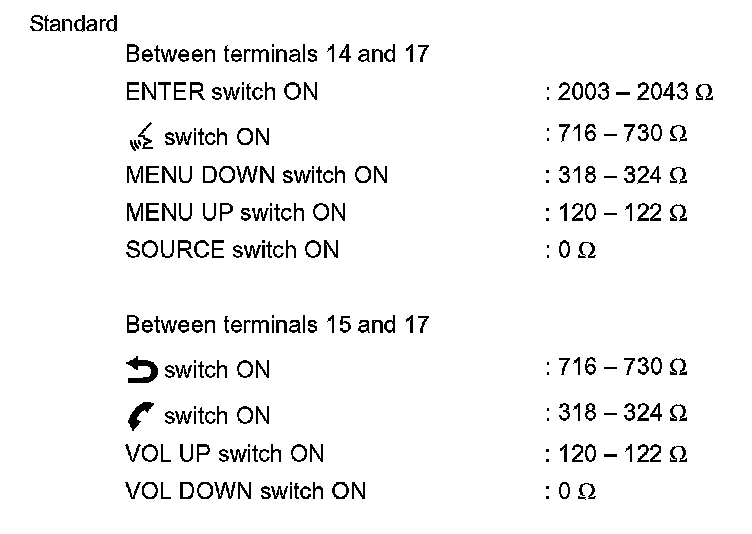

Measure the resistance between the steering switch connector terminals 14 to 17 and 15 to 17.
