Base Audio

STEERING SWITCH GROUND CIRCUIT

Component Inspection

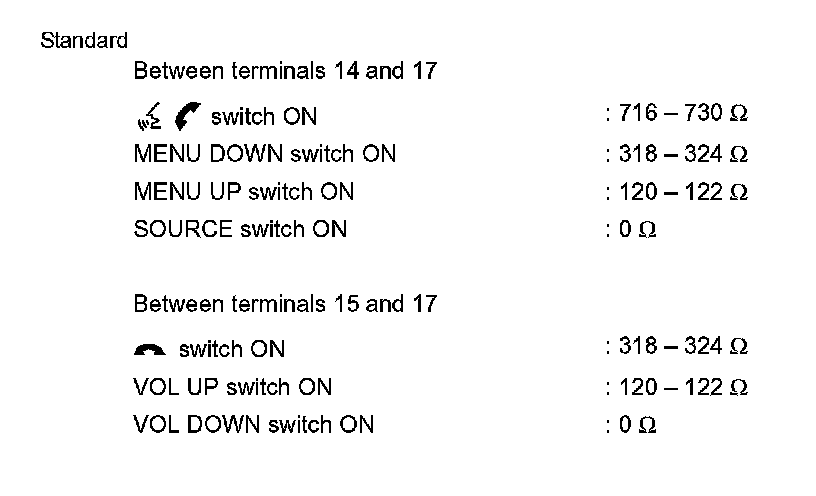

Measure the resistance between the steering switch connector terminals 14 to 17 and 15 to 17.
