Component Function Check

TILT SENSOR


Component Function Check

1.CHECK FUNCTION
1. Turn ignition switch ON.
2. Select "TILT SEN" in the "Data monitor" mode using CONSULT-III.

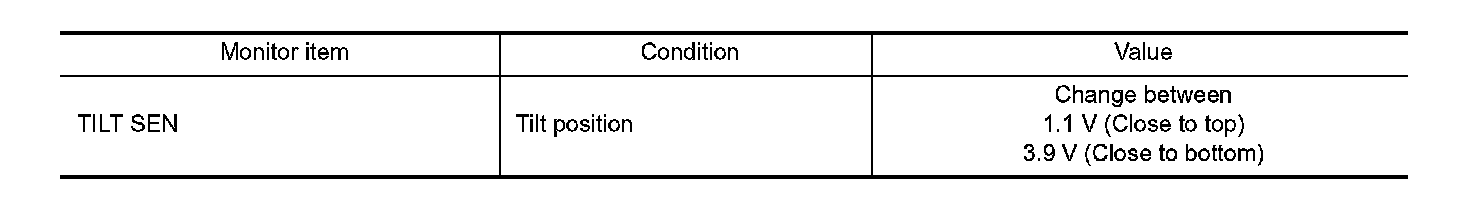

3. Check the tilt sensor signal under the following condition.





Is the indication normal?
YES - INSPECTION END
NO - Perform diagnosis procedure. Diagnosis Procedure.
