Component Function Check

SLIDING SENSOR


Component Function Check

1.CHECK FUNCTION
1. Turn ignition switch ON.
2. Select "SLIDE PULSE" in the "Data monitor" mode using CONSULT-III.

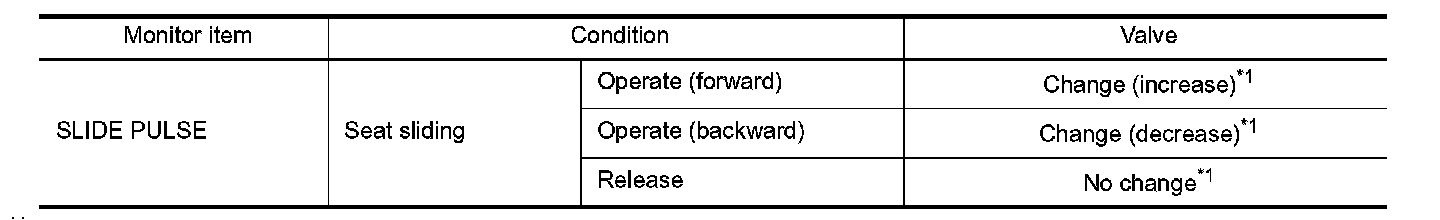

3. Check sliding sensor signal under the following conditions.





Is the indication normal?
YES - INSPECTION END
NO - Perform diagnosis procedure. Diagnosis Procedure.
