Component Function Check

LIFTING MOTOR (FRONT)


Component Function Check

1.CHECK FUNCTION
1. Turn ignition switch ON.

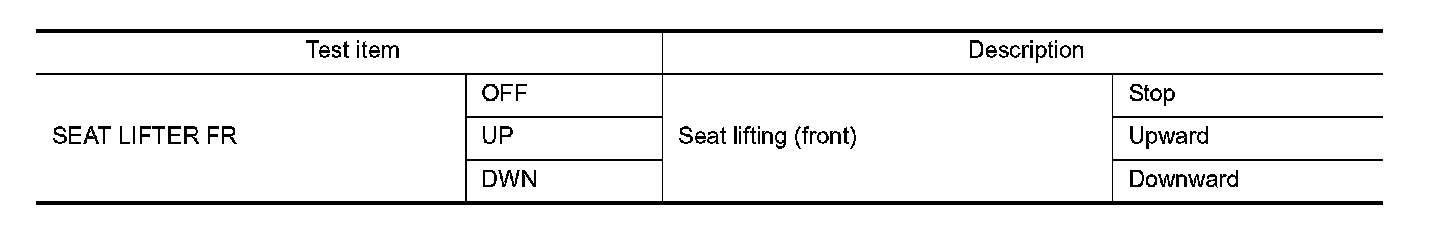

2. Select "SEAT LIFTER FR" in "Active test" mode using CONSULT-III.
3. Check the lifting motor (front) operation.





Is the operation of relevant parts normal?
YES - INSPECTION END
NO - Perform diagnosis procedure. Diagnosis Procedure.
