Without Navigation

MULTI AV SYSTEM SYMPTOMS

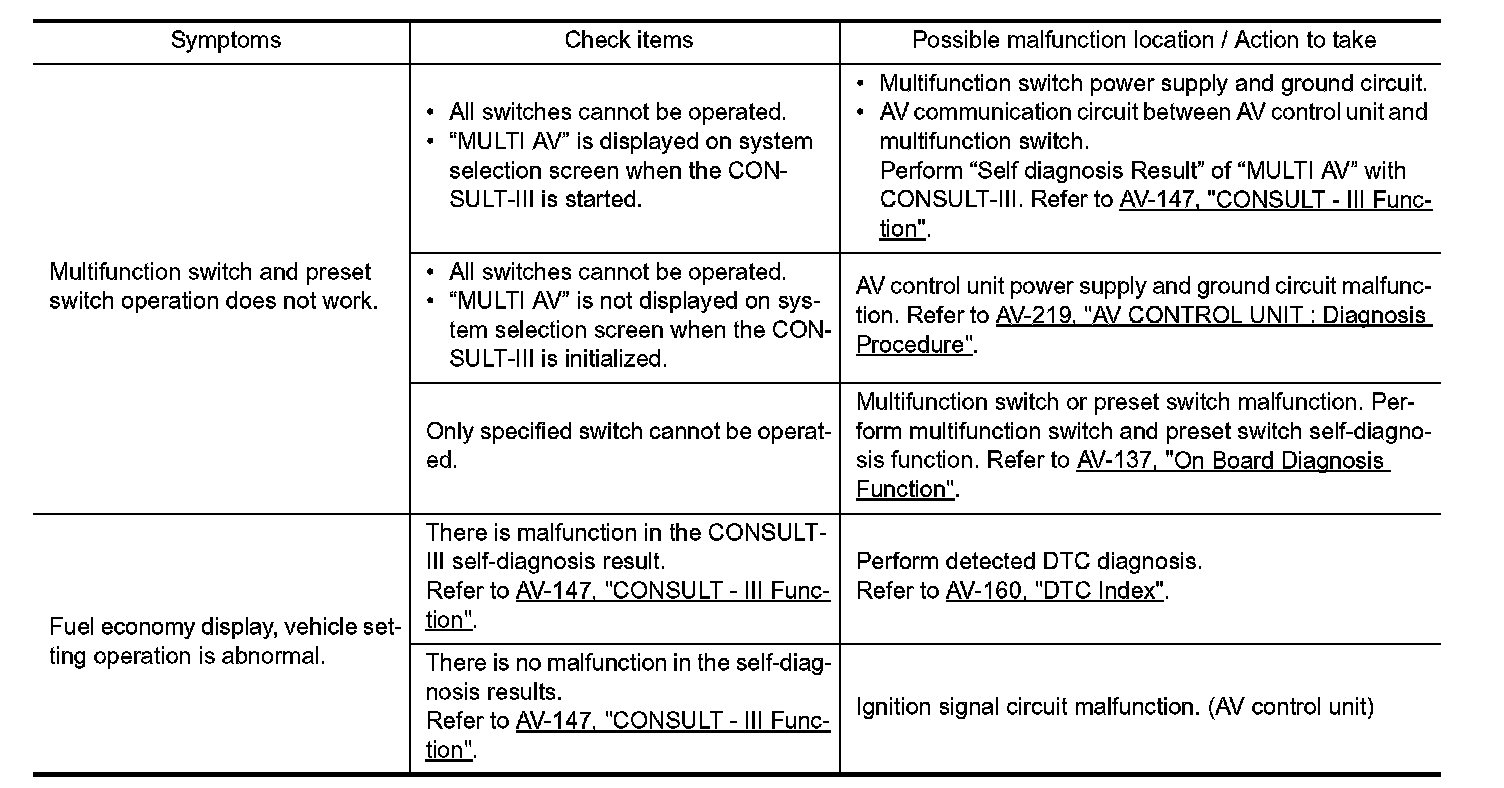

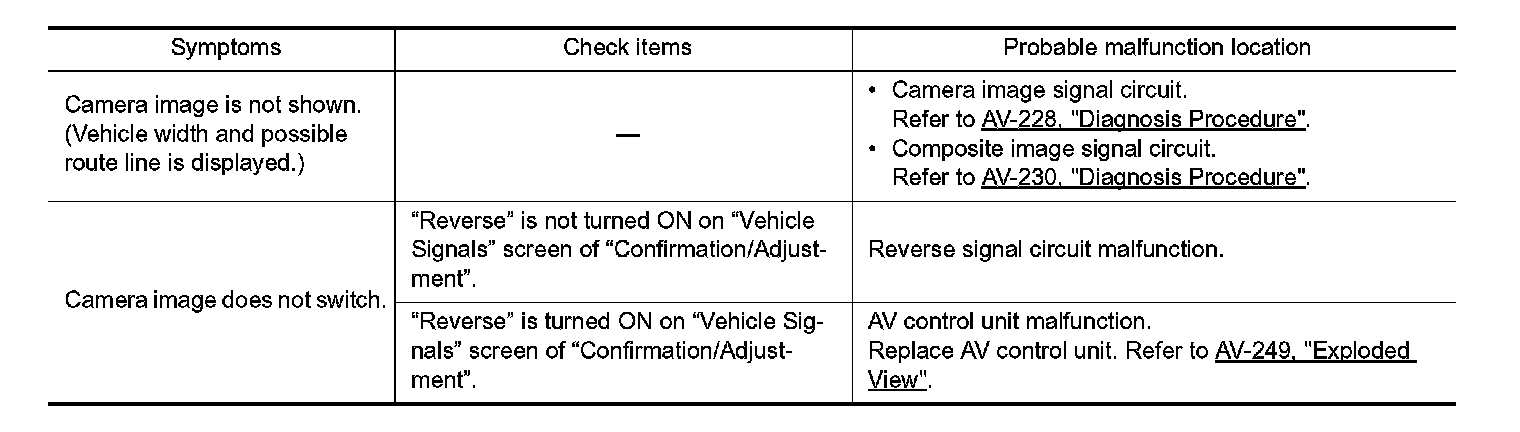

Symptom Table

OPERATION

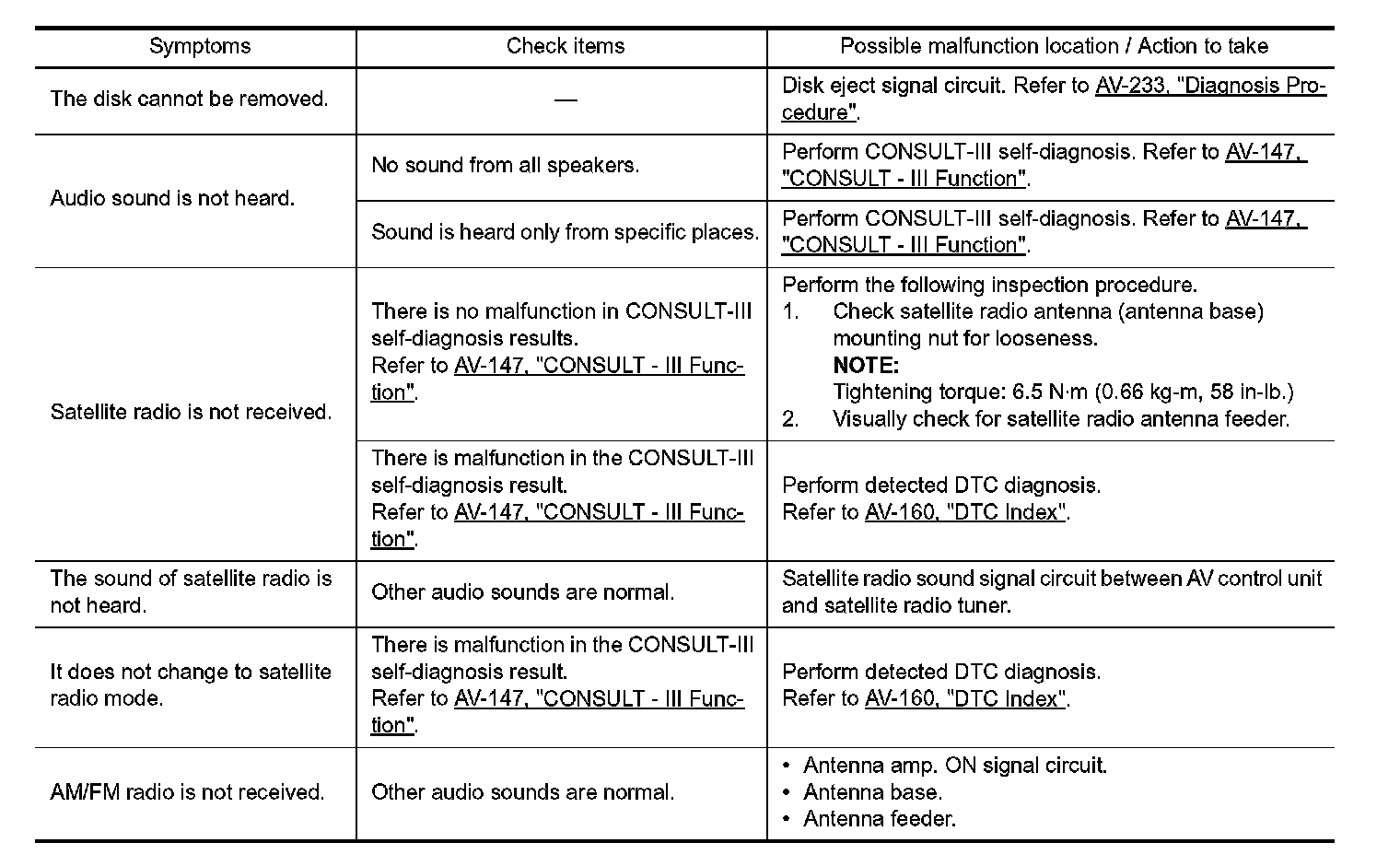

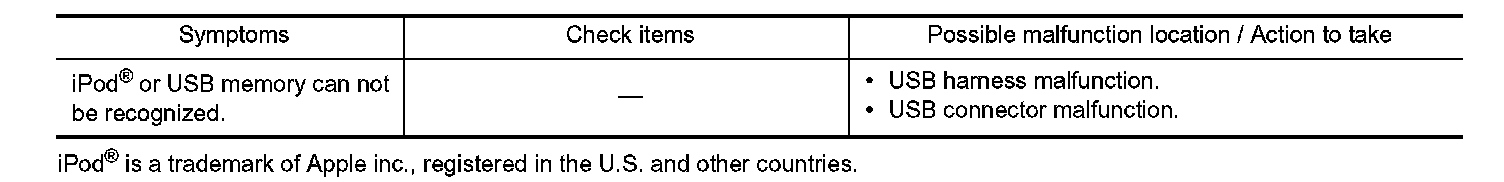

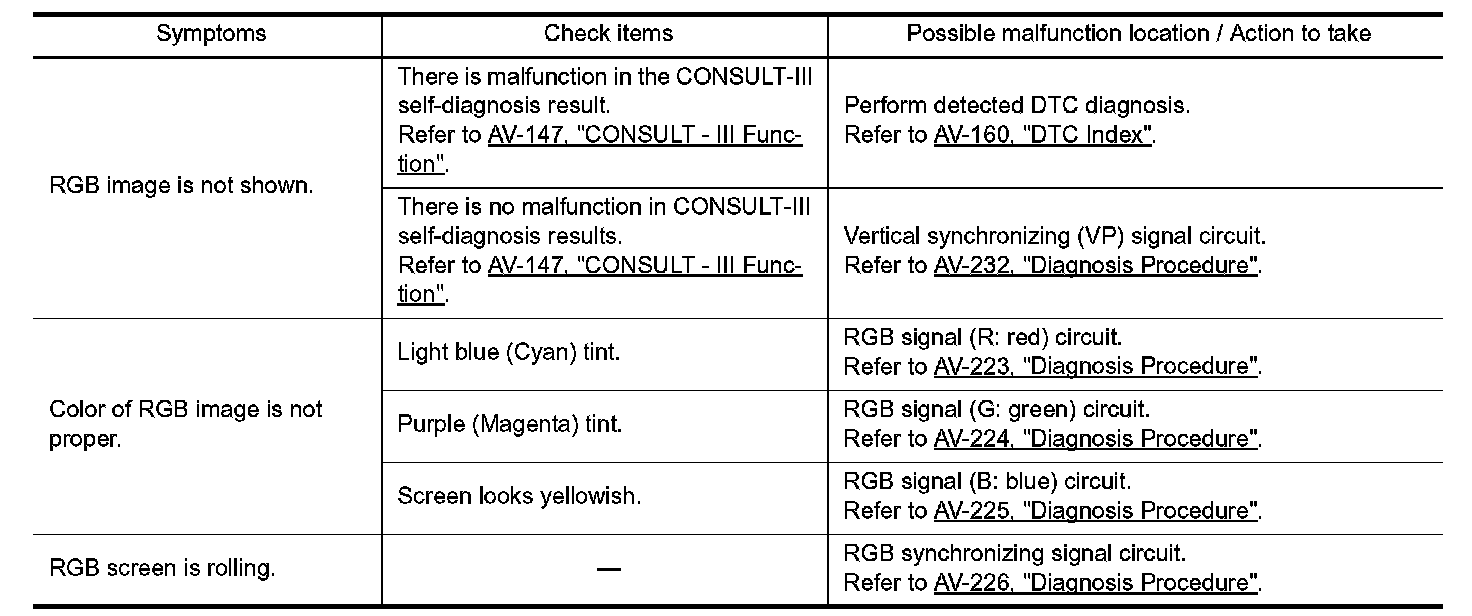

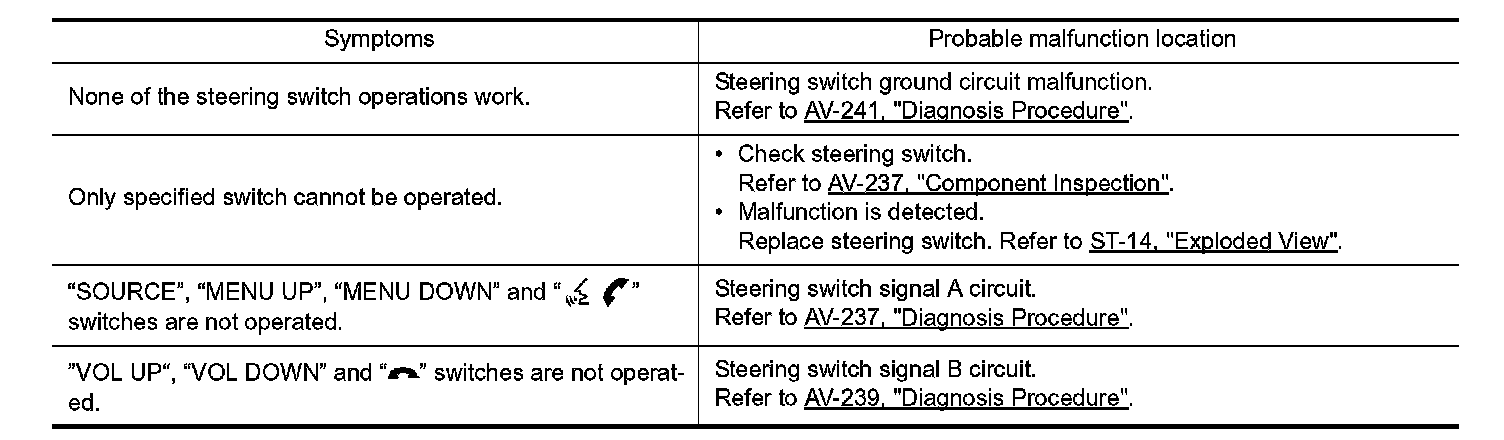

Symptom Table:

RELATED TO HANDS-FREE PHONE

Simple Check for Bluetooth Communication
If cellular phone and AV control unit cannot be connected with Bluetooth communication, following procedure allows the technician to judge which device has malfunction.
1. Turn on a cellular phone, not connecting Bluetooth communication.
2. Start CONSULT-III, then start Windows�.
3. Set CONSULT-III near a cellular phone.

4. When operated Bluetooth registration by cellular phone, check if CONSULT-III* would be displayed on the device name.
(If other Bluetooth device is located near cellular phone, a name of the device would be displayed also.)

NOTE:
*:Displayed device name is "NISSAN- ".
- If no device name is displayed, cellular phone is malfunctioning.
Repair the cellular phone first, then perform diagnosis.
- If CONSULT-III is displayed on device name, cellular phone is normal. Perform diagnosis as per the following table.

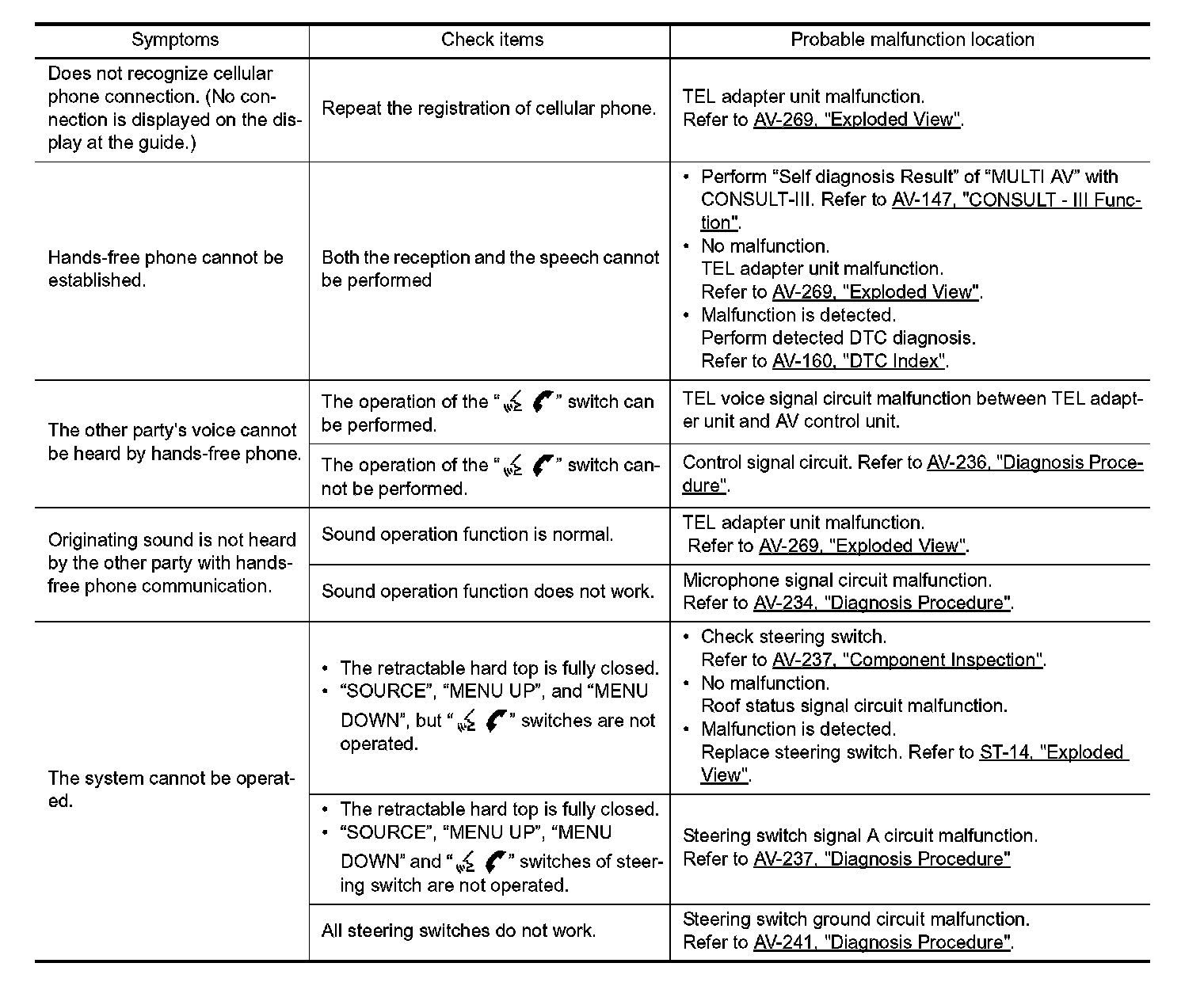

Trouble Diagnosis Chart by Symptom
