MULTI AV SYSTEM SYMPTOMS
Symptom Table
RELATED TO NAVIGATION
Symptom Table - Related To Navigation:
RELATED TO HANDS-FREE PHONE
Simple Check for Bluetooth Communication
If cellular phone and AV control unit cannot be connected with Bluetooth communication, following procedure allows the technician to judge which device has malfunction.
1. Turn ON cellular phone, not connecting Bluetooth communication.
2. Start CONSULT-III, then start Windows�.
3. Set CONSULT-III near a cellular phone.

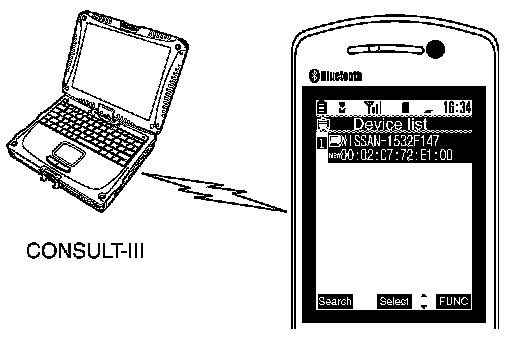

4. When operated Bluetooth registration by cellular phone, check if CONSULT-III* would be displayed on the device name.
(If other Bluetooth device is located near cellular phone, a name of the device would be displayed also.)
NOTE:
*:Displayed device name is "NISSAN- ".
- If no device name is displayed, cellular phone is malfunctioning.
Repair the cellular phone first, then perform diagnosis.
- If CONSULT-III is displayed on device name, cellular phone is normal. Perform diagnosis as per the following table.

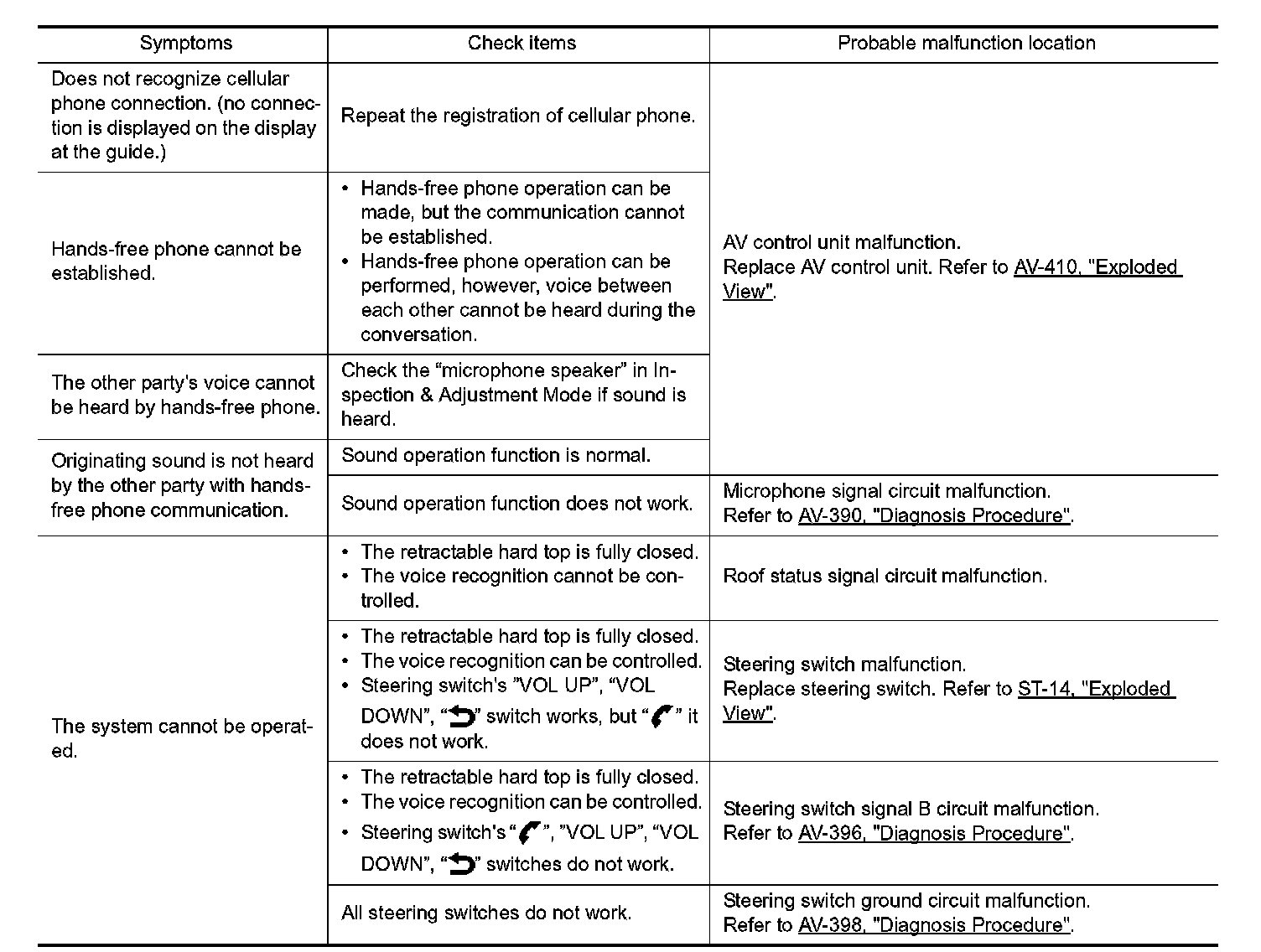

Symptom Table:
RELATED TO RGB IMAGE

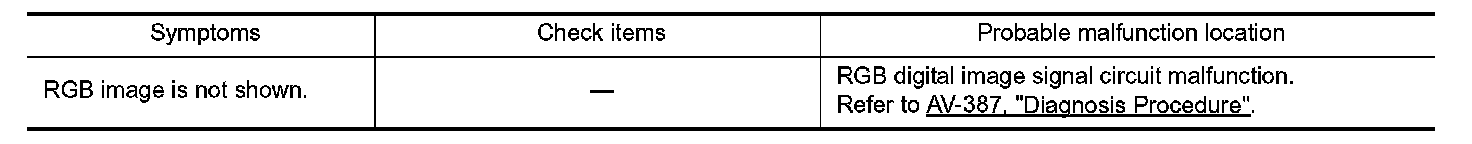

Symptom Table - Related To RGB Image:
RELATED TO VOICE CONTROL

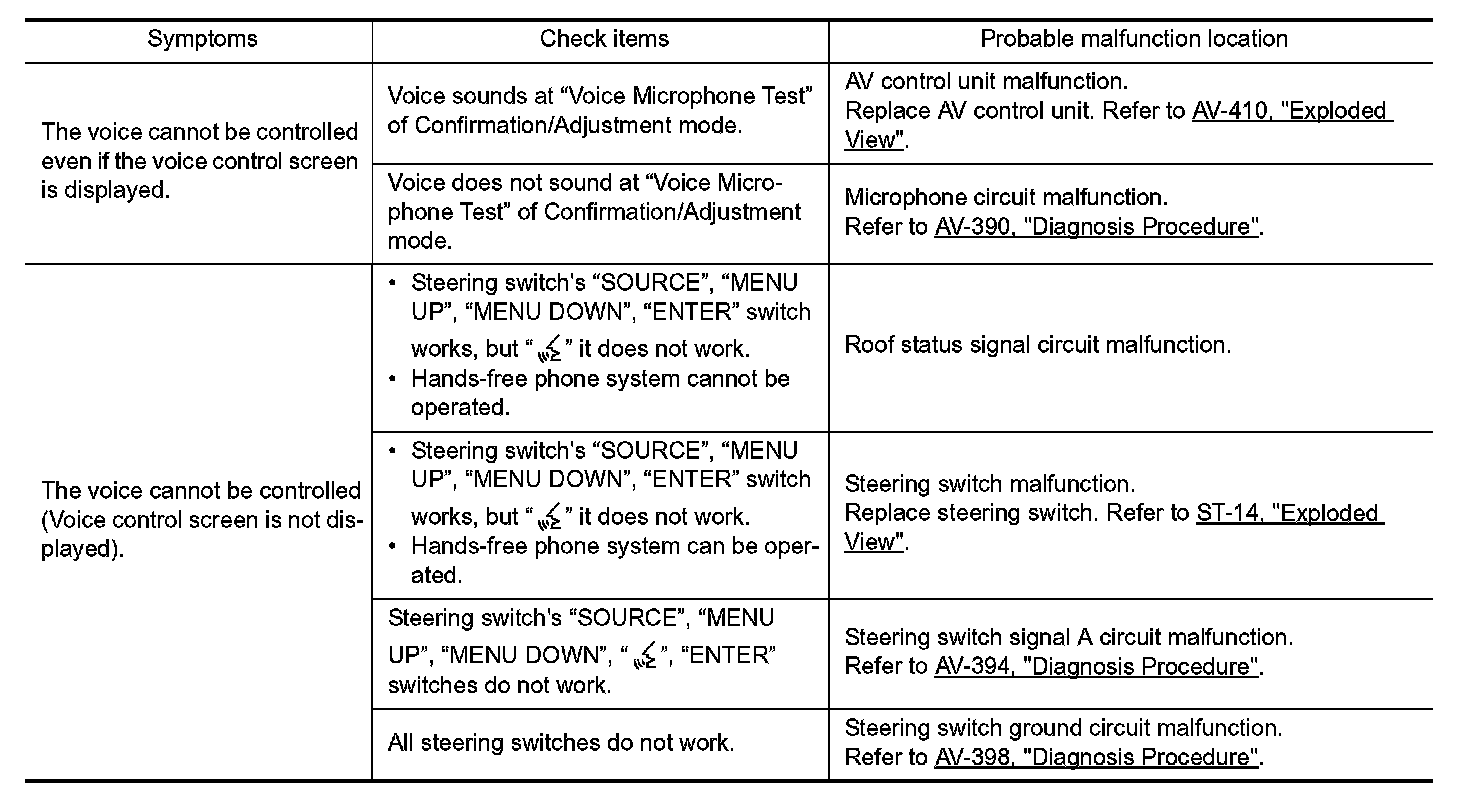

Symptom Table - Related To Voice Control:
RELATED TO AUDIO

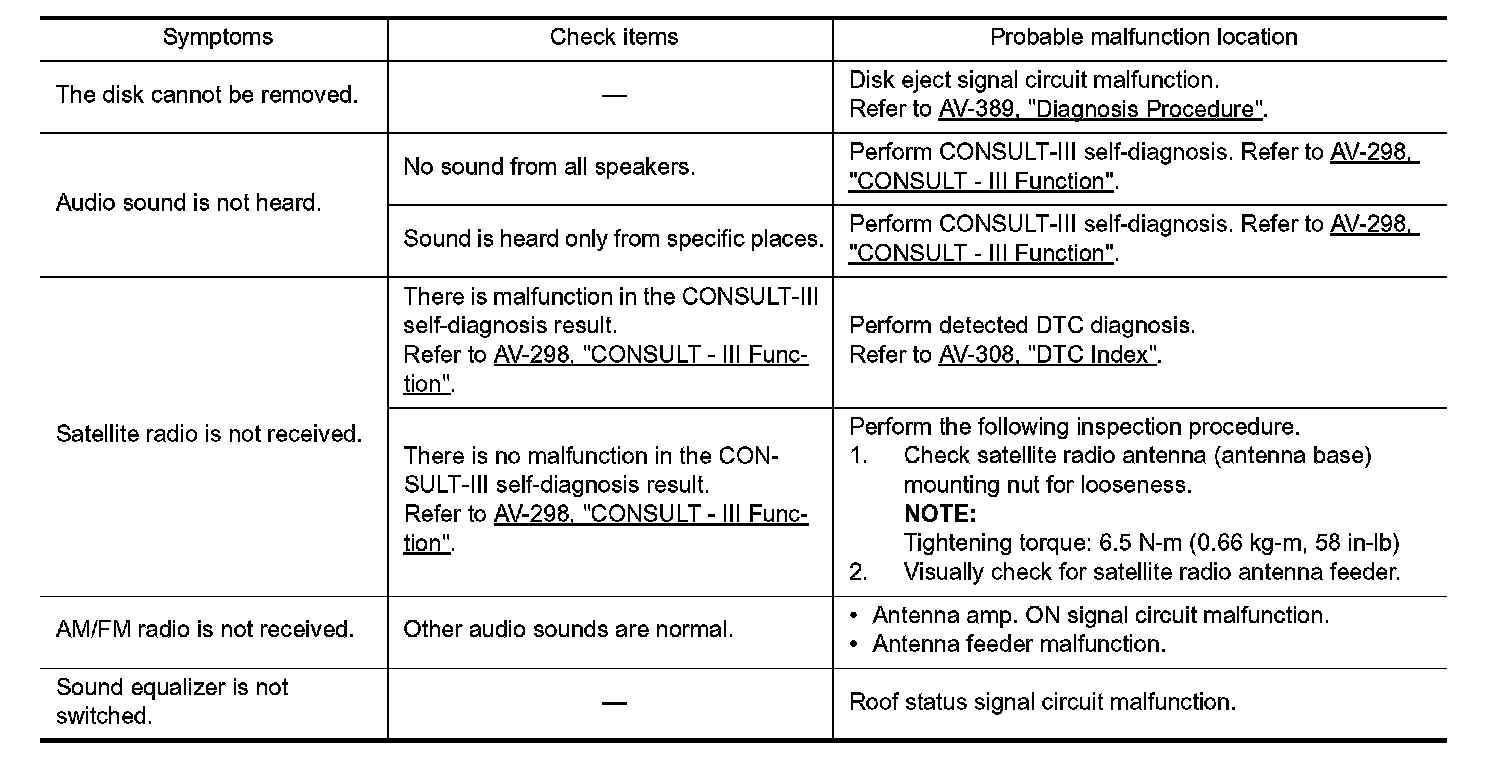

Symptom Table - Related To Audio:
RELATED TO DVD MODE

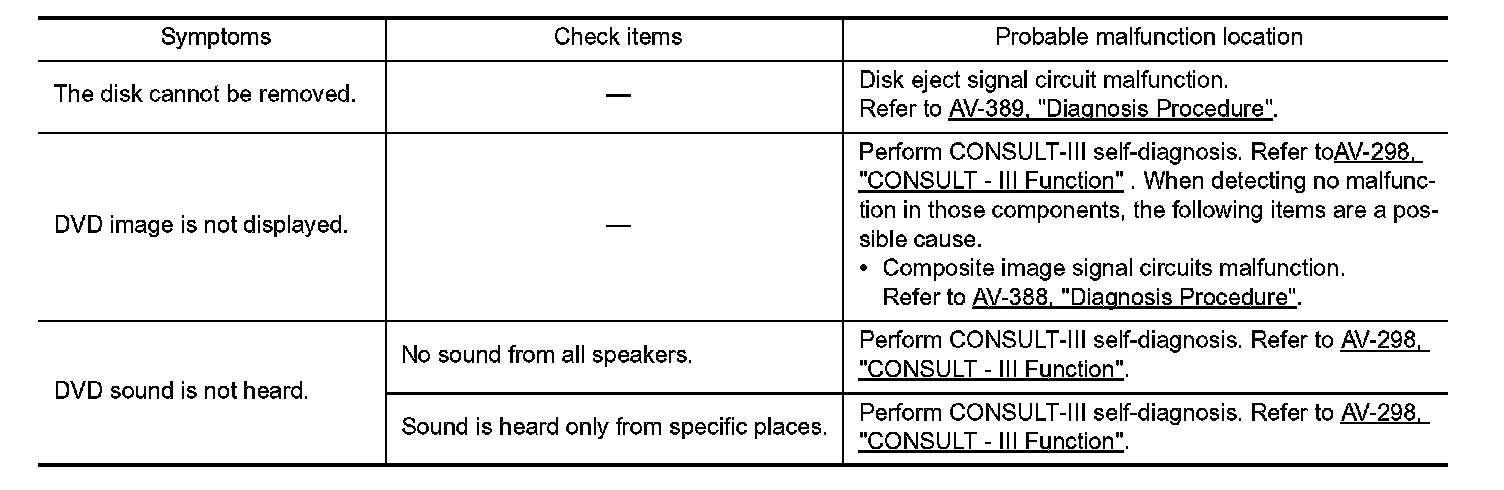

Symptom Table - Related To DVD Mode:
RELATED TO CAMERA
Trouble Diagnosis Chart by Symptom

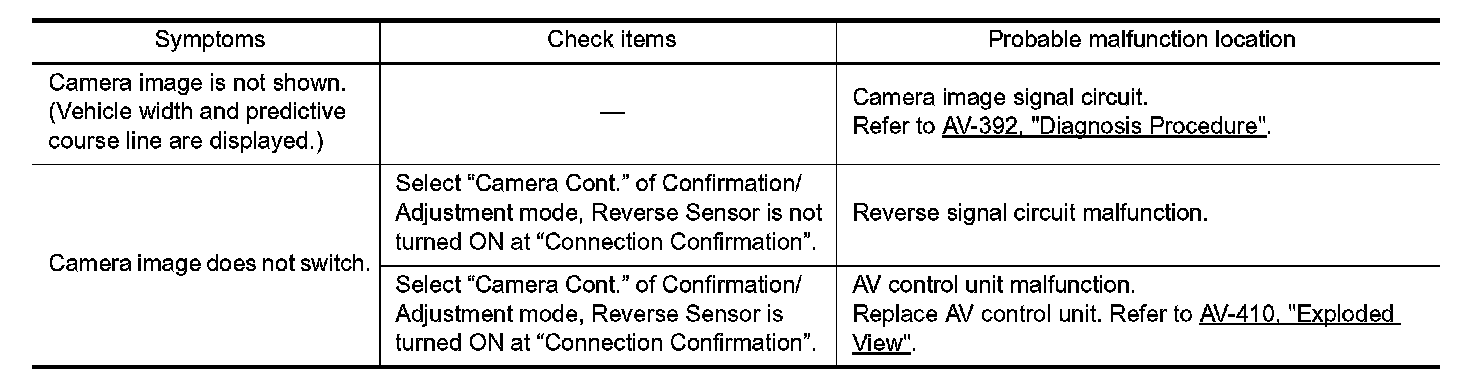

Symptom Table - Trouble Diagnosis Chart By Symptom:
RELATED TO USB
NOTE:
Check that there is no malfunction of USB equipment main body before performing a diagnosis.

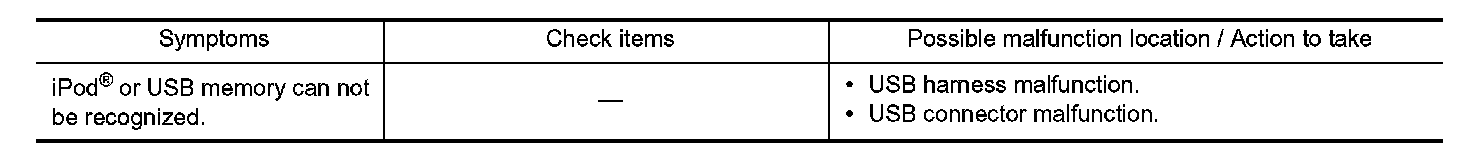

Symptom Table - Related To USB:

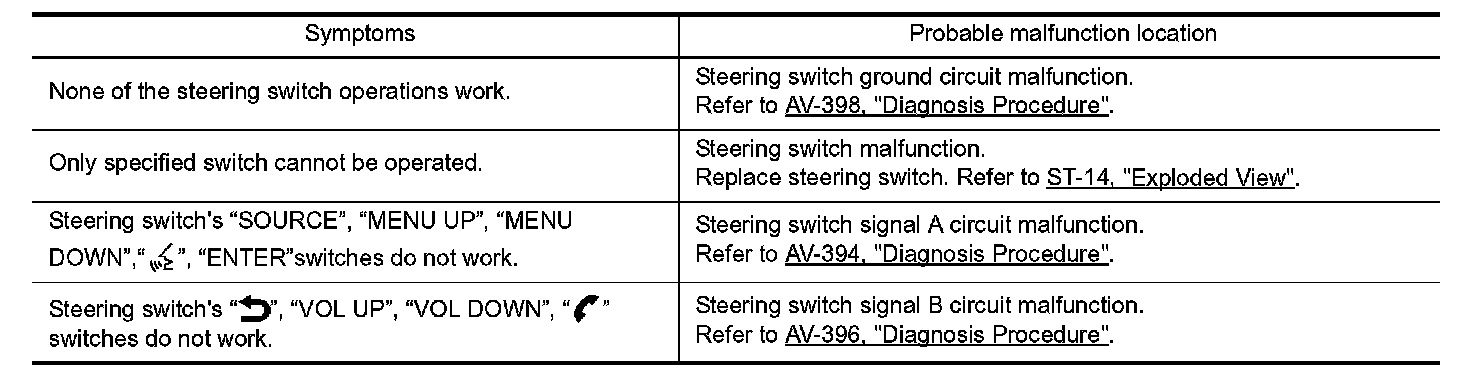

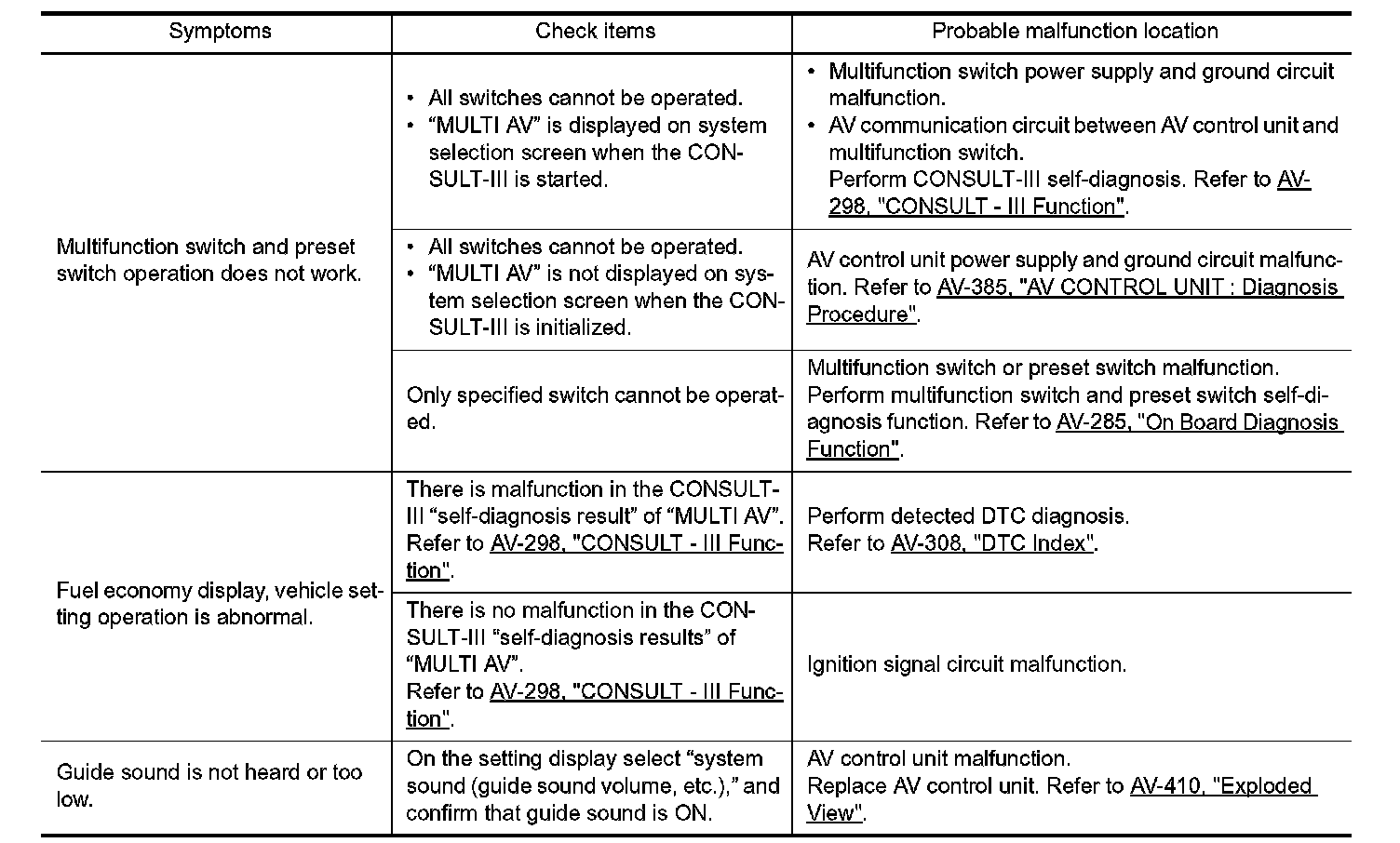

RELATED TO STEERING SWITCH
