Scan Tool Testing and Procedures

DIAGNOSIS SYSTEM (SONAR CONTROL UNIT)


CONSULT-III Function


DESCRIPTION

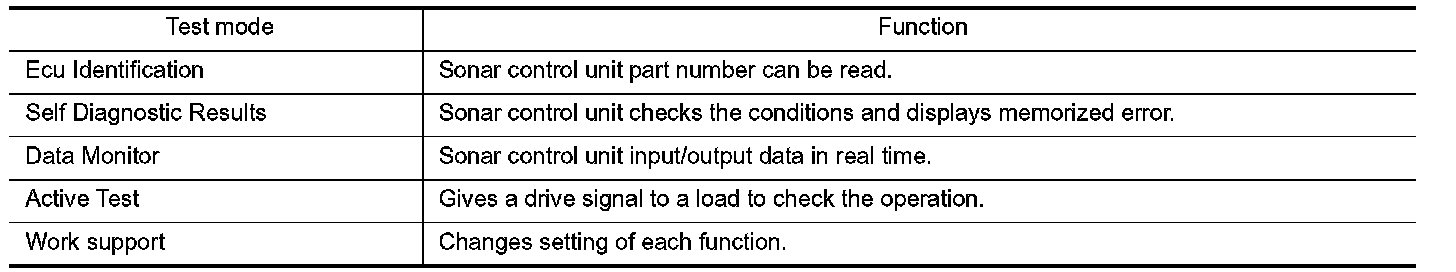

CONSULT-III can display each diagnostic item using the diagnostic test modes shown as follows:






ECU IDENTIFICATION
Displays the part number of the sonar control unit.

SELF-DIAGNOSTIC RESULTS
For details, Testing and Inspection.

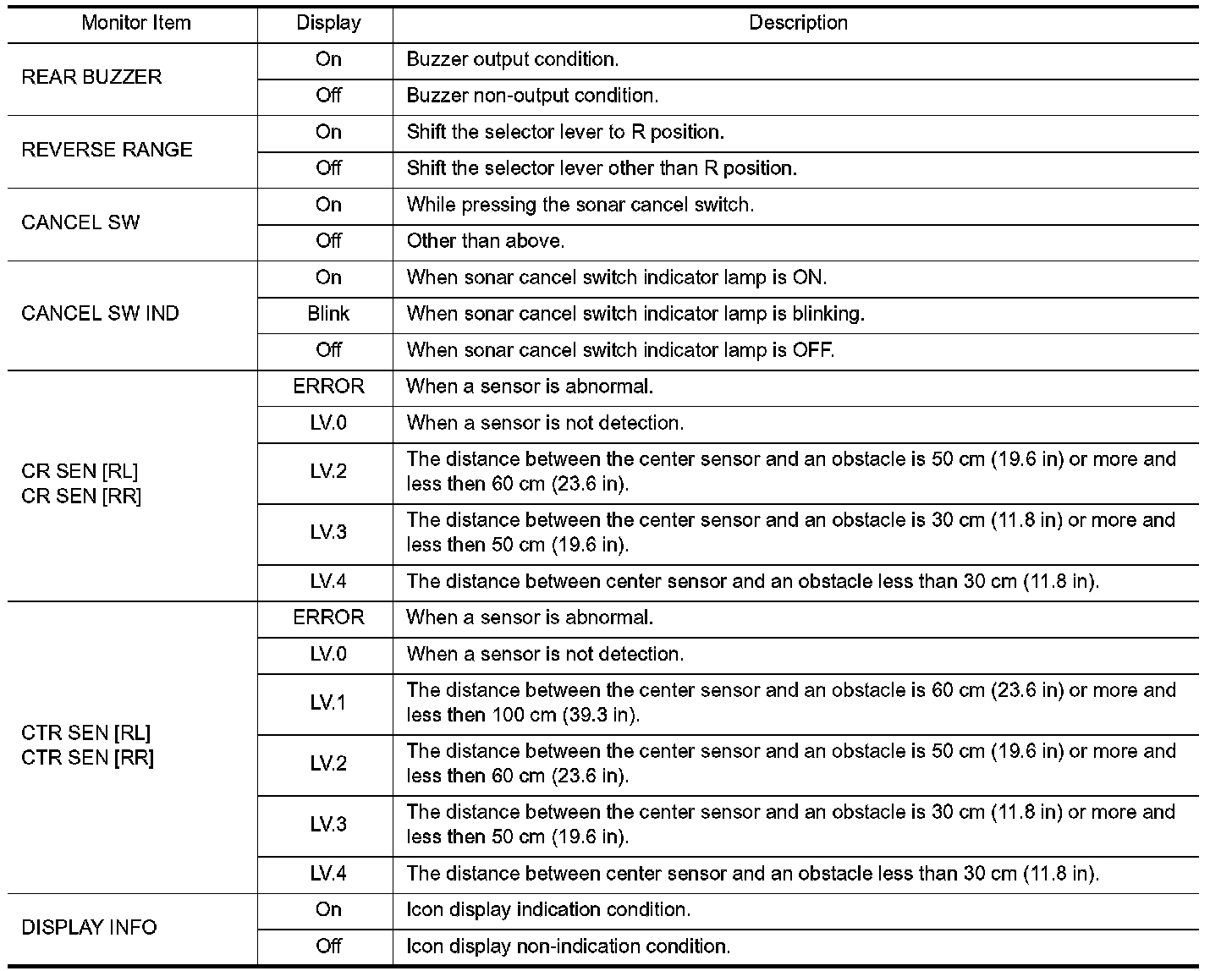

DATA MONITOR

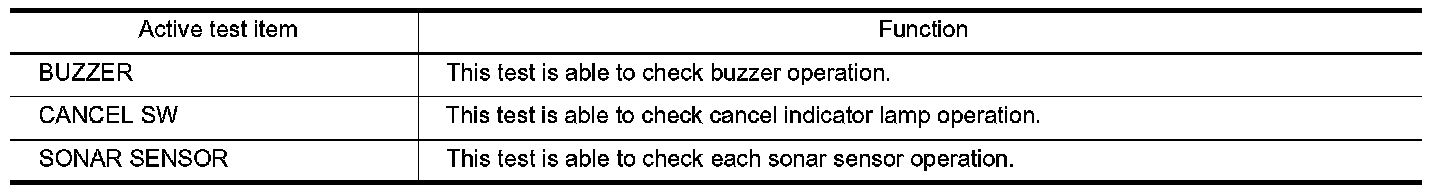

ACTIVE TEST

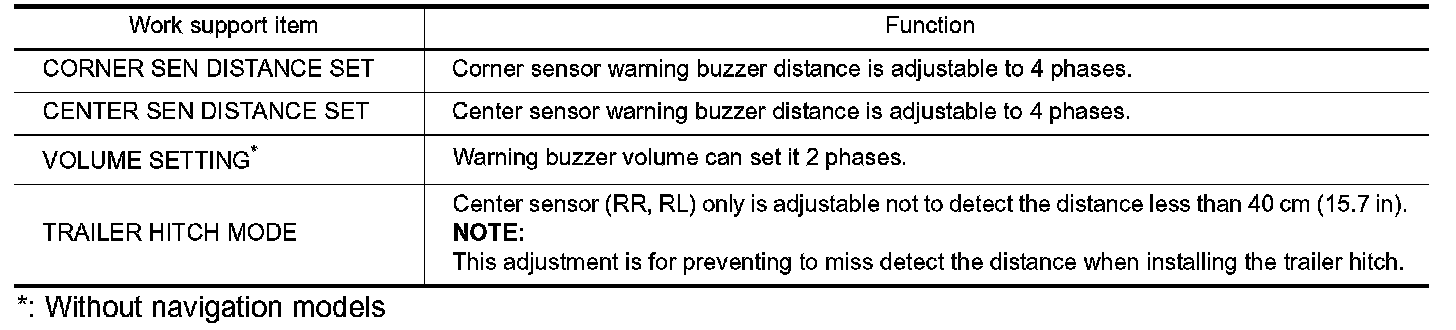

WORK SUPPORT






CORNER SEN DISTANCE SET

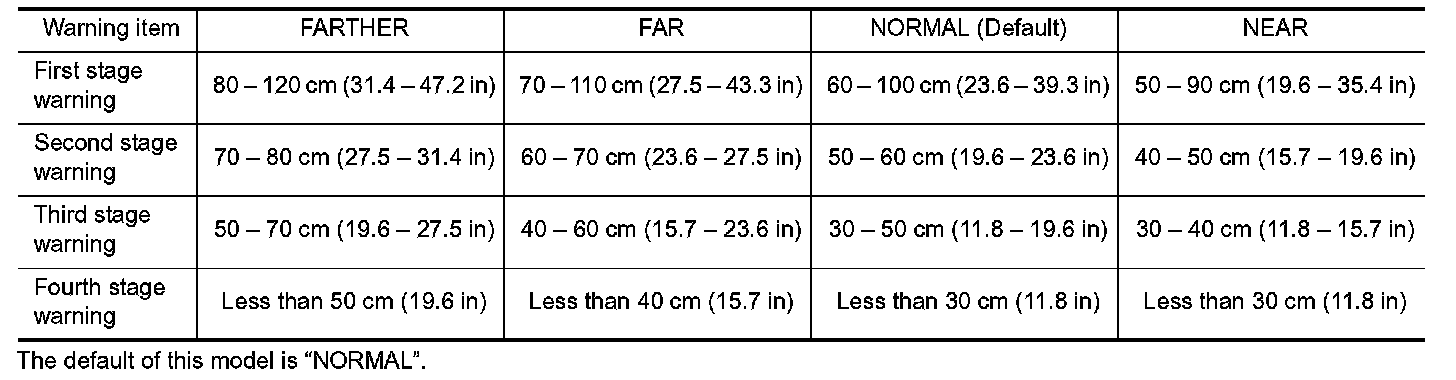

Corner sensor warning buzzer distance can set it to 4 phases as follows.






CENTER SEN DISTANCE SET

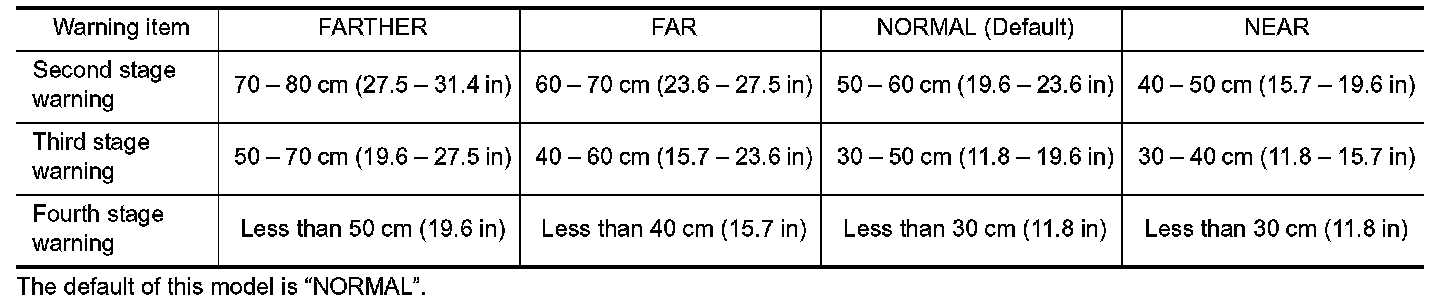

Center sensor warning buzzer distance can set it to 4 phases as follows.






VOLUME SETTING
Warning buzzer volume can set it to 2 phases.

TRAILER HITCH MODE
Center sensor (RR, RL) only is adjustable not to detect the distance less than 40 cm (15.7 in).

When installing the trailer hitch : ON
When not installing the trailer hitch : OFF
