CONSULT-III Function (BCM - Intelligent Key)





DIAGNOSIS SYSTEM (BCM)


INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)

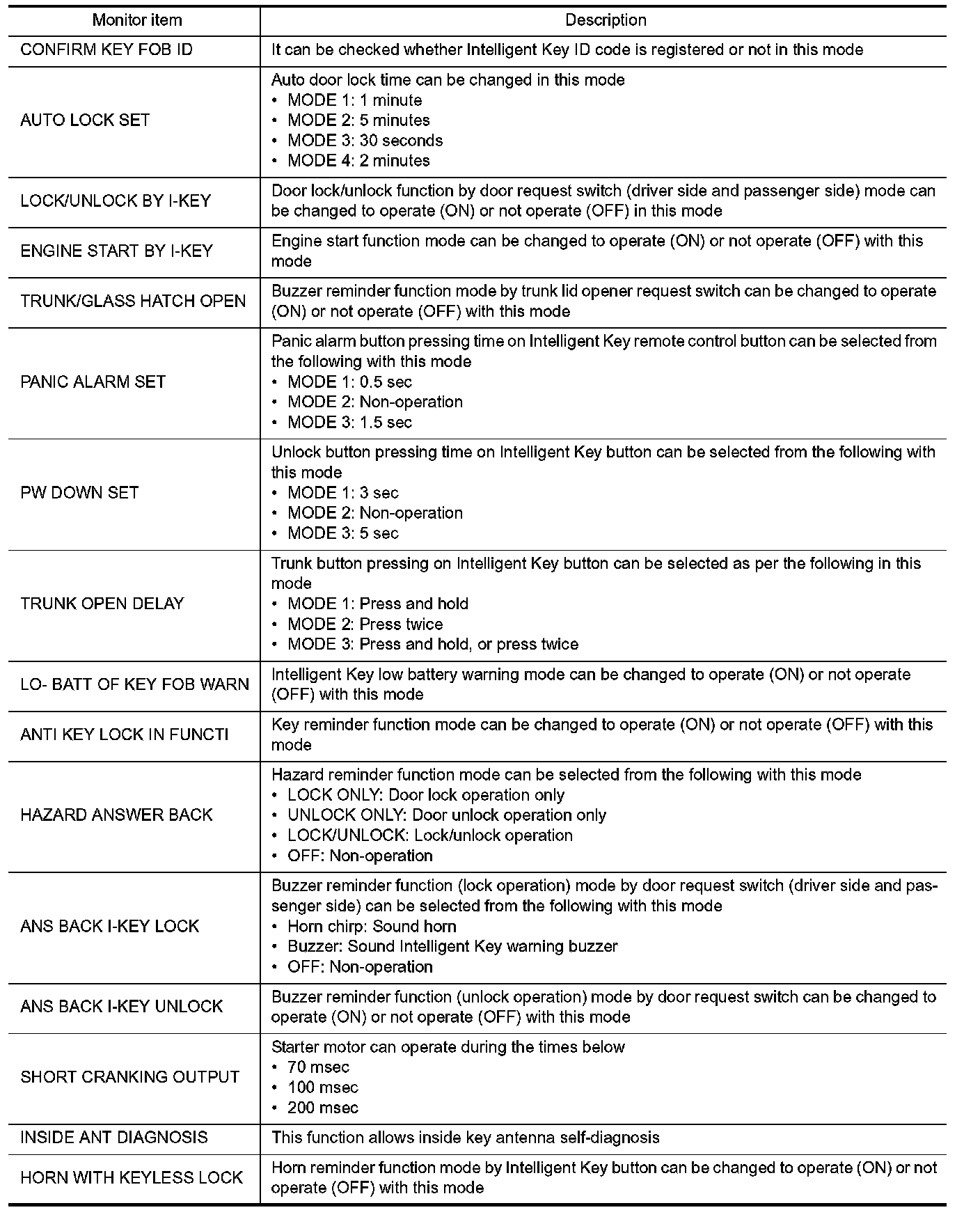

WORK SUPPORT






SELF-DIAG RESULT
Testing and Inspection.

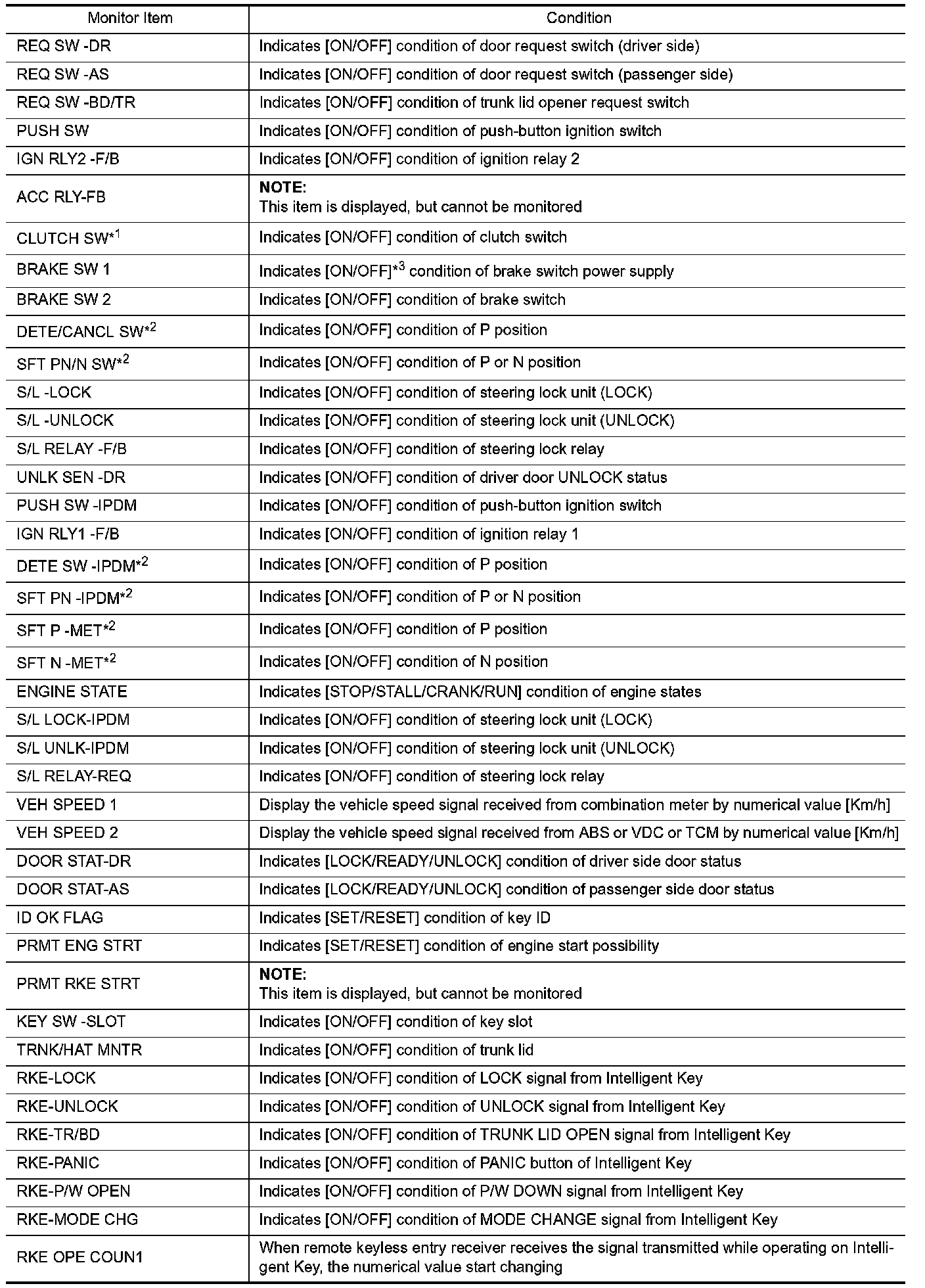

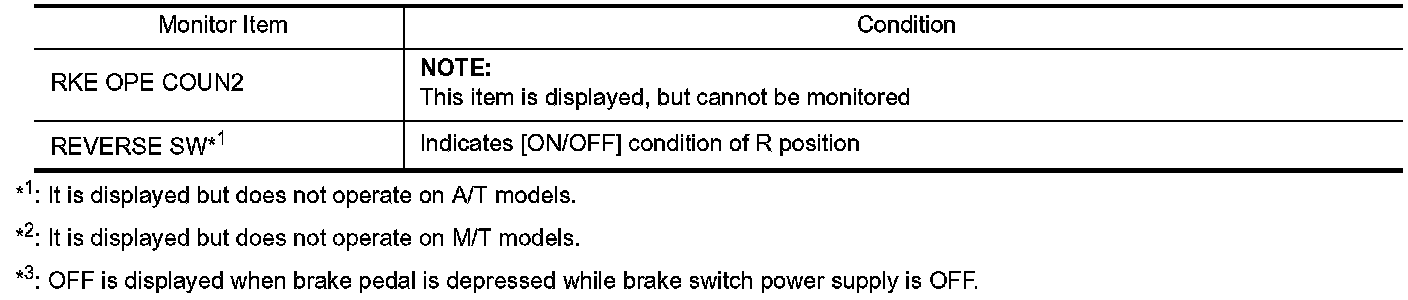

DATA MONITOR

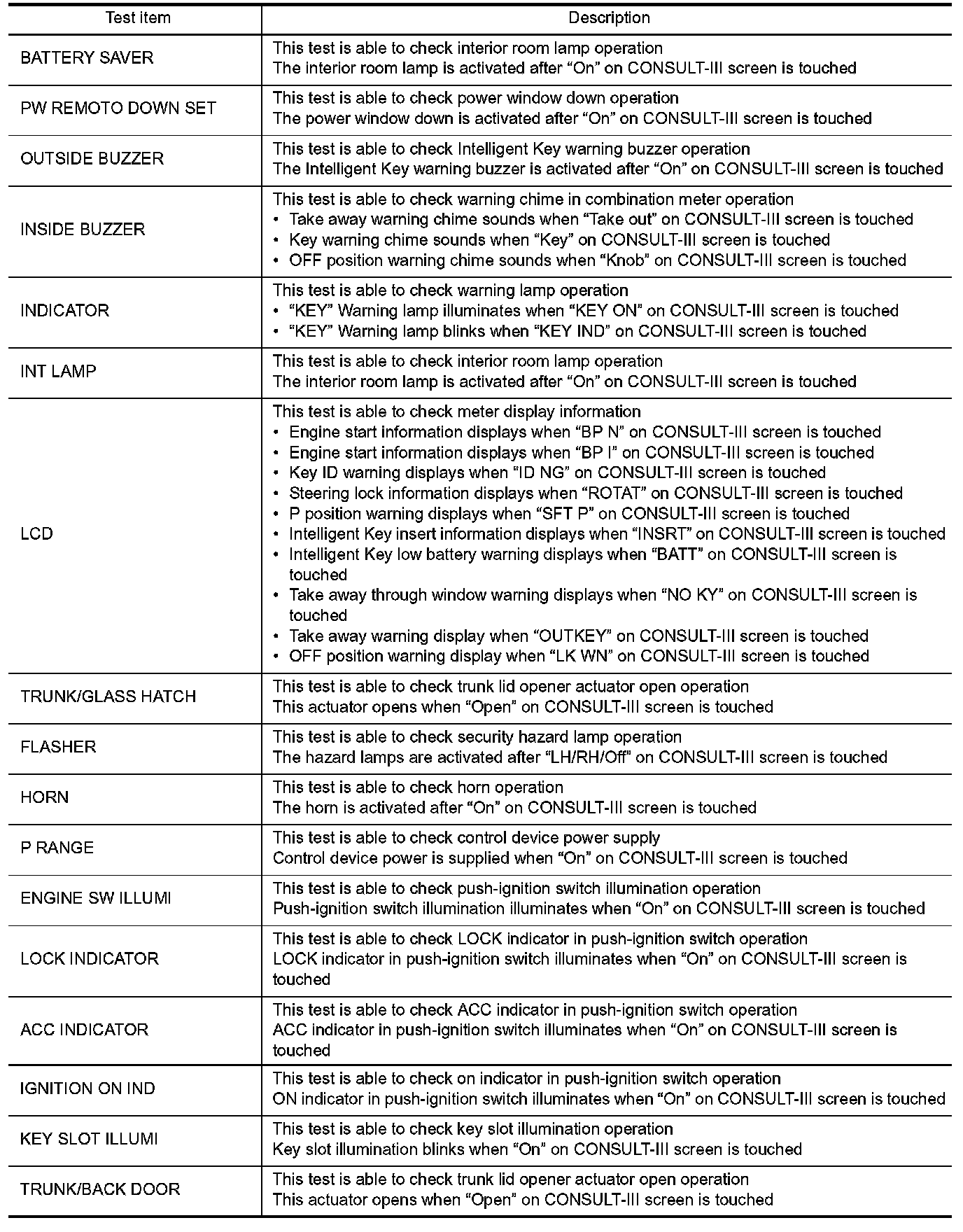

ACTIVE TEST
