With Navigation





ANTENNA BASE

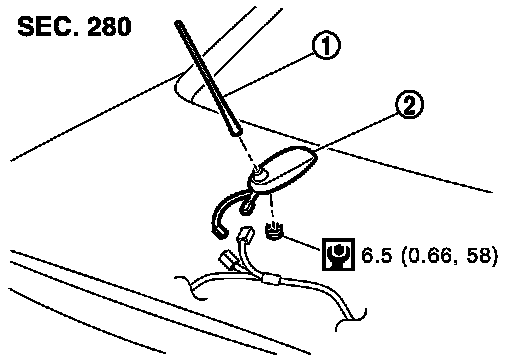

Exploded View







1. Antenna rod
2. Antenna base
Refer to GI-4, "Components" for symbols in the figure. Key to Symbols
