U1263

U1263 USB

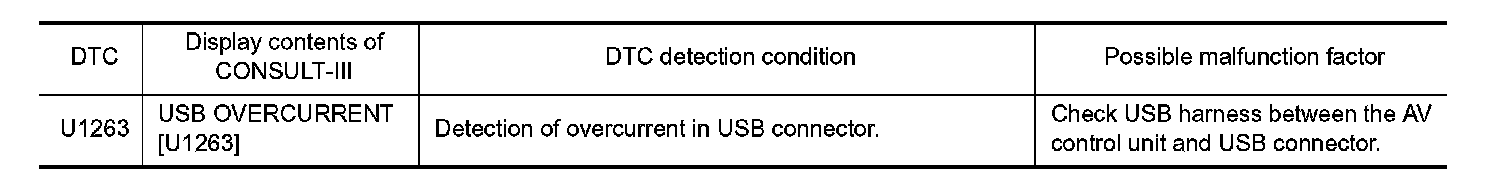

DTC Logic









Diagnosis Procedure
1.CHECK USB HARNESS
Visually check USB harness.
Is the inspection result normal?
YES - Replace AV control unit. With Navigation.
NO - Replace USB harness.
