C1716

C1716, C1717, C1718, C1719 TRANSMITTER





DTC Logic

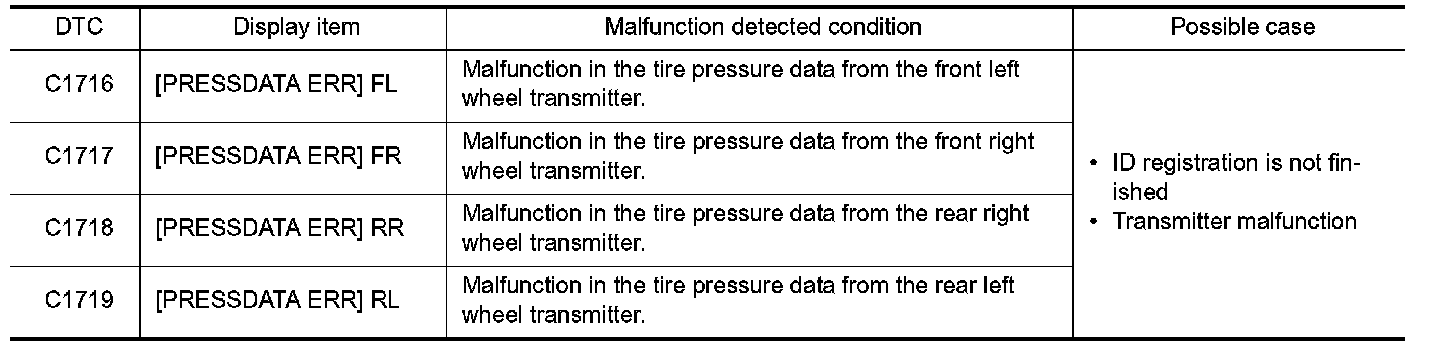

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.DTC REPRODUCTION PROCEDURE
With CONSULT-III
1. Turn the ignition switch ON.

CAUTION:
Never start the engine.
2. Check the tire pressure for all wheels and adjust to the specified value. Specifications.
3. Perform "SELF-DIAG RESULTS" in "AIR PRESSURE MONITOR" of "BCM".
Is DTC "C1716", "C1717", "C1718", "C1719" detected?
YES - Perform trouble diagnosis. C1716.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK TIRE PRESSURE
Check the internal pressure of all wheels. Specifications.
Is the inspection result normal?
YES - Replace the DTC-detected malfunctioning transmitter. Exploded View.
NO - After adjusting the tire pressure, GO TO 2.
2.CHECK TIRE PRESSURE SIGNAL
With CONSULT-III
1. Check and adjust the tire pressure for all wheels. Specifications.
2. Perform transmitter ID registration for all wheels. Special Repair Requirement.
3. Drive for 3 minutes at a speed of 40 km/h (25 MPH) or more, then drive normally for 10 minutes.
4. Perform "DATA MONITOR" in "AIR PRESSURE MONITOR" of "BCM".
5. Select "BCM" in "DATA MONITOR", and check that the tire pressures match the standard value.

CAUTION:
Stop the vehicle and within 15 minutes, use CONSULT-III "DATA MONITOR" to display the tire pressure for all wheels.
6. Check that "DATA MONITOR" displays tire pressure of 438.60 kPa (4.47 kg/cm2, 63.60 Psi).
Is the inspection 438.60 kPa (4.47 kg/cm , 63.60 Psi)?
YES - Replace transmitter the tire pressure 438.60 kPa (4.47 kg/cm2, 63.60 Psi) displayed. Exploded View.
NO - GO TO 1.




Special Repair Requirement
1.CHECK TIRE AIR PRESSURE
Check all tire air pressures. Specifications.
Does all tire pressure data meet the specification?
YES - GO TO 2.
NO - Inspect or repair the tires or wheels and adjust the tire pressure to the specification.
2.PERFORM ID REGISTRATION
Perform ID registration. Special Repair Requirement.
- END
