B2707

B2707 SENSOR HARNESS OPEN [CR-RR]

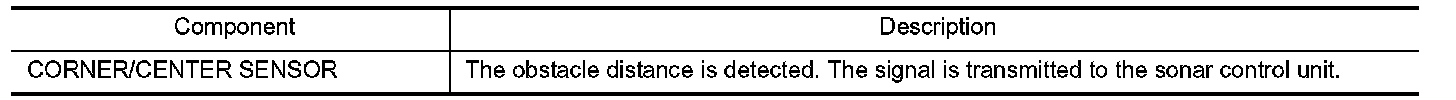

Description









DTC Logic

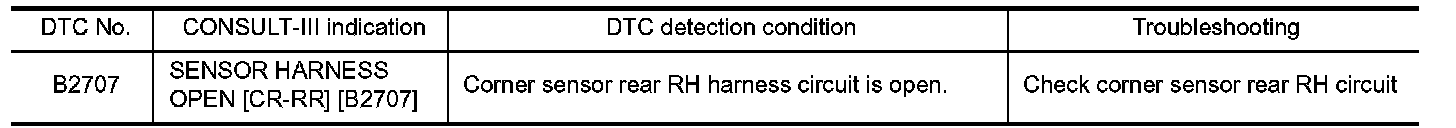

DTC DETECTION LOGIC









Diagnosis Procedure
1.CHECK HARNESS CORNER SENSOR REAR RH SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect sonar control unit connector and corner sensor rear RH connector.

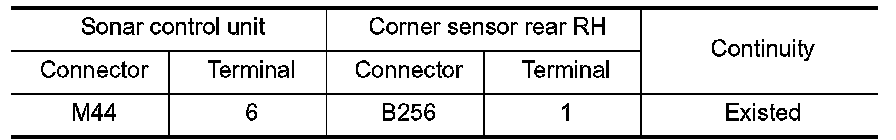

3. Check continuity between sonar control unit harness connector and corner sensor rear RH harness connector.

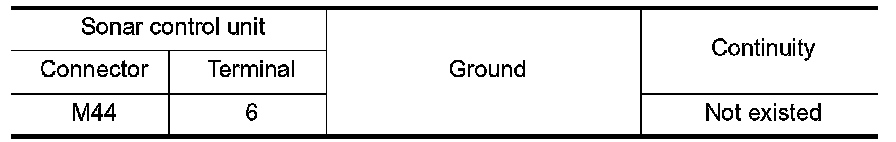

4. Check continuity between sonar control unit harness connector and ground.





Is the inspection result normal?
YES - GO TO 2.
NO - Repair harness or connector.
2.CHECK HARNESS CORNER SENSOR REAR RH GROUND CIRCUIT

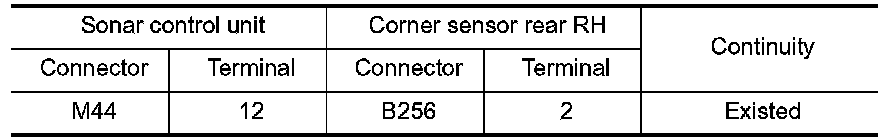

Check continuity between sonar control unit harness connector and corner sensor rear RH harness connector.





Is the inspection result normal?
YES - INSPECTION END
NO - Repair harness or connector.
