B261E

B261E VEHICLE TYPE





Description
There are two types of vehicles.
- HEV
- Conventional

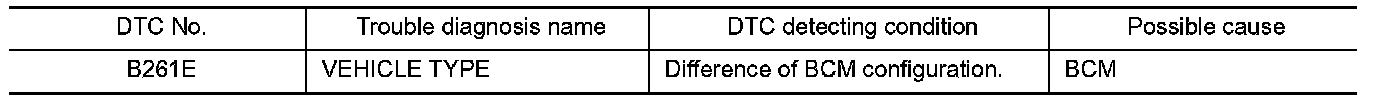

DTC Logic

DTC DETECTION LOGIC

NOTE:
- If DTC B261E is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. BCS.
- If DTC B261E is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. BCS.






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON under the following conditions.

A/T models
- Selector lever is in the P or N position
- Do not depress brake pedal

M/T models
- Do not depress clutch pedal
2. Check "Self-diagnosis result" using CONSULT-III.
Is DTC detected?
YES - Go to B261E.
NO - INSPECTION END




Diagnosis Procedure
1.INSPECTION START
1. Turn ignition switch ON.
2. Check "Self-diagnosis result" using CONSULT-III.
3. Touch "ERASE".
4. Perform DTC Confirmation Procedure.
See B261E.
Is the 1st trip DTC B261E displayed again?
YES - Replace BCM. Removal and Installation.
NO - INSPECTION END
