B2562

B2562 LOW VOLTAGE





DTC Logic

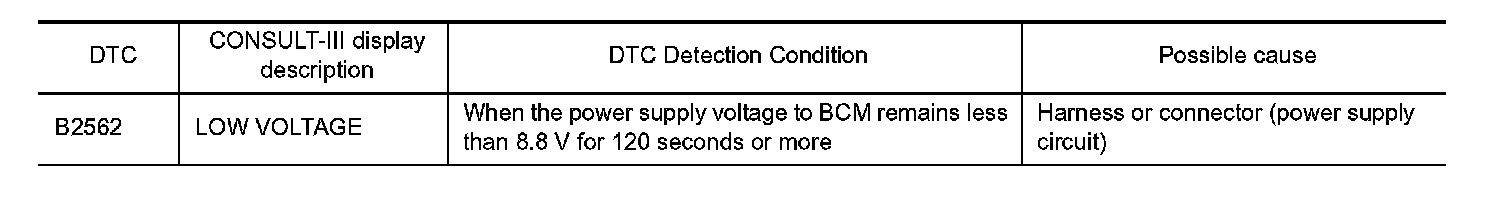

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.DTC CONFIRMATION
1. Erase DTC.
2. Turn ignition switch OFF.
3. Perform the "Self Diagnostic Result" of CONSULT-III, when passed 120 seconds or more after the ignition switch is turned ON.
Is any DTC detected?
YES - B2562.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK POWER SUPPLY CIRCUIT
Check BCM power supply circuit. Power Supply and Ground Circuit.
Is the circuit normal?
YES - Replace BCM. Exploded View.
NO - Repair the malfunctioning part.
