B1702

B1702 RETRACTABLE HARD TOP CONTROL UNIT

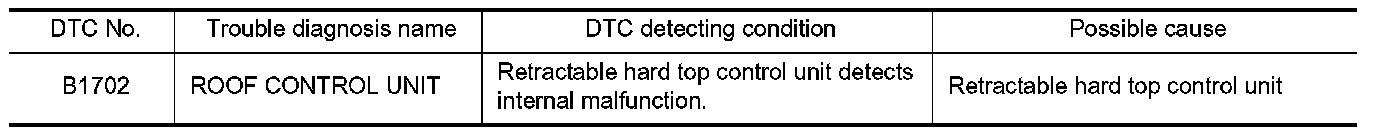

DTC Logic

DTC DETECTION LOGIC

NOTE:
If two or more DTCs are detected, Roof Control System, and determine trouble diagnosis order.






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Check "Self-Diagnostic Result" of "RETRACTABLE HARD TOP" using CONSULT-III.
Is DTC detected?
YES - B1702.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK SELF DIAGNOSTIC RESULT
1. Turn ignition switch OFF.
2. Replace retractable hard top control unit. Service and Repair.
3. Perform DTC Confirmation Procedure. B1702.
- INSPECTION END
