Diagnosis Procedure

POWER WINDOW SERIAL LINK


POWER WINDOW SUB-SWITCH : Diagnosis Procedure

1.CHECK POWER WINDOW SWITCH OUTPUT SIGNAL
1. Turn ignition switch ON.

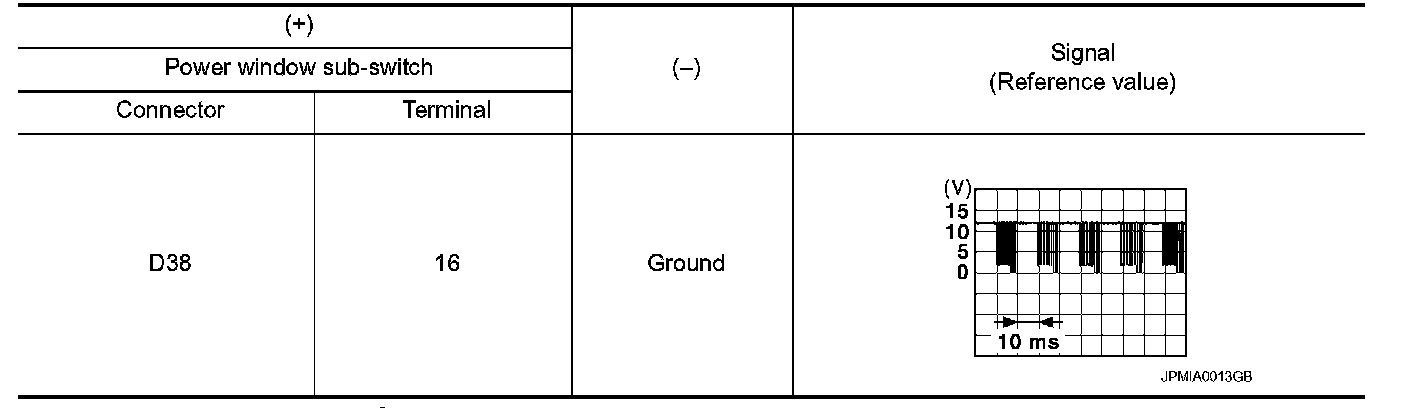

2. Check signal between power window sub-switch harness connector and ground.





Is the inspection result normal?
YES - Replace power window sub-switch. Refer to Service and Repair.
NO - GO TO 2.
2.CHECK POWER WINDOW SERIAL LINK SIGNAL
1. Turn ignition switch OFF.
2. Disconnect power window sub-switch connector.
3. Turn ignition switch ON.

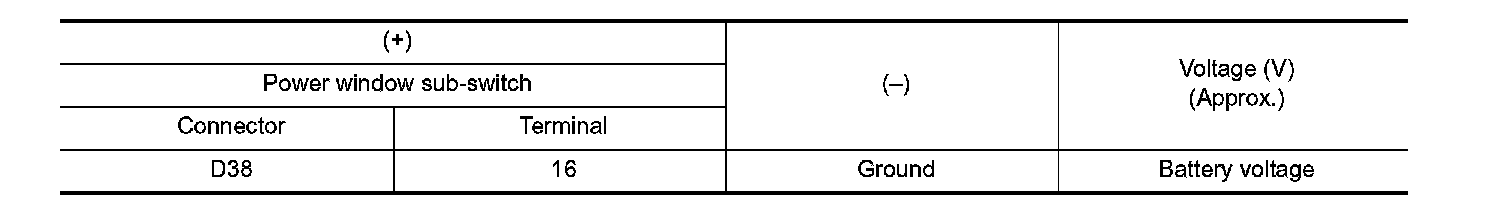

4. Check voltage between power window sub-switch harness connector and ground.





Is the inspection result normal?
YES - Replace power window main switch. Refer to Service and Repair.
NO - GO TO 3.
3.CHECK POWER WINDOW SERIAL LINK CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and power window sub-switch connector.

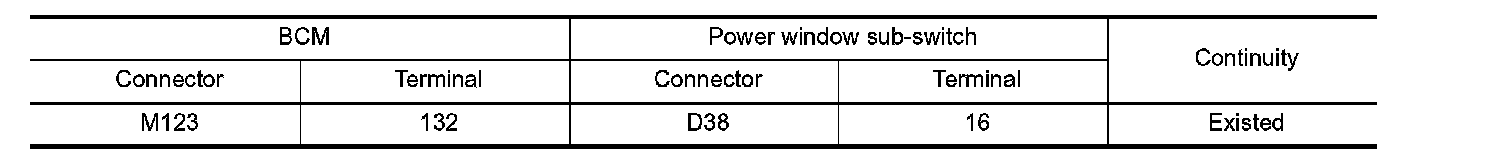

3. Check continuity between BCM connector and power window sub-switch connector.

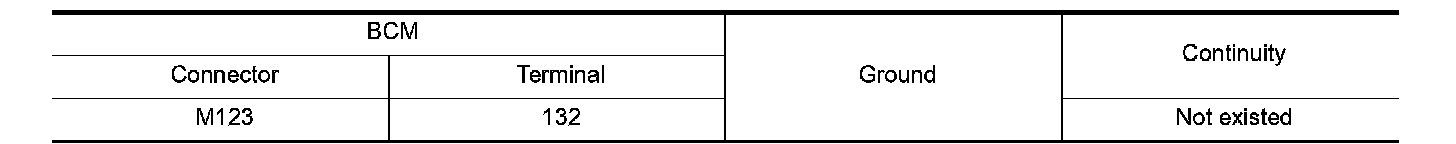

4. Check continuity between BCM connector and ground.





Is the inspection result normal?
YES - Replace BCM. Refer to Exploded View.
NO - Repair or replace harness.
