Component Inspection

POWER WINDOW MOTOR


DRIVER SIDE : Component Inspection


COMPONENT INSPECTION
1.CHECK DRIVER SIDE POWER WINDOW MOTOR
1. Turn ignition switch OFF.
2. Disconnect driver side power window motor connector.

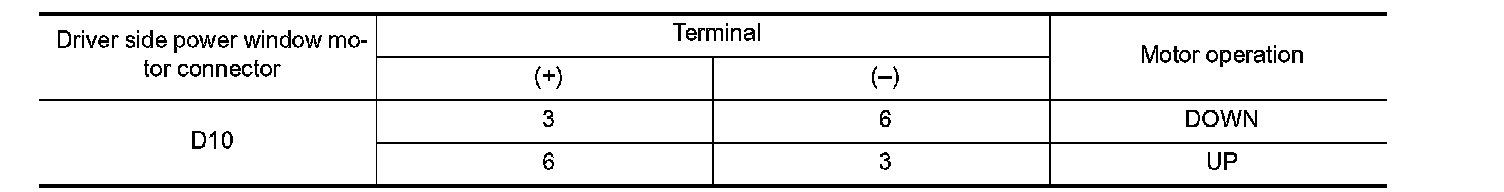

3. Check motor operation by connecting the battery voltage directly to driver side power window motor connector.





Is the inspection result normal?
YES - Driver side power window motor is OK.
NO - Replace driver side power window motor. Refer to Service and Repair.
