Diagnosis Procedure

SELECTOR LEVER POSITION INDICATOR


Description

Indicates selector lever position.



SELECTOR LEVER POSITION INDICATOR


Diagnosis Procedure

1.CHECK MALFUNCTIONING ITEM
Which item is abnormal?
Position indicator lamp - GO TO 2.
Illumination lamp - GO TO 10.

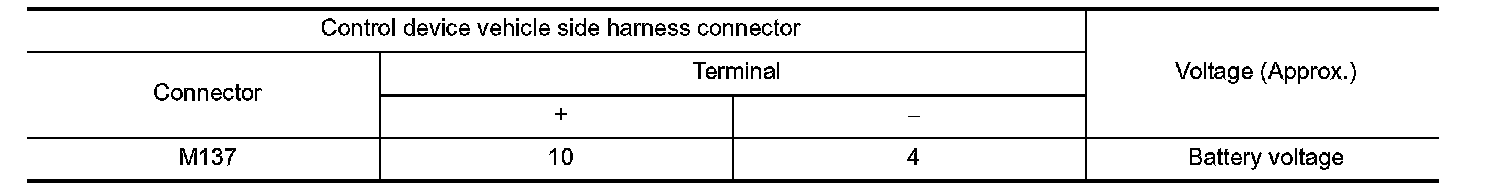

2.CHECK POWER SOURCE
1. Turn ignition switch OFF.
2. Disconnect control device connector.
3. Turn ignition switch ON.
4. Check voltage between control device vehicle side harness connector terminals.





Is the inspection result normal?
YES - GO TO 7.
NO - GO TO 3.

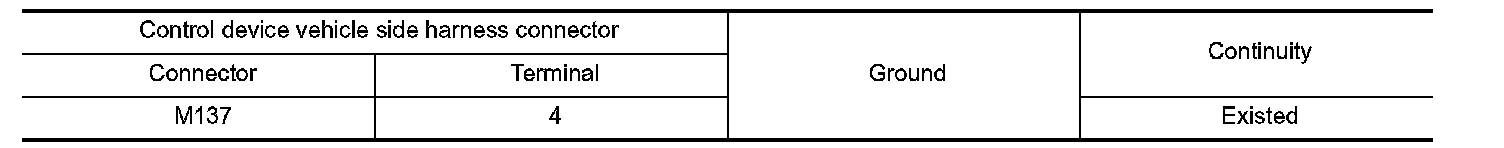

3.CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between control device vehicle side harness connector terminal and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace damaged parts.

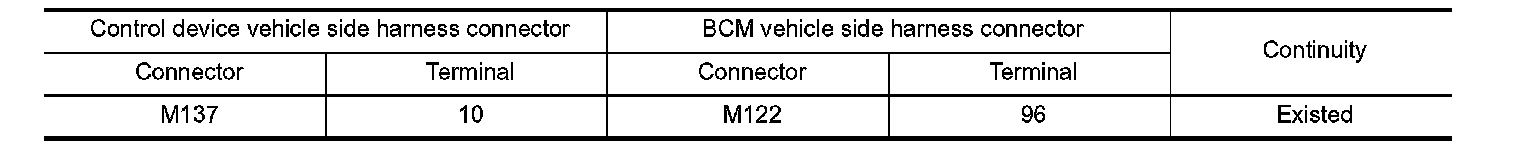

4.CHECK HARNESS BETWEEN CONTROL DEVICE AND BCM (PART 1)
1. Disconnect BCM connector.
2. Check continuity between control device vehicle side harness connector terminal and BCM vehicle side harness connector terminal.





Is the inspection result normal?
YES - GO TO 5.
NO - Repair or replace damaged parts.

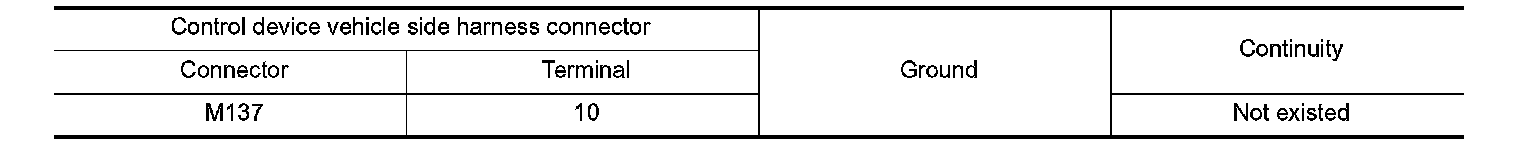

5.CHECK HARNESS BETWEEN CONTROL DEVICE AND BCM (PART 2)
Check continuity between control device vehicle side harness connector terminal and ground.





Is the inspection result normal?
YES - GO TO 6.
NO - Repair or replace damaged parts.
6.CHECK MALFUNCTIONING ITEM
Check the following.
- Check terminals of BCM connector and control device connector for damage.
- Check connector for loose connection.
Is the inspection result normal?
YES - Check BCM input/output signal. Refer to Pinout Values and Diagnostic Parameters.
NO - Repair or replace damaged parts.

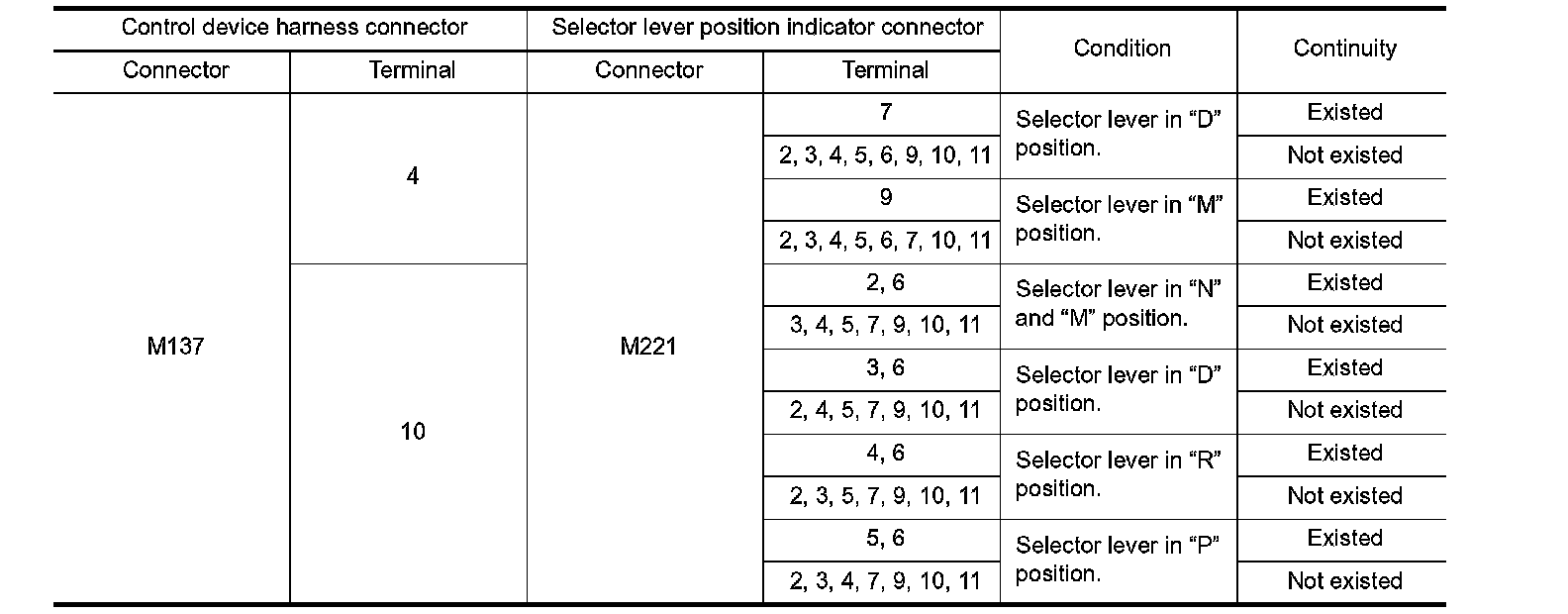

7.CHECK SHIFT POSITION SWITCH
1. Disconnect selector lever position indicator connector.
2. Check continuity between control device harness connector terminals and selector lever position indicator connector terminals.





Is the inspection result normal?
YES - GO TO 8.
NO - Repair or replace damaged parts. Refer to Exploded View (2WD), Exploded View (AWD).
8.CHECK SELECTOR LEVER POSITION INDICATOR
Check selector lever position indicator. Refer to Component Inspection (Selector Lever Position Indicator).
Is the inspection result normal?
YES - GO TO 9.
NO - Replace damaged parts.
9.CHECK MALFUNCTIONING ITEM
Check the following.
- Check terminals of control device connector, shift position switch connector and selector lever position indicator connector for damage.
- Check connector for loose connection.
Is the inspection result normal?
YES - Check intermittent incident. Refer to Intermittent Incident.
NO - Repair or replace damaged parts.

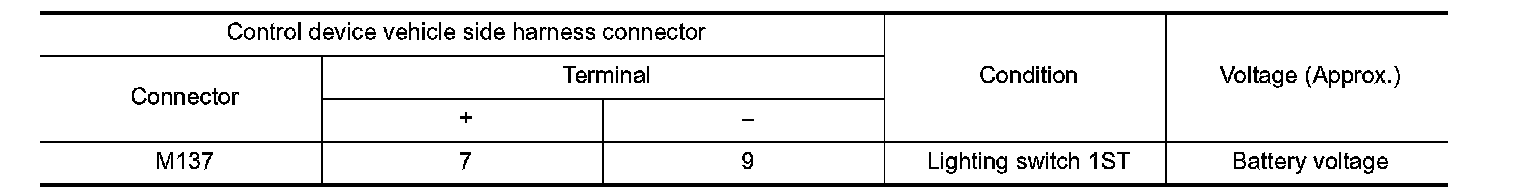

CHECK POWER SOURCE
1. Turn ignition switch OFF.
2. Disconnect control device connector.
3. Turn ignition switch ON.
4. Check voltage between control device vehicle side harness connector terminals.





Is the inspection result normal?
YES - GO TO 11.
NO - Check illumination circuit. Refer to Illumination.

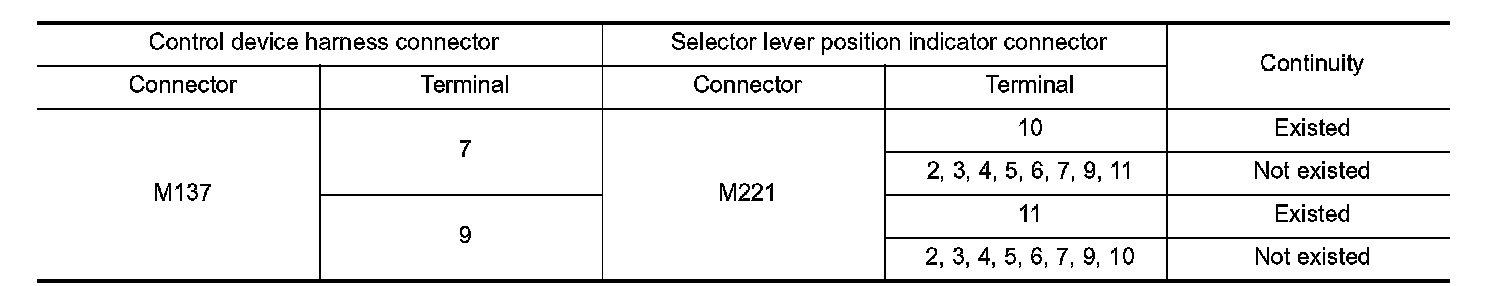

11.CHECK SHIFT POSITION SWITCH
1. Disconnect selector lever position indicator connector.
2. Check continuity between control device harness connector terminals and selector lever position indicator connector terminals.





Is the inspection result normal?
YES - GO TO 8.
NO - Repair or replace damaged parts. Refer to Exploded View (2WD), Exploded View (AWD).
