Disassembly

FRONT DRIVE SHAFT AND DRIVE CHAIN

Disassembly

1. Separate front case and rear case. Refer to Disassembly.
2. Remove drive chain and front drive shaft.

CAUTION:
Never use tools. Always remove by hand.

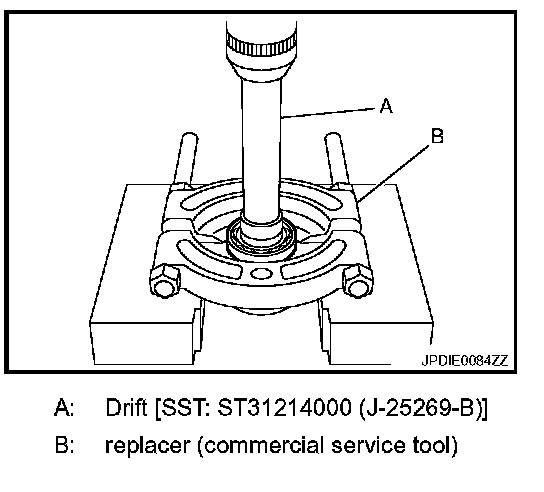

A: Drift [SST: ST31214000 (J-25269-B)]
B: replacer (commercial service tool)

3. Remove front drive shaft rear bearing with the drift (A) and replacer (B).

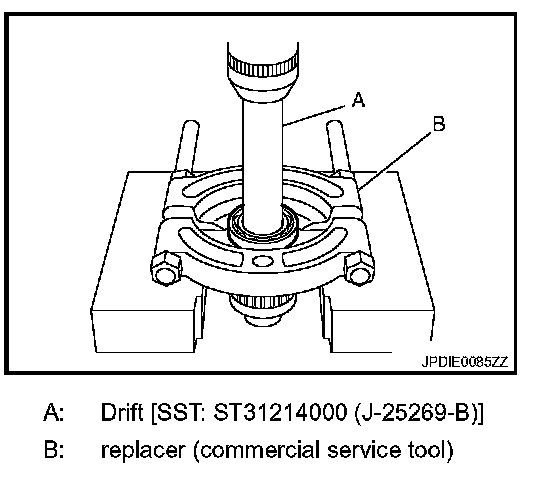

A: Drift [SST: ST31214000 (J-25269-B)]
B: replacer (commercial service tool)

4. Remove front drive shaft front bearing with the drift (A) and replacer (B).
5. Remove plug from front drive shaft.
