Disassembly

COUNTER SHAFT AND GEAR


Disassembly






1. Using a press to remove 3rd counter gear, 3rd outer baulk ring, 3rd synchronizer cone, 3rd inner baulk ring, 3rd-4th synchronizer hub assembly, 4th outer baulk ring, 4th synchronizer cone, 4th inner baulk ring, 4th counter gear, 4th needle bearing, 4th gear bushing, 4th counter gear thrust washer, and counter rear bearing inner race.
2. Remove 3rd needle bearing.
3. Remove 3rd-4th spread springs, 3rd-4th shifting inserts, and
3rd-4th coupling sleeve from 3rd-4th synchronizer hub.

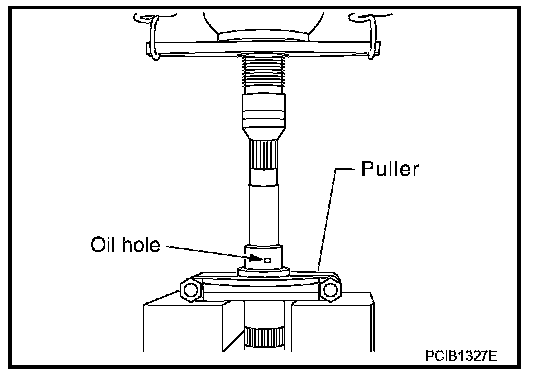

4. Using a press to remove 3rd gear bushing.

CAUTION:
Never use oil hole of 3rd gear bushing when press out.
