Rear Final Drive R200V

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

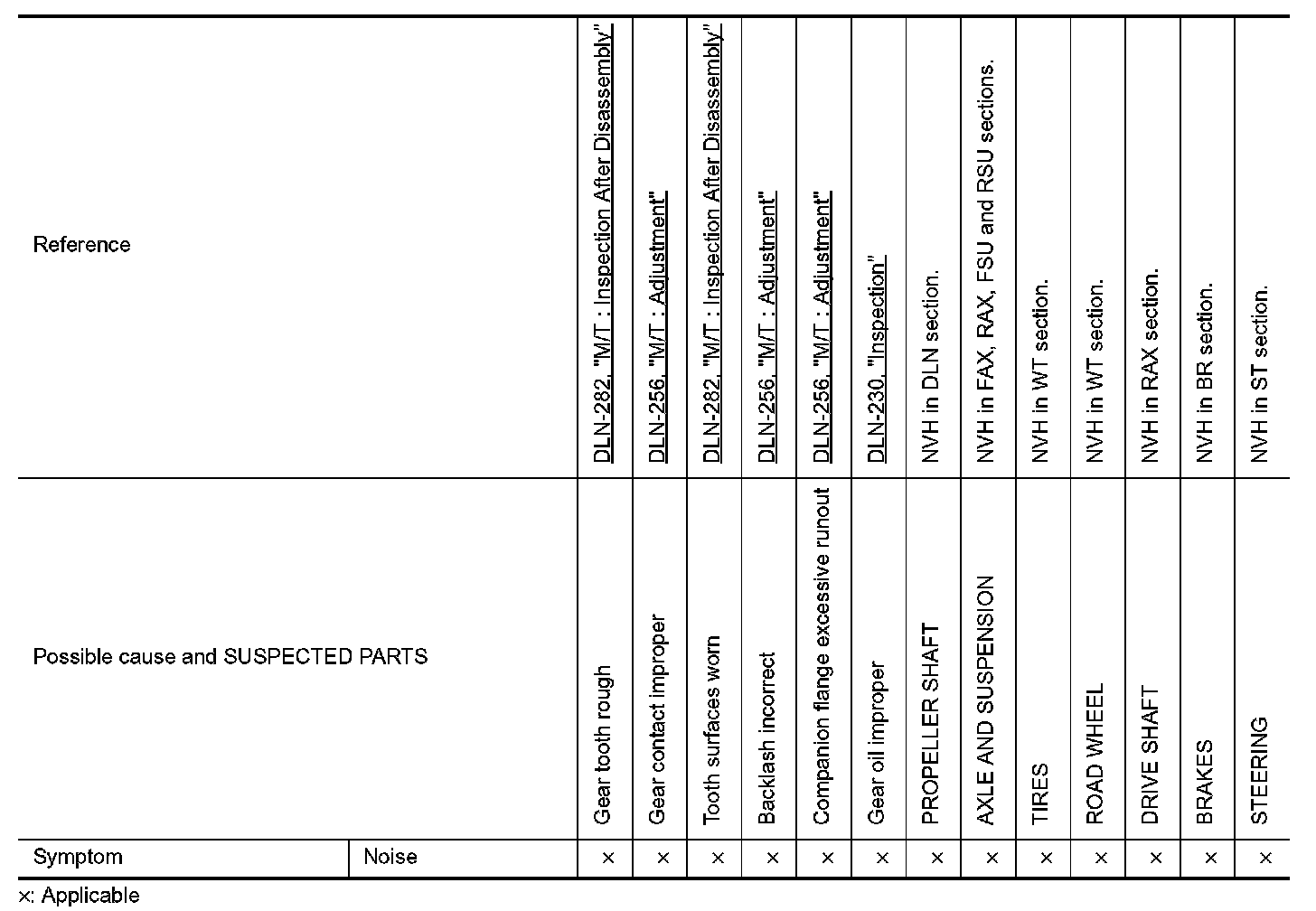

NVH Troubleshooting Chart


M/T MODELS
Use the chart below to find the cause of the symptom. If necessary, repair or replace these parts.






A/T MODELS
Use the chart below to find the cause of the symptom. If necessary, repair or replace these parts.
