Companion Flange Runout (M/T Models)

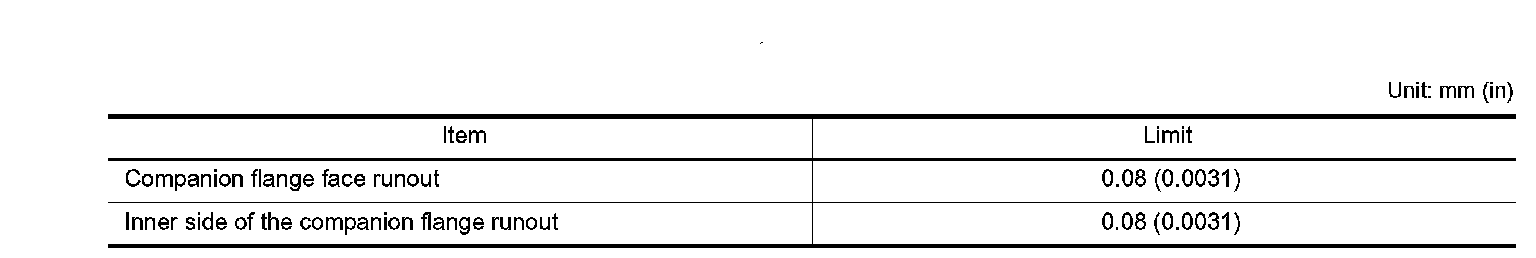

SERVICE DATA AND SPECIFICATIONS (SDS)


Companion flange Runout (M/T Models)
